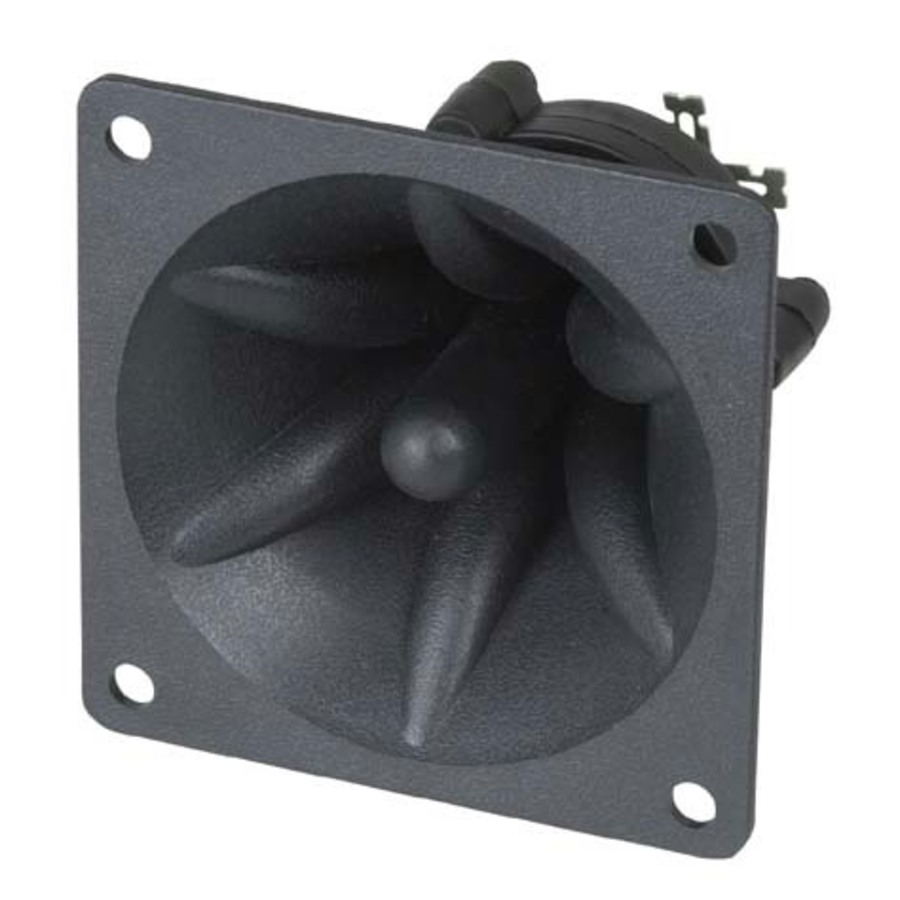

Piezo Horn Tweeter
Piezo Horn Tweeter

CAT. No. CT1930

Piezo Horn Tweeter
product image thumb

Piezo Horn Tweeter

$14.95
A long throw general application piezo tweeter.

Please call (02) 4782 6943

Description

2 Year Warranty

This unit is similar to the KSN1005. Does not require a crossover and is perfect for use for general PA applications where long throw is required.


    Specifications

    Speaker Specifications

    Nominal Impedance
    		 8?
    Mounting Hole Diameter (B)
    		 101mm
    RMS Power Rating
    		 100W
    Frequency Response
    		 1kHz-20kHz
    Side-to-Side Diameter (A)
    		 85mm
    Speaker Type
    		 Tweeter Driver
    Sensitivity (SPL@1W
    1m)
    Driver Channels
    		 Single Driver
    Cutout Diameter (C)
    		 75mm
    Insert Depth (D)
    		 70mm

    Product Dimensions

    Height
    		 101mm
    Width
    		 101mm
    Depth
    		 70mm

    Packaged Dimensions

    Packaged Length
    		 8.7cm
    Packaged Width
    		 8cm
    Packaged Weight
    		 0.08kg
    Packaged Volume
    		 0.61944l
    Packaged Height
    		 8.9cm

    Product Availability

    Availability
    		 Stocked item
    Warranty: 24 Months

    Downloads

    CT1930-dataSheetMain.pdf
