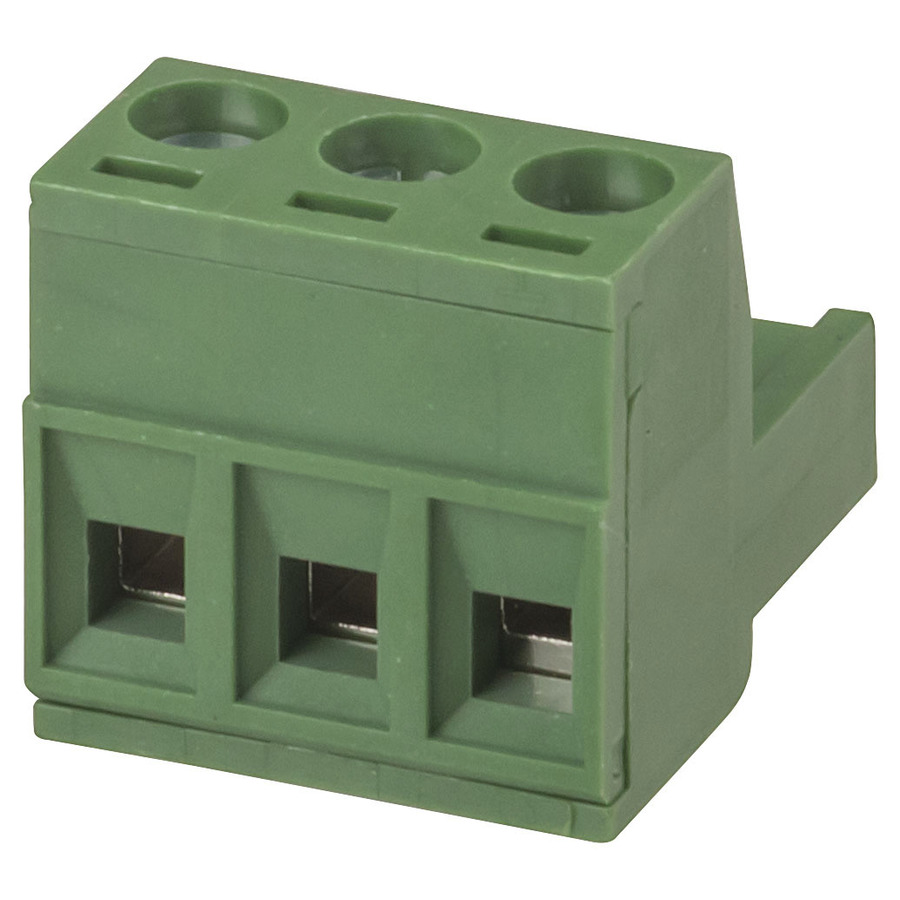

3 Pole PC Mount Pluggable Terminal Block Socket - 5.08mm
3 Pole PC Mount Pluggable Terminal Block Socket - 5.08mm

CAT. No. HM3123

3 Pole PC Mount Pluggable Terminal Block Socket - 5.08mm
product image thumb

3 Pole PC Mount Pluggable Terminal Block Socket - 5.08mm

$4.5
The plug version to suit the above headers - these terminal blocks are easily plugged in, and feature nickel- plated brass cage clamps, tin- plated ...

Please call (02) 4782 6943

Description

The plug version to suit the above headers - these terminal blocks are easily plugged in, and feature nickel- plated brass cage clamps, tin- plated phosphor- bronze contacts, M3 nickel- plated steel screws...
- POLES 3

    Specifications

    Header Connections

    Type
    		 Double Row Header
    Device
    		 Socket
    Pin Spacing
    		 5.08mm (0.2")
    Pack Quantity
    		 1pc
    Pin Size
    		 1mm
    Number of Pins
    		 3pc
    Pin Material
    		 Tin Plated Brass
    Insulation Dielectric Voltage Rating
    		 2000V
    Attachment Method
    		 Screw Terminals
    Insulation Resistance
    		 5000M?

    AC Voltage Rating

    AC Voltage rating
    		 300V

    AC Current Rating

    AC current rating
    		 12A

    Product Mounting

    Mounting Method
    		 Line

    Product Dimensions

    Width
    		 16.4mm

    Packaged Dimensions

    Packaged Length
    		 1.5cm
    Packaged Width
    		 1.5cm
    Packaged Weight
    		 0.0054kg
    Packaged Volume
    		 0.003825l
    Packaged Height
    		 1.7cm

    Product Availability

    Availability
    		 Stocked item
