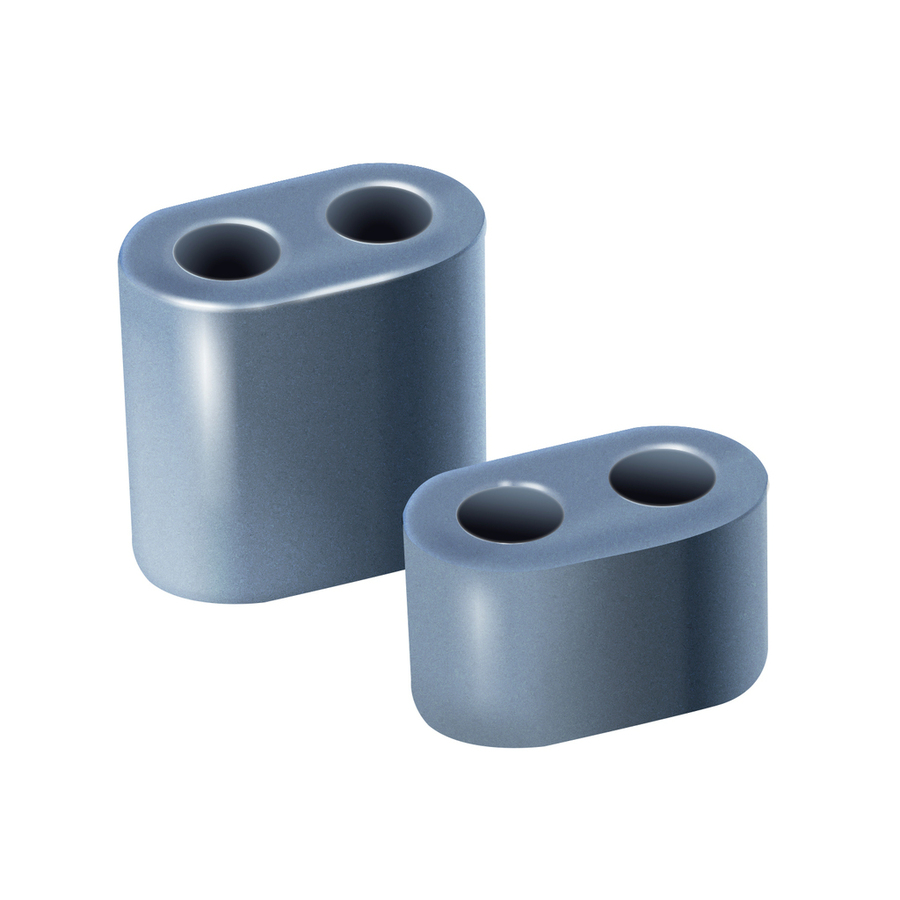

6mm Balun Core - Pk.2
6mm Balun Core - Pk.2

CAT. No. LF1222

6mm Balun Core - Pk.2
product image thumb

6mm Balun Core - Pk.2

$3.95
Generally used in VHF/UHF circuits for balanced or unbalanced line matching.

Please call (02) 4782 6943

Description

Generally used in VHF/UHF circuits for balanced or unbalanced line matching. Can also be used as a lossy choke, etc. Insertion Loss: 40- 220MHz 0.5dB >220MHz 1.0dB

    Specifications

    Product Dimensions

    Length
    		 13.2mm
    Height
    		 6mm
    Width
    		 7.4mm

    Packaged Dimensions

    Packaged Length
    		 11.2cm
    Packaged Width
    		 5.4cm
    Packaged Weight
    		 0.006kg
    Packaged Volume
    		 0.07258l
    Packaged Height
    		 1.2cm

    Ferrites

    Ferrite material
    		 M7

    Product Availability

    Availability
    		 Stocked item

    Downloads

    LF1222-dataSheetMain.pdf
