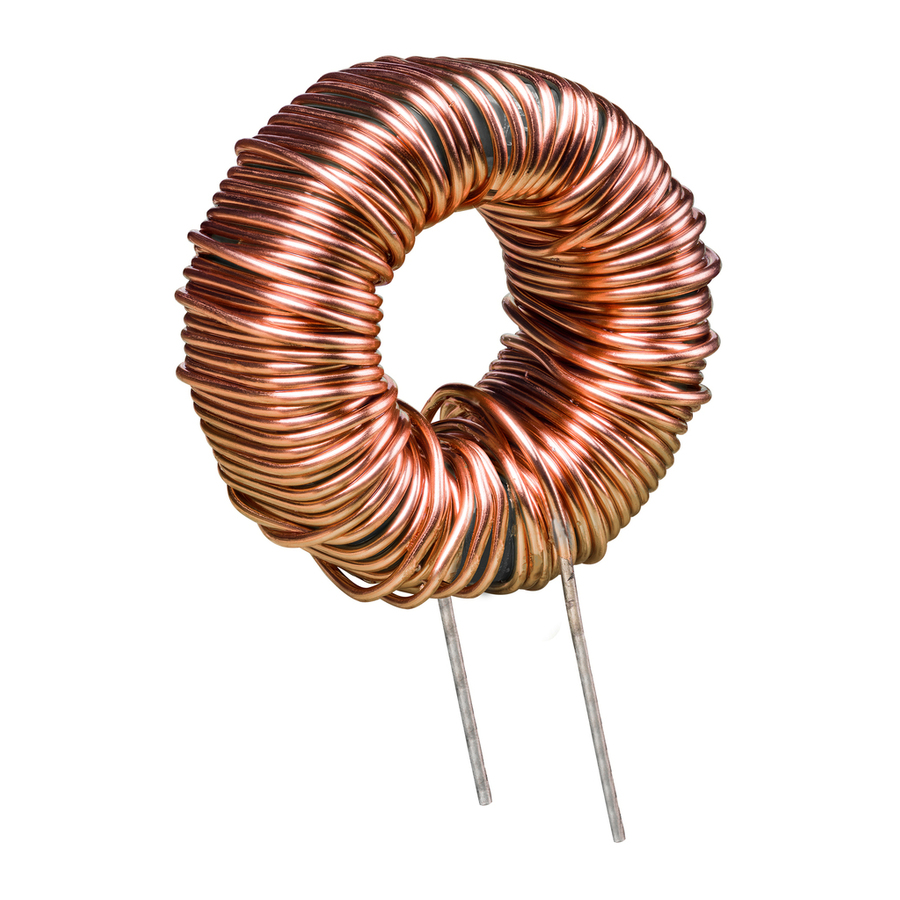

100uH 3A Prewound Ferrite Choke
100uH 3A Prewound Ferrite Choke

CAT. No. LF1272

100uH 3A Prewound Ferrite Choke
product image thumb

100uH 3A Prewound Ferrite Choke

$4.95
Ideal for all wideband choke applications. Highly effective against EMI/RFI entering equipment via the mains power lines. Powdered iron core.

Please call (02) 4782 6943

Description

Ideal for all wideband choke applications. Highly effective against EMI/RFI entering equipment via the mains power lines. Powdered iron core.

    Specifications

    Product Dimensions

    Height
    		 21mm
    Width
    		 10.5mm
    Diameter
    		 21mm

    Packaged Dimensions

    Packaged Length
    		 8cm
    Packaged Width
    		 5cm
    Packaged Weight
    		 0.011kg
    Packaged Volume
    		 0.04l
    Packaged Height
    		 1cm

    Chokes

    Inductance
    		 100µH
    Pitch
    		 10.5mm
    Rated resistance
    		 25m?
    DC current max
    		 3A

    Product Availability

    Availability
    		 Stocked item
