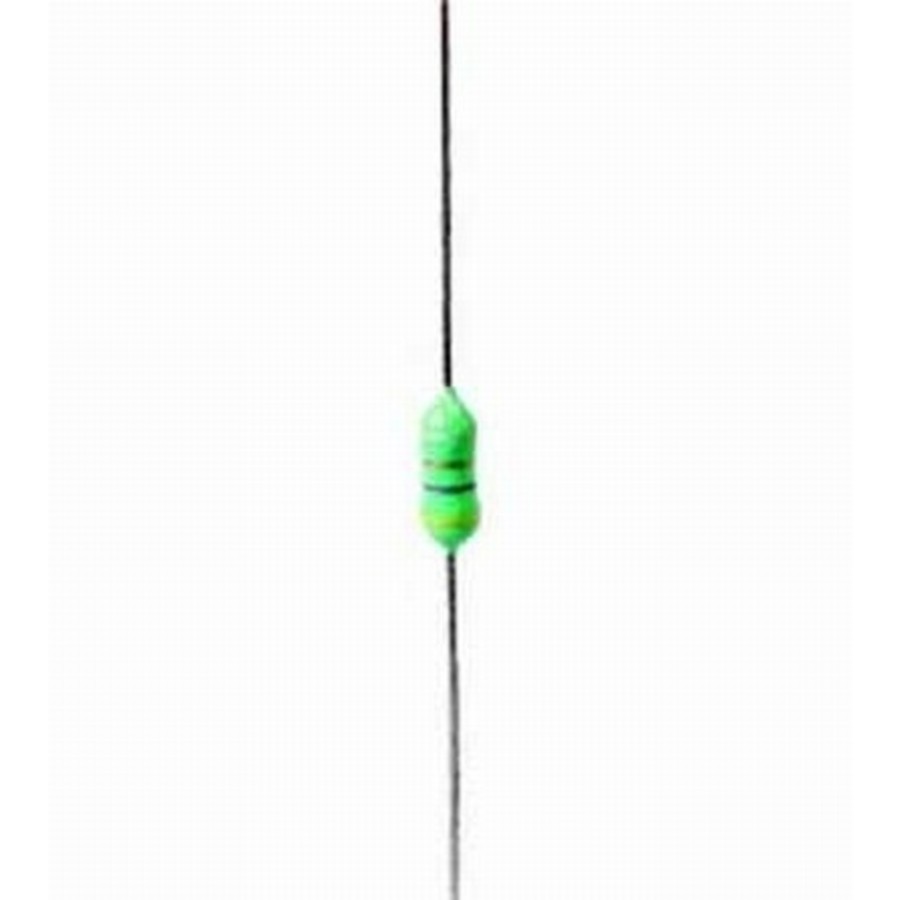

47uH RF Choke
47uH RF Choke

CAT. No. LF1530

47uH RF Choke
product image thumb

47uH RF Choke

$0.95
An RF choke is an inductor that blocks all High Frequency RF Signals and only allows DC Signals to pass through it.

Please call (02) 4782 6943

Description

Features:
- Colour coded
- Temperature rise 20°C
- Rated temperature rise -20°C to +80°C
- Dielectric withstanding voltage 250Vrms

Contact our wholesale dept. for excellent bulk quantity prices.

    Specifications

    Packaged Dimensions

    Packaged Length
    		 0.4cm
    Packaged Width
    		 0.4cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.00104l
    Packaged Height
    		 6.5cm

    Chokes

    Inductance
    		 47µH
    Inductance tolerance
    		 10%
    Rated resistance
    		 1.22?
    DC current max
    		 305mA

N/A
