15-30V, 30VA, 1A Multi-Tapped

$23.95

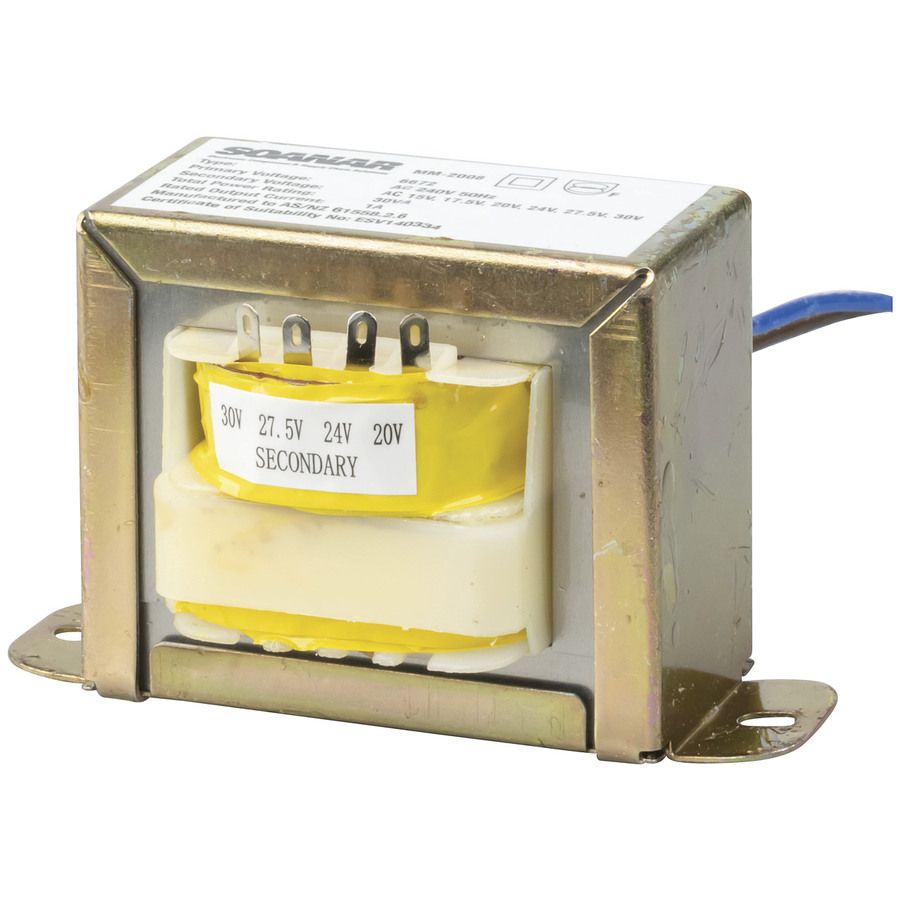

Versatile 30VA iron core mains transformer with multi-tap output 15V to 30V output Maximum current output of 1A

Please call (02) 4782 6943

Description

240V Mains Power

Traditional laminated iron core transformers suitable for new projects, hobby projects or as a  replacement in existing equipment. They have a thermal fuse built into the primary winding for added safety and a wide variety is available to suit your specific needs.

 • Primary Connection: 200mm Fly Leads
 • Conforms to AS/NZ 61558.2.6

    Specifications

    Transformers

    Type of Transformer
    		 Laminated Core
    Case Type
    		 6672

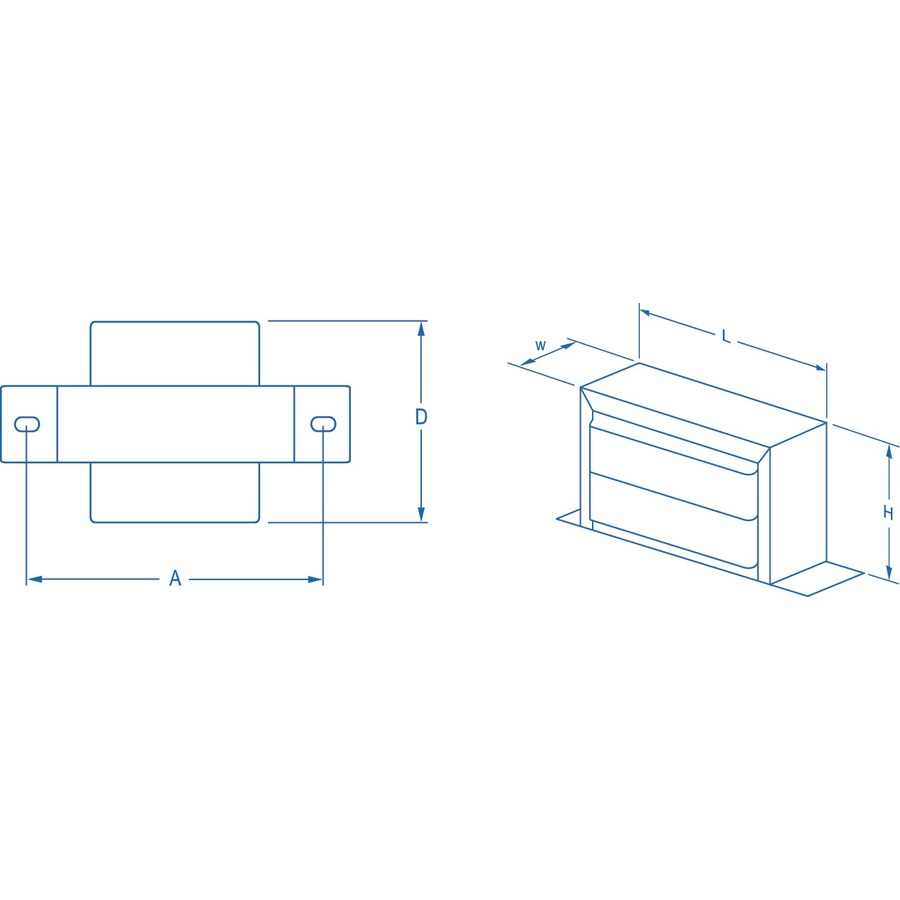

    Core Winding Depth (D)
    		 62mm
    Mount Spacing (A)
    		 85mm
    Primary Winding Connection
    		 Flyleads
    Case Height (H)
    		 59mm
    Temperature Rise Above Ambient at Rated Power
    		 60°C
    Case Length (L)
    		 69mm
    Magnetising Current
    		 40mA
    Core Material
    		 Laminated Iron
    Thermal Fuse
    Secondary Winding Connection
    		 Solder Tags

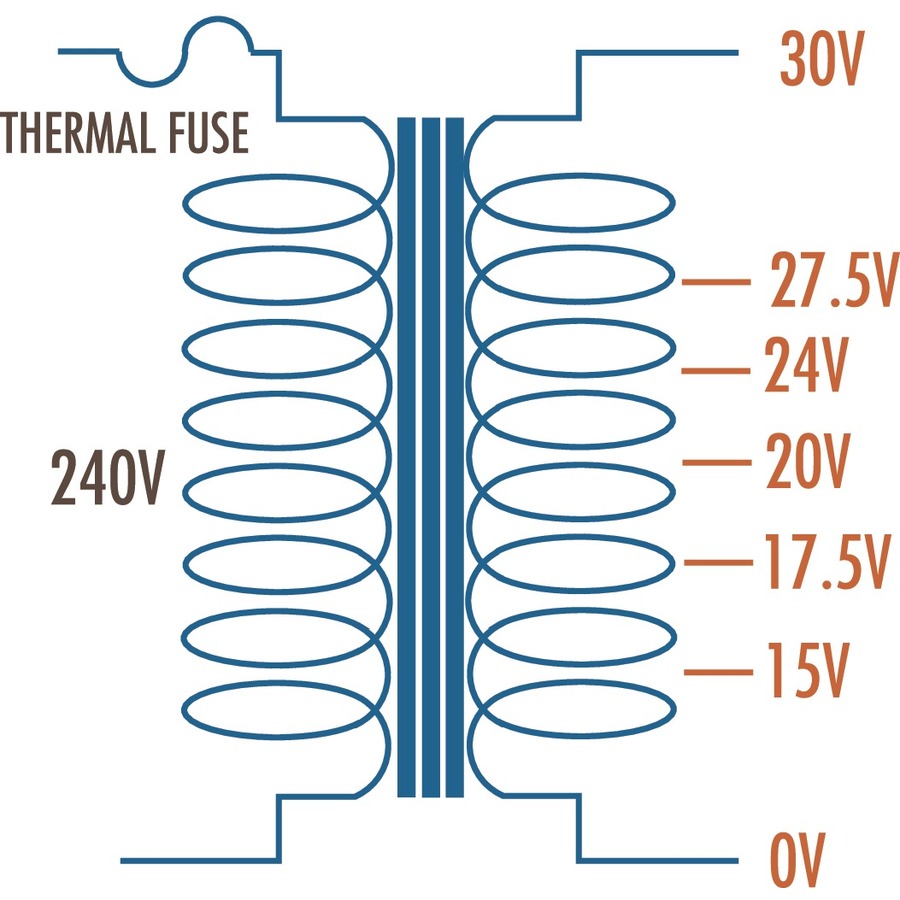

    Secondary Winding Configuration
    		 Multi-tapped
    Regulation
    		 11%
    Case Width (W)
    		 35mm

    Power Conversion and Transformation

    Type of converter or transformer
    		 laminated/toroidal transformer

    Mains powered

    Max Input Power
    		 30VA
    Mains Voltage Range
    		 240V
    Rated for AU Mains

    AC Voltage Rating

    AC Voltage rating
    		 15V, 17.5V, 20V, 30V, 27.5V

    AC Current Rating

    AC current rating
    		 1A

    Product Dimensions

    Weight
    		 924g

    Packaged Dimensions

    Packaged Length
    		 6.6cm
    Packaged Width
    		 9.6cm
    Packaged Weight
    		 0.94kg
    Packaged Volume
    		 0.4055l
    Packaged Height
    		 6.4cm

    Product Availability

    Availability
    		 Stocked item
