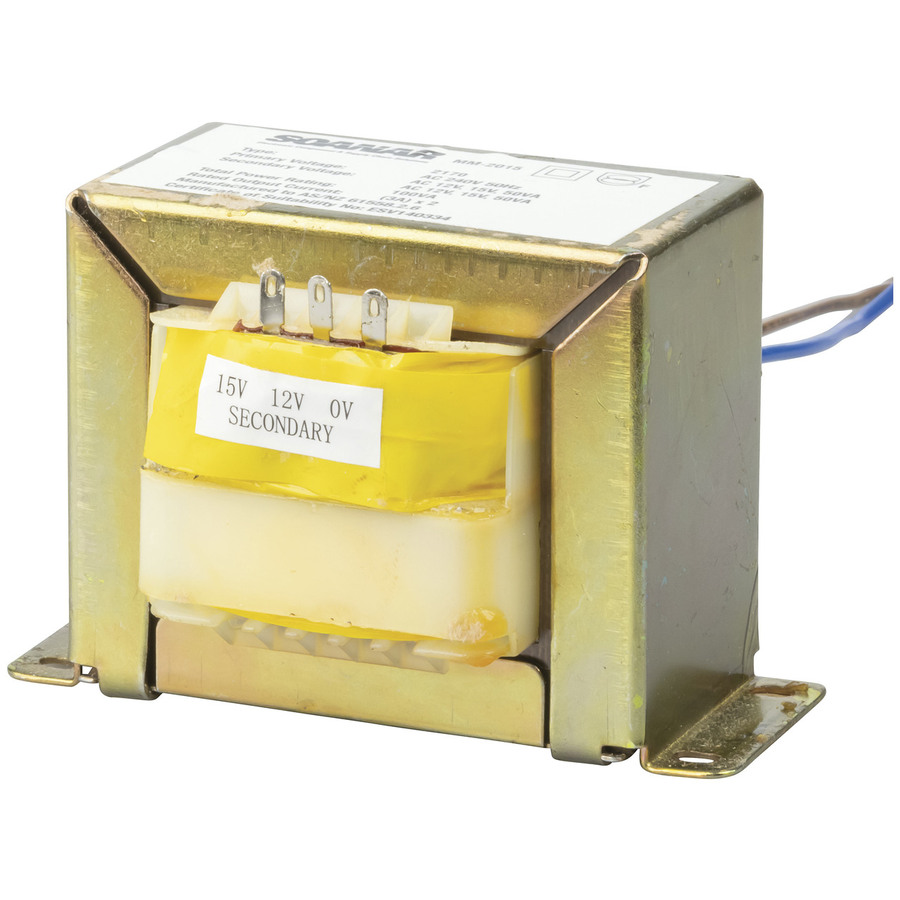

12V - 30V, 100VA, 6A Multi-TappedDual Type 2170 Transformer

$39.95

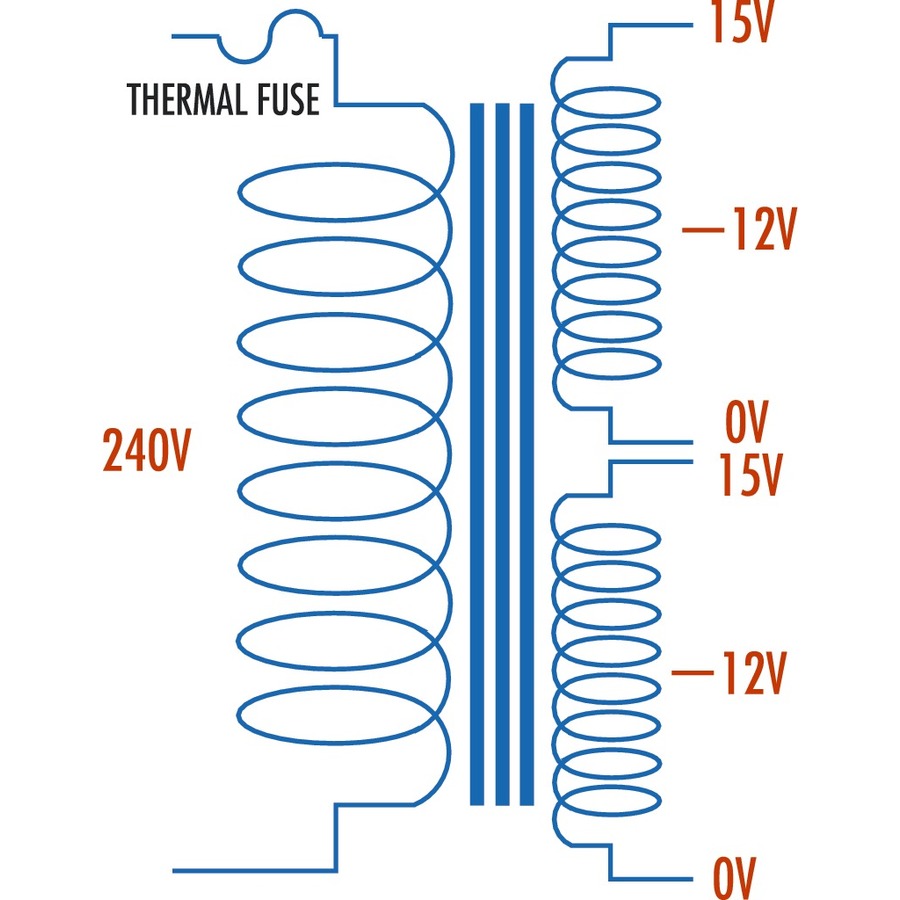

Versatile 100VA iron core mains transformer with multi-tap output Dual 12V and 15V output Maximum current output of 3A (x2)

Please call (02) 4782 6943

Description

240V Mains Power

Traditional laminated iron core transformers suitable for new projects, hobby projects or as a  replacement in existing equipment. They have a thermal fuse built into the primary winding for added safety and a wide variety is available to suit your specific needs.

Twin outputs may be wired in series to increase voltage or in parallel (in phase only) to increase current.

 • Primary Connection: 200mm Fly Leads
 • Conforms to AS/NZ 61558.2.6

    Specifications

    Transformers

    Type of Transformer
    		 Laminated Core
    Case Type
    		 2170

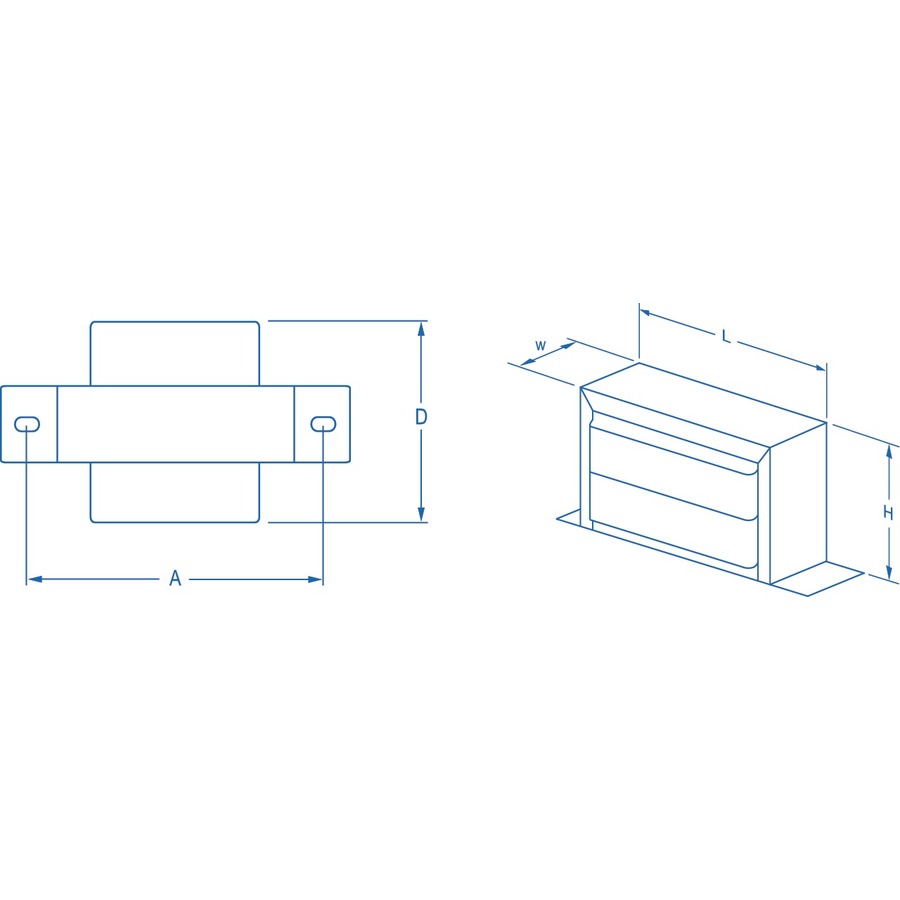

    Core Winding Depth (D)
    		 76mm
    Mount Spacing (A)
    		 91mm
    Primary Winding Connection
    		 Flyleads
    Case Height (H)
    		 68mm
    Temperature Rise Above Ambient at Rated Power
    		 70°C
    Case Length (L)
    		 80mm
    Magnetising Current
    		 80mA
    Core Material
    		 Laminated Iron
    Thermal Fuse
    Secondary Winding Connection
    		 Solder Tags
    Secondary Winding Configuration
    		 Multi-tapped
    Regulation
    		 7%
    Case Width (W)
    		 44mm

    Power Conversion and Transformation

    Type of converter or transformer
    		 laminated/toroidal transformer

    Mains powered

    Max Input Power
    		 100VA
    Mains Voltage Range
    		 240V
    Rated for AU Mains

    AC Voltage Rating

    AC Voltage rating
    		 12V, 15V

    AC Current Rating

    AC current rating
    		 3A

    Product Dimensions

    Weight
    		 1600g

    Packaged Dimensions

    Packaged Length
    		 10.5cm
    Packaged Width
    		 8cm
    Packaged Weight
    		 1.6kg
    Packaged Volume
    		 0.588l
    Packaged Height
    		 7cm

    Product Availability

    Availability
    		 Stocked item
