15W 5V 3A Enclosed Power Supply
15W 5V 3A Enclosed Power Supply

CAT. No. MP3295

15W 5V 3A Enclosed Power Supply
product image thumb

15W 5V 3A Enclosed Power Supply

$23.95

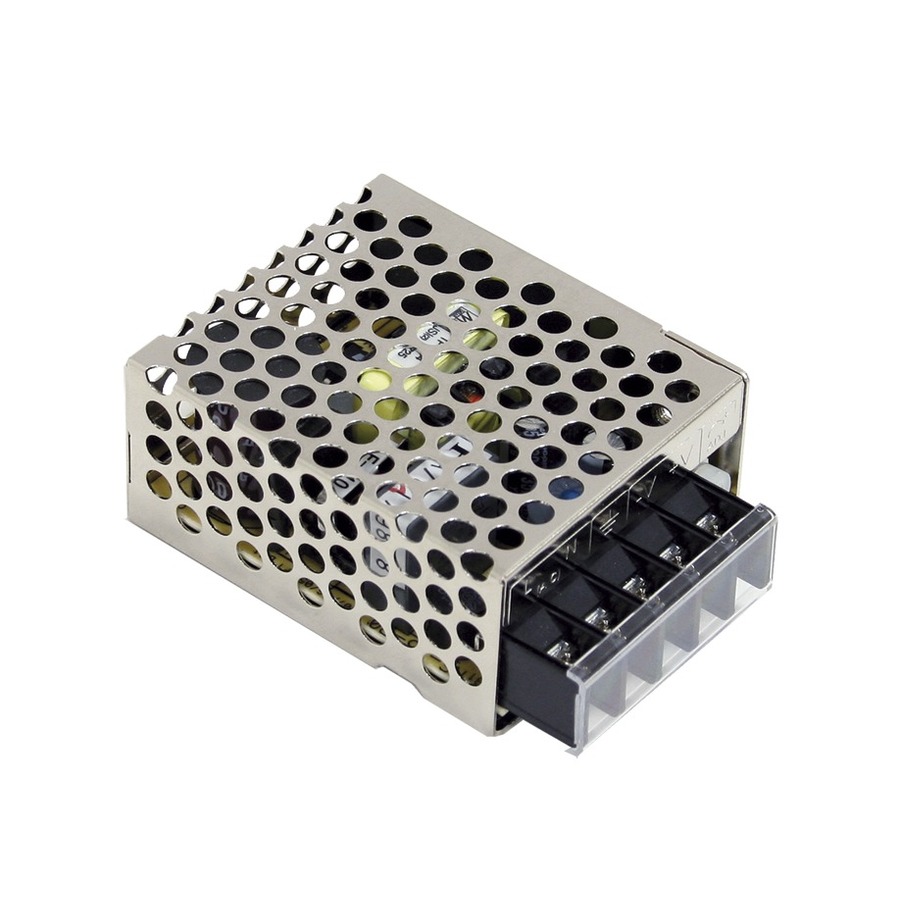

Mean Well RS-15-5 Enclosed Power Supply 15W 5V 3A Output

Please call (02) 4782 6943

Description

3 Year Warranty

A range of mini enclosed switchmode power supplies with single (RS) or dual (RD) outputs.

• Miniature size, non-PFC

• 5G vibration, High operating temperature up to 70°C

• 300VAC input surge

• Suitable for critical applications

• Dual outputs available with the RD series


    Specifications

    Packaged Dimensions

    Packaged Length
    		 8.5cm
    Packaged Width
    		 5.5cm
    Packaged Weight
    		 0.138kg
    Packaged Volume
    		 0.16362l
    Packaged Height
    		 3.5cm

    Power Supply Units

    Type of Power Supply
    		 Metal frame chassis
    Regulation Type
    		 SMPS
    Output Connection
    		 Screw Terminal

    DC Voltage Rating

    DC Voltage
    		 5V

    DC Current Rating

    DC current rating
    		 3A

    Mains powered

    Frequency
    		 50Hz
    Mains Voltage Range
    		 240V

    Power Rating

    Continuous Power
    		 15W

    Operating Temperature

    Operating Temperature
    		 70°C

    Product Availability

    Availability
    		 Stocked item
    Warranty: 36 Months
