25W 12V 2.1A Enclosed Power Supply
25W 12V 2.1A Enclosed Power Supply

CAT. No. MP3297

25W 12V 2.1A Enclosed Power Supply
product image thumb

25W 12V 2.1A Enclosed Power Supply

$26.95

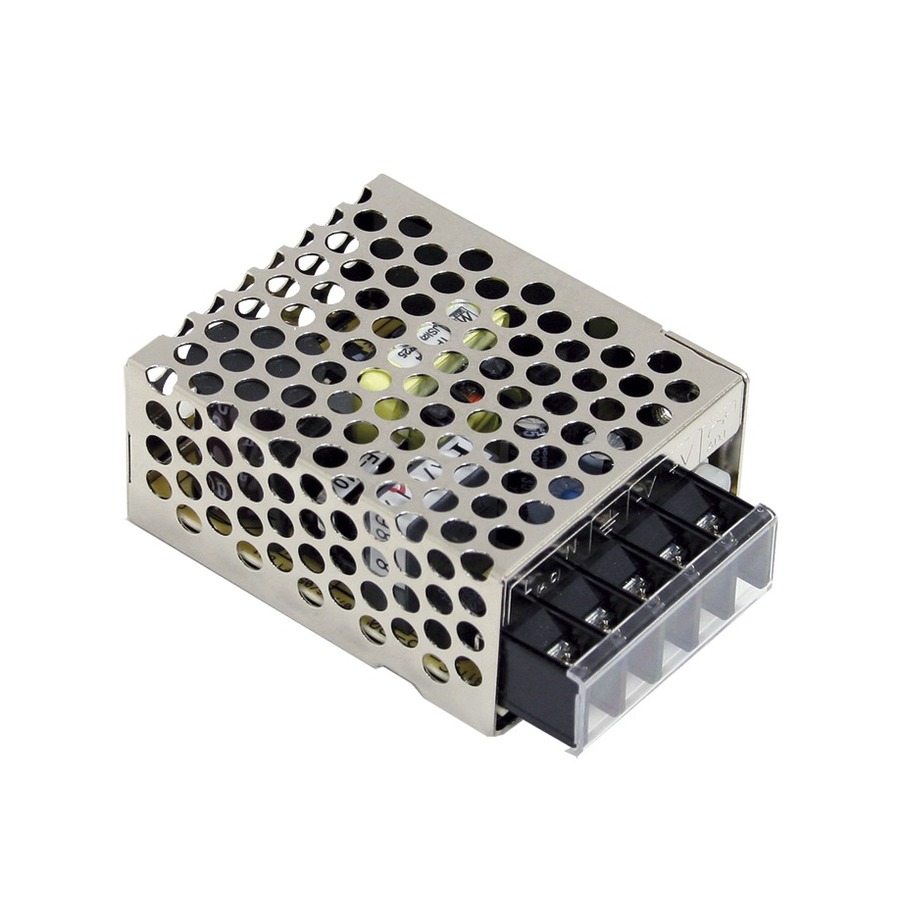

Mean Well RS-25-12 Enclosed Power Supply 25W 12V 2.1A Output

Please call (02) 4782 6943

Description

3 Year Warranty

A range of mini enclosed switchmode power supplies with single (RS) or dual (RD) outputs.

• Miniature size, non-PFC

• 5G vibration, High operating temperature up to 70°C

• 300VAC input surge

• Suitable for critical applications

• Dual outputs available with the RD series


    Specifications

    Packaged Dimensions

    Packaged Length
    		 10.4cm
    Packaged Width
    		 5.8cm
    Packaged Weight
    		 0.184kg
    Packaged Volume
    		 0.21112l
    Packaged Height
    		 3.5cm

    Product Mounting

    Attachment / Securing Method
    		 Screw Down
    Mounting Method
    		 Chassis

    Power Supply Units

    Type of Power Supply
    		 Metal frame chassis
    Regulation Type
    		 SMPS
    Output Connection
    		 Screw Terminal

    DC Voltage Rating

    DC Voltage
    		 12V

    DC Current Rating

    DC current rating
    		 2.1A

    Mains powered

    Frequency
    		 50Hz
    Mains Voltage Range
    		 240V

    Power Rating

    Continuous Power
    		 25W

    Operating Temperature

    Operating Temperature
    		 70°C

    Product Availability

    Availability
    		 Stocked item
    Warranty: 36 Months
