CAT. No. NS3036

Solder Flux Pen 12ml
product image thumb

Solder Flux Pen 12ml

$16.95
A quick drying, no-clean flux for use when removing or replacing surface mount components. Applying the flux to solder joints will aid re-flow when he...

Please call (02) 4782 6943

Description

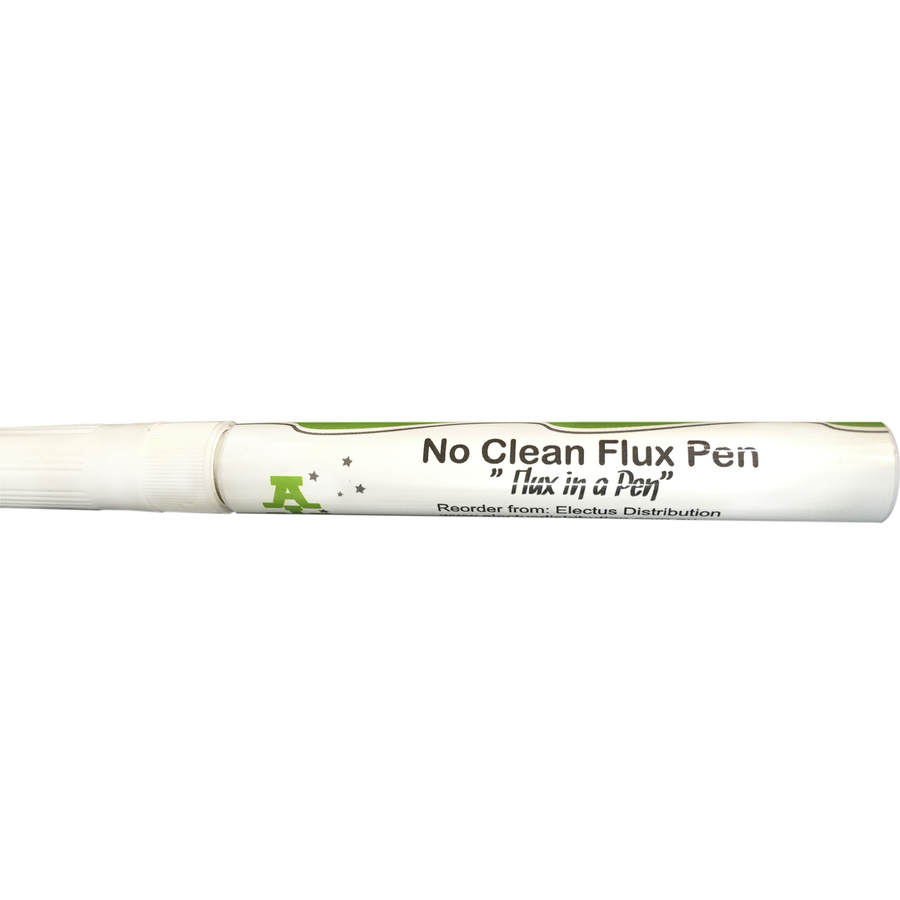

A quick drying, no-clean flux for use when removing or replacing surface mount components. Applying the flux to solder joints will aid re-flow when heating the joint to remove the component, or it can be applied to bare copper or tinned tracks providing excellent solderability. Dries in 5 to 10mins. Handy 12ml pen with chisel tip.

Handy Tip Cheap and Nasty (But effective flux)

Before solder wire had a core of flux in it you had to use a paste, or a liquid flux. The liquid was Zinc Chloride. It was made by getting some hydrochloric Acid (Muriatic Acid) and dropping zinc into it. The most common source of zinc was bits of galvanised iron. When you dropped the zinc into the acid bubbles would come off. When the bubbles stopped, the zinc had replaced the Hydrogen in the acid. The Hydrochloric acid was then called “killed spirits.” The killed spirits was great flux to solder together, say, brass or copper – or even galvanised iron. Of course this was potentially dangerous but that was what you did in the good old days! P.S. don’t forget to wear safety goggles if you attempt this.

    Specifications

    Service Aid Chemicals


    Service Aid
    Flux
    Net Volume
    12ml
    Physical state
    Liquid Pen
    Chemical container type
    Pen

    Product Dimensions


    Liquid Volume
    12ml
    Weight
    10g

    Packaged Dimensions


    Packaged Length
    14.3cm
    Packaged Width
    1.5cm
    Packaged Weight
    0.024kg
    Packaged Volume
    0.03218l
    Packaged Height
    1.5cm

    Classified as dangerous goods


    Dangerous in Road Freight
    DG Class
    3
    Dangerous in Air Freight
    DG UN Number
    1219
    DG Pack Group
    II - Medium Danger
    DG Ship Name
    1219 - Isopropanol or Isopropyl Alcohol
    DG Hazardous Chemical Code
    2Y E

    Product Availability


    Availability
    Stocked item
