CAT. No. NS3046

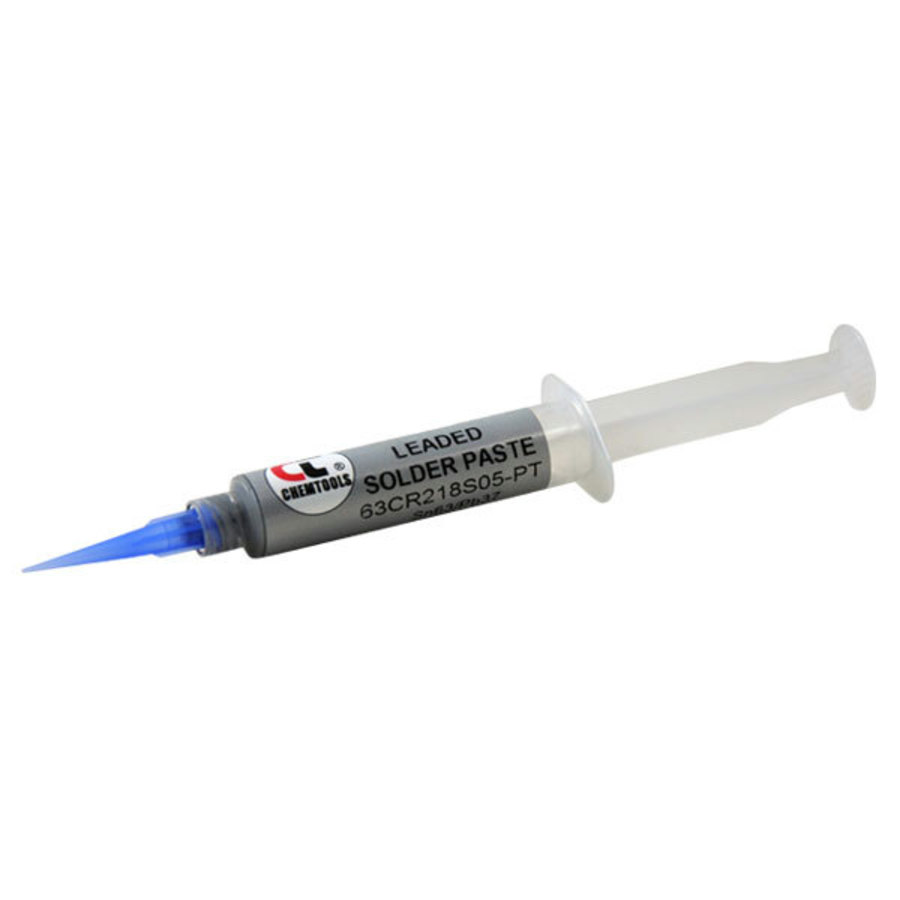

Solder Paste SMD Syringe 15G
product image thumb

Solder Paste SMD Syringe 15G

$16.95
Ideal for surface mount work and rework, solder paste provides a quick and easy soldering solution. Supplied in a syringe for easy application, simply...

Please call (02) 4782 6943

Description

1 Year Warranty

Ideal for surface mount work and rework, solder paste provides a quick and easy soldering solution. Supplied in a syringe for easy application, simply apply it to the soldering pads, put your components in place and heat it with your soldering iron. Solder paste can go off in storage: we have found a local supplier so you can always be confident that the paste you get will be fresh. 63% tin 37% lead.

Solder paste is best kept cool for long life and should be kept refrigerated. For this reason, please ask sales staff for this product, as it will be kept in refrigerated storage, not on display.

Note:
1. NC Paste Flux has a refrigerated shelf life of 6 months at 4°C (40°F) to 12°C (55°C).
2. Allow the paste flux to warm up completely and naturally to ambient temperature (2 hrs.) prior to use.
3. Do not store new and used paste flux in the same container.


    Specifications

    Service Aid Chemicals


    Service Aid
    Solder paste
    Physical state
    Paste
    Composition 1
    Tin
    Percentage 2
    37%
    Percentage 1
    67%
    Net Mass
    15g
    Composition 2
    Lead
    Chemical container type
    Syringe

    Product Dimensions


    Length
    120mm

    Packaged Dimensions


    Packaged Length
    14cm
    Packaged Width
    2.5cm
    Packaged Weight
    0.024kg
    Packaged Volume
    0.056l
    Packaged Height
    1.6cm

    Perishable product


    Storage Conditions
    Refrigerated shelf life of 6 months at 4-12 Celcius
    Shelflife
    180d

    Product Availability


    Availability
    Stocked item
    Warranty: 12 Months
