CAT. No. NS3090

Lead Free Solder 0.71mm 500g Roll
product image thumb

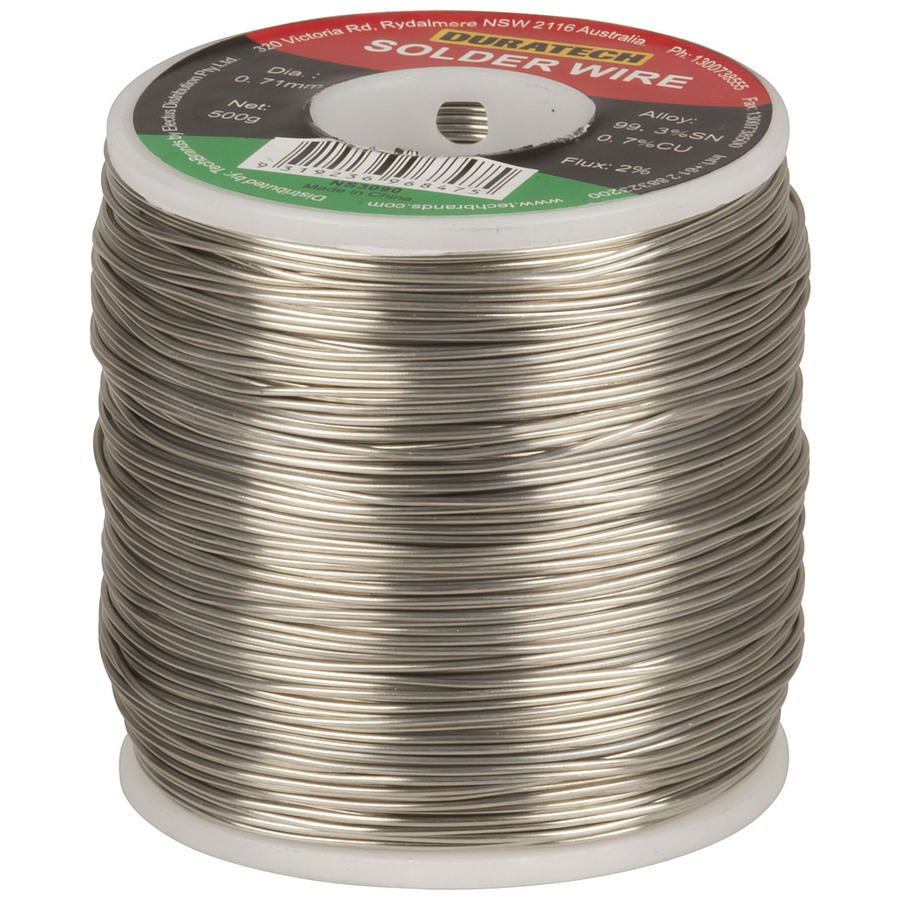

Lead Free Solder 0.71mm 500g Roll

$109
0.71mm lead free resin core solder. Contains tin and copper 99.3/0.07

Please call (02) 4782 6943

Description

Lead free 0.71mm tin/copper resin core solder - 500g roll

Handy Tip Cheap and Nasty (But effective flux)

Before solder wire had a core of flux in it you had to use a paste, or a liquid flux. The liquid was Zinc Chloride. It was made by getting some hydrochloric Acid (Muriatic Acid) and dropping zinc into it. The most common source of zinc was bits of galvanised iron. When you dropped the zinc into the acid bubbles would come off. When the bubbles stopped, the zinc had replaced the Hydrogen in the acid. The Hydrochloric acid was then called “killed spirits.” The killed spirits was great flux to solder together, say, brass or copper – or even galvanised iron. Of course this was potentially dangerous but that was what you did in the good old days! P.S. don’t forget to wear safety goggles if you attempt this.

    Specifications

    Solder and Accessories


    Size
    0.71mm

    Service Aid Chemicals


    Service Aid
    Lead Free Solder Wire
    Physical state
    Wire
    Composition 1
    Tin
    Percentage 2
    0.6%
    Percentage 1
    99.3%
    Net Mass
    500kg
    Composition 2
    Copper
    Chemical container type
    Roll

    Packaged Dimensions


    Packaged Length
    5.3cm
    Packaged Width
    5.3cm
    Packaged Weight
    0.514kg
    Packaged Volume
    0.160113l
    Packaged Height
    5.7cm
