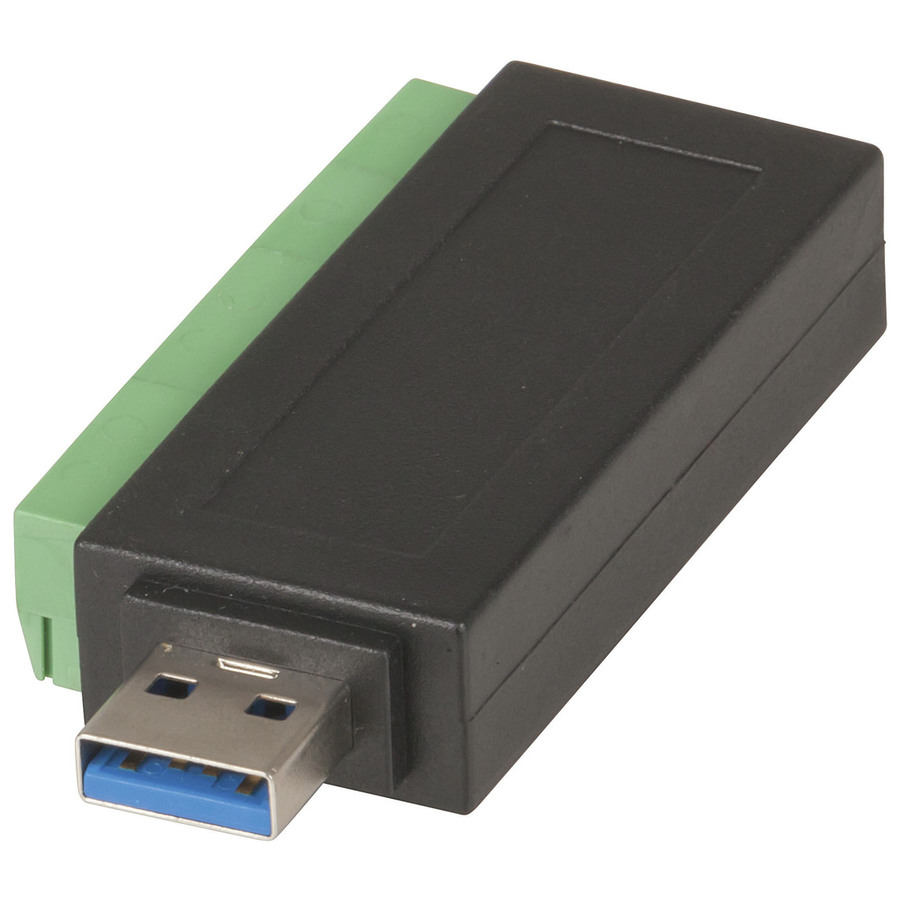

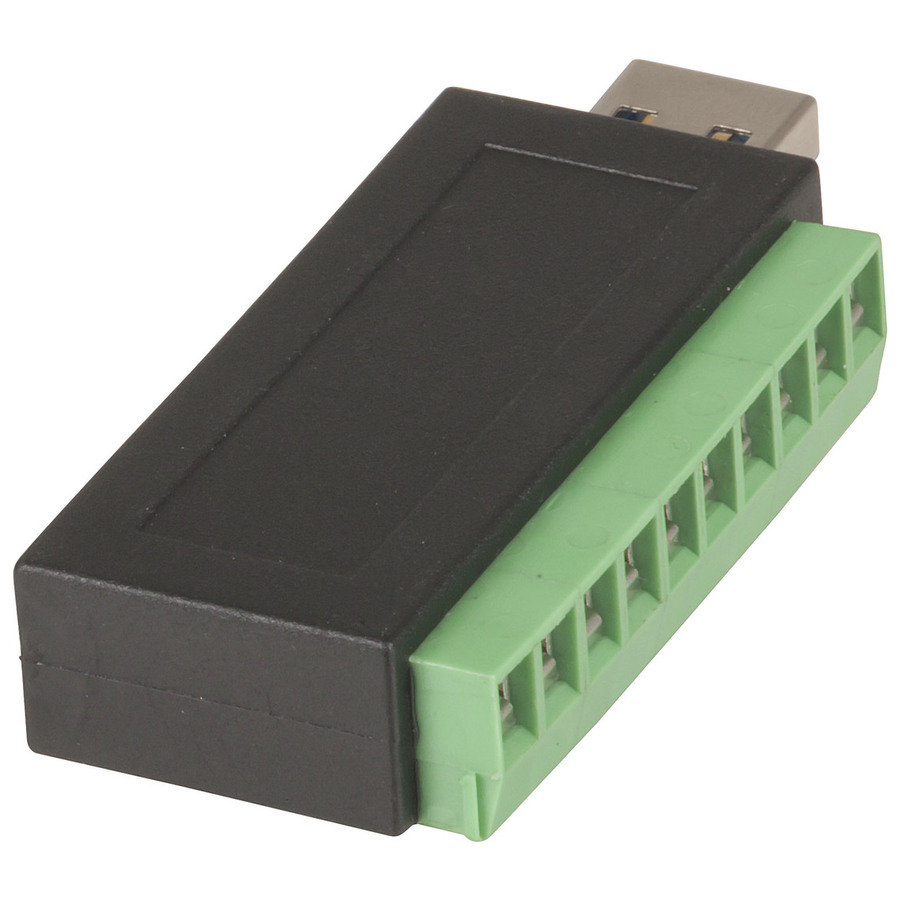

USB 3.0 Type-A Plug to 10-Way Screw Terminal Header Adaptor
USB 3.0 Type-A Plug to 10-Way Screw Terminal Header Adaptor
USB 3.0 Type-A Plug to 10-Way Screw Terminal Header Adaptor

CAT. No. PA0956

USB 3.0 Type-A Plug to 10-Way Screw Terminal Header Adaptor
product image thumb
product image thumb

USB 3.0 Type-A Plug to 10-Way Screw Terminal Header Adaptor

$12.95
USB Type A plug to a 10-way screw terminal block for temporary or prototyping applications.

Please call (02) 4782 6943

Description

USB 3.0

USB Type A plug to a 10-way screw terminal block for temporary or prototyping applications. No soldering required.

• Insulation Resistance of 10MΩ @ 300VDC for up to 0.01S

    Specifications

    Plug or Socket

    Contacts / Pins
    		 10pc
    Device
    		 Plug
    Contact resistance
    		 0?-2?
    Insulation resistance
    		 10M?
    Plug or Socket Type
    		 USB Type A
    Dielectric Withstanding Voltage
    		 100V
    Attachment Method
    		 Screw

    AC Voltage Rating

    AC Voltage rating
    		 30V

    AC Current Rating

    AC current rating
    		 1A

    Product Dimensions

    Length
    		 68mm
    Height
    		 13mm
    Width
    		 33mm
    Weight
    		 30g

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 6.5cm
    Packaged Width
    		 2.8cm
    Packaged Weight
    		 0.03kg
    Packaged Volume
    		 0.03276l
    Packaged Height
    		 1.8cm

    Downloads

    PA0956-dataSheetMain.pdf
