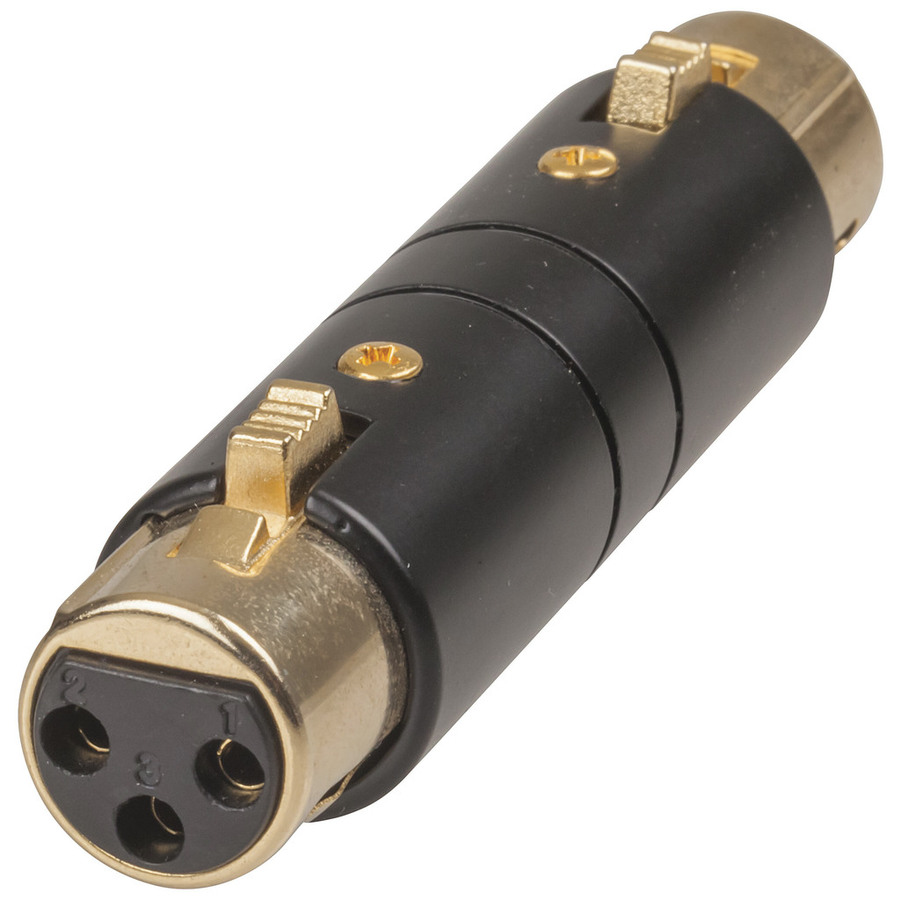

3 Pin FemaleFemale Cannon Type Adaptor
3 Pin FemaleFemale Cannon Type Adaptor

CAT. No. PA3686

3 Pin FemaleFemale Cannon Type Adaptor
product image thumb

3 Pin FemaleFemale Cannon Type Adaptor

$17.95
Join two 3 pin Cannon type plugs together with this adapter.

Please call (02) 4782 6943

Description

ADAPTOR - 3 PIN FEMALE/FEMALE

Handy Tip XLR Wiring

The Standard is defined by the Audio Engineering Society inAES14-1992(r1998)
Pin 1: Shield/Ground
Pin 2: Hot/in Phase / +
Pin 3: Cold / Out of Phase / -
To create an unbalanced connection, pin 1 & pin 3 are connected to ground & pin 2 carries the signal. Note that there is a lot of equipment (particularly in the US) that has pin 2 & pin 3designations reversed (i.e. 3 hot, 2 cold).Manufacturers are adopting the Standard on all new equipment.

    Specifications

    Packaged Dimensions

    Packaged Length
    		 12cm
    Packaged Width
    		 7.4cm
    Packaged Weight
    		 0.054kg
    Packaged Volume
    		 0.1776l
    Packaged Height
    		 2cm

    AV Connection Adaptors

    Signal Type
    		 Audio
    Input Quantity
    		 1pc
    Input Connection
    		 Socket
    Casing Material
    		 Plastic
    Input Type
    		 XLR
    Output Type
    		 XLR
    Output Connection
    		 Socket
    Output Quantity
    		 1pc

    Product Availability

    Availability
    		 Stocked item
