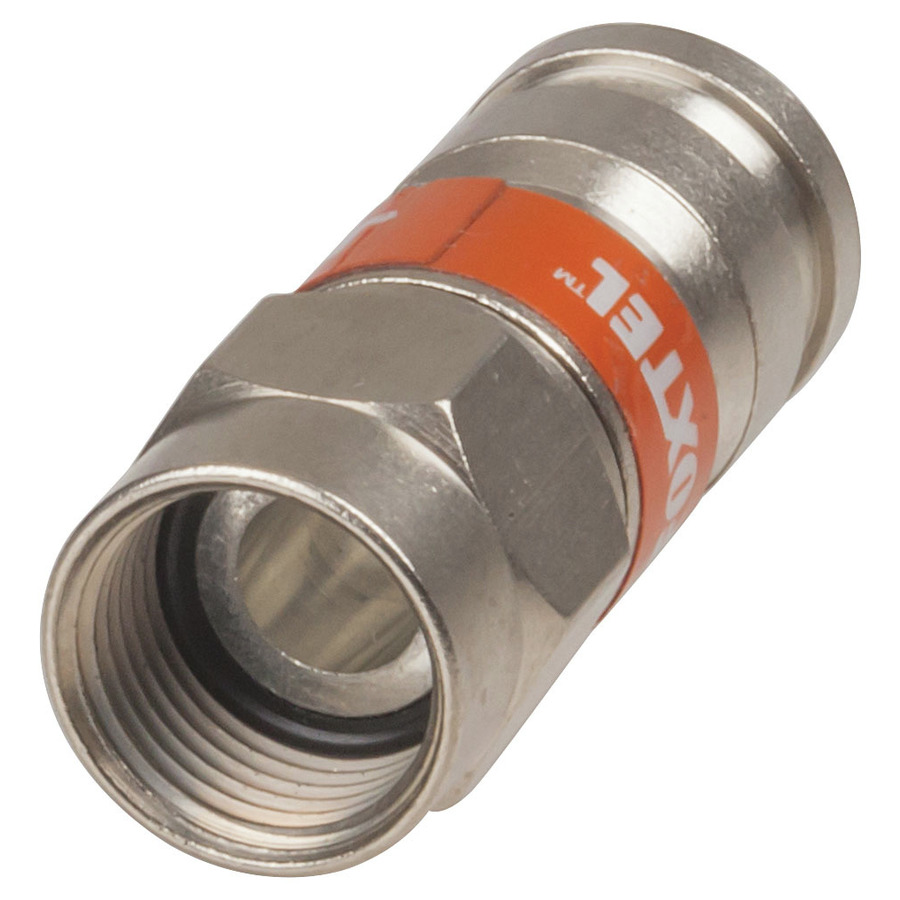

F-59 Waterproof Compression Plug for RG6 Cable
F-59 Waterproof Compression Plug for RG6 Cable

CAT. No. PP0708

F-59 Waterproof Compression Plug for RG6 Cable
product image thumb

F-59 Waterproof Compression Plug for RG6 Cable

$2.5
F-59 line plug for RG6 quad shield cable. Waterproof with dual crimp points for the cable and dual O-rings on the thread. Foxtel approved.Crimp tool t...

Please call (02) 4782 6943

Description

F-59 line plug for RG6 quad shield cable. Waterproof with dual crimp points for the cable and dual O-rings on the thread. Foxtel Approved (Approval No. F31125).
Crimp tool recommended: TH-1803

Handy Tip Coaxial - F Type Plugs, Sockets & Adaptors

Used mainly for RF signals such as those for satellite dishes, cable boxes or TV aerials. The highest quality connections between your cable/satellite wallplate output and the cable/satellite box. Standard emerged from the US cable TV industry. Now the Aust./NZ standard.

    Specifications

    Plug or Socket

    Cable Type
    		 RG6 Coax
    Device
    		 Plug
    Contact Material
    		 Metal
    Plug or Socket Type
    		 PL-259 / SO-239
    Attachment Method
    		 Compression
    Case Material
    		 Metal

    Packaged Dimensions

    Packaged Length
    		 2.7cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.008kg
    Packaged Volume
    		 0.0027l
    Packaged Height
    		 1cm

    Product Availability

    Availability
    		 Stocked item
