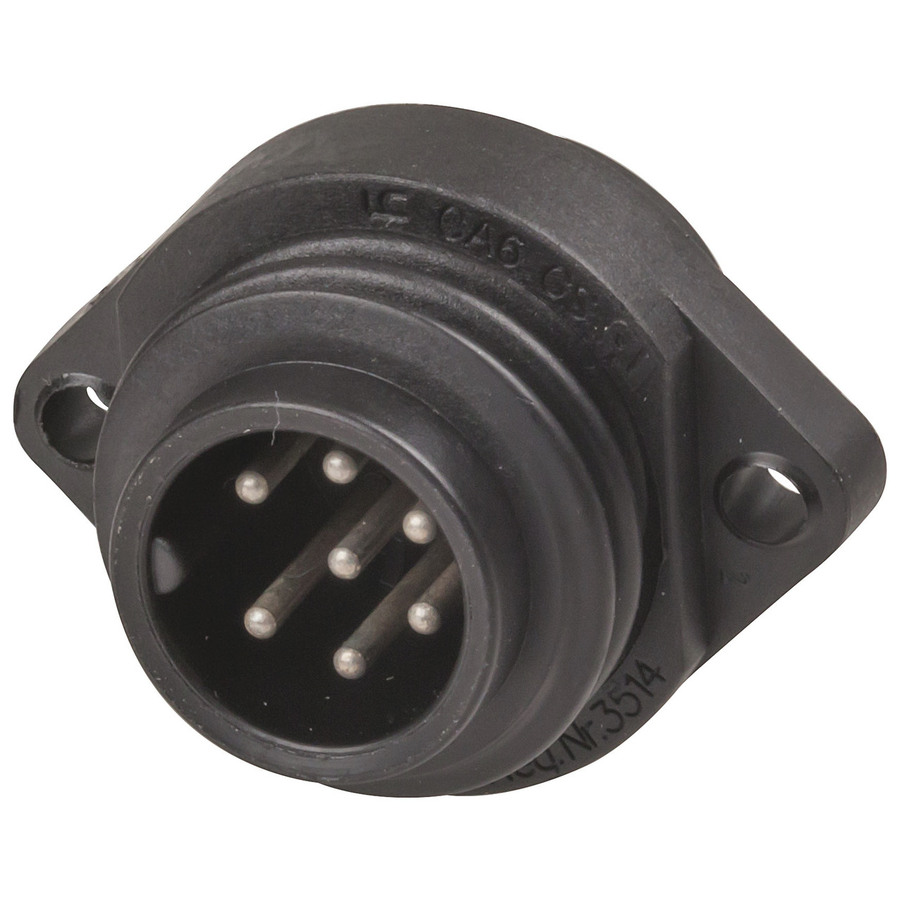

6 Pole + Pre-earth CA Series Panel Plug
6 Pole + Pre-earth CA Series Panel Plug

CAT. No. PP1002

6 Pole + Pre-earth CA Series Panel Plug
product image thumb

6 Pole + Pre-earth CA Series Panel Plug

$15.95
C16-1 Series or similar connectors offer 4 or 7 way (3 and 6 plus a P.E. - or pre-engaging - earth contact). The mating part...

Please call (02) 4782 6943

Description

Hirschmann C16-1 Series or similar connectors offer 4 or 7 way (3 and 6 with plus a P.E. - or pre-engaging - earth contact).. For further technical information see specifications. A quality industry-standard connector.

Features
- Electrical: 6 Pole + PE
- Contact Resistance: <5mohm
- Suitable for panel mounting.
Environmental:
- Temperature range: -40°C to + 100°C
- Housing: Polyamide 6.6
- Strain Relief: Screw clamp/Ring and Gland Nut (9mm)

    Specifications

    Plug or Socket

    Contacts / Pins
    		 6pc
    Device
    		 Plug
    Pack Quantity
    		 1pc
    Cable Entry Diameter
    		 0.5mm
    Contact Material
    		 Plated Metal
    Insulation resistance
    		 10G?
    Plug or Socket Type
    		 C16-1 Series
    Attachment Method
    		 Solder Tag
    Case Material
    		 Plastic

    DC Current Rating

    DC current rating
    		 10A

    AC Voltage Rating

    AC Voltage rating
    		 380V

    DC Voltage Rating

    DC Voltage
    		 450V

    Ingress Protection Rating

    IP Rating
    		 IP67
    IP Rating certificate

    Packaged Dimensions

    Packaged Length
    		 15cm
    Packaged Width
    		 14.5cm
    Packaged Weight
    		 0.016kg
    Packaged Volume
    		 0.54375l
    Packaged Height
    		 2.5cm

    Product Availability

    Availability
    		 Stocked item

N/A
