Waterproof IP67 XLR Line Plug
Waterproof IP67 XLR Line Plug

CAT. No. PP1013

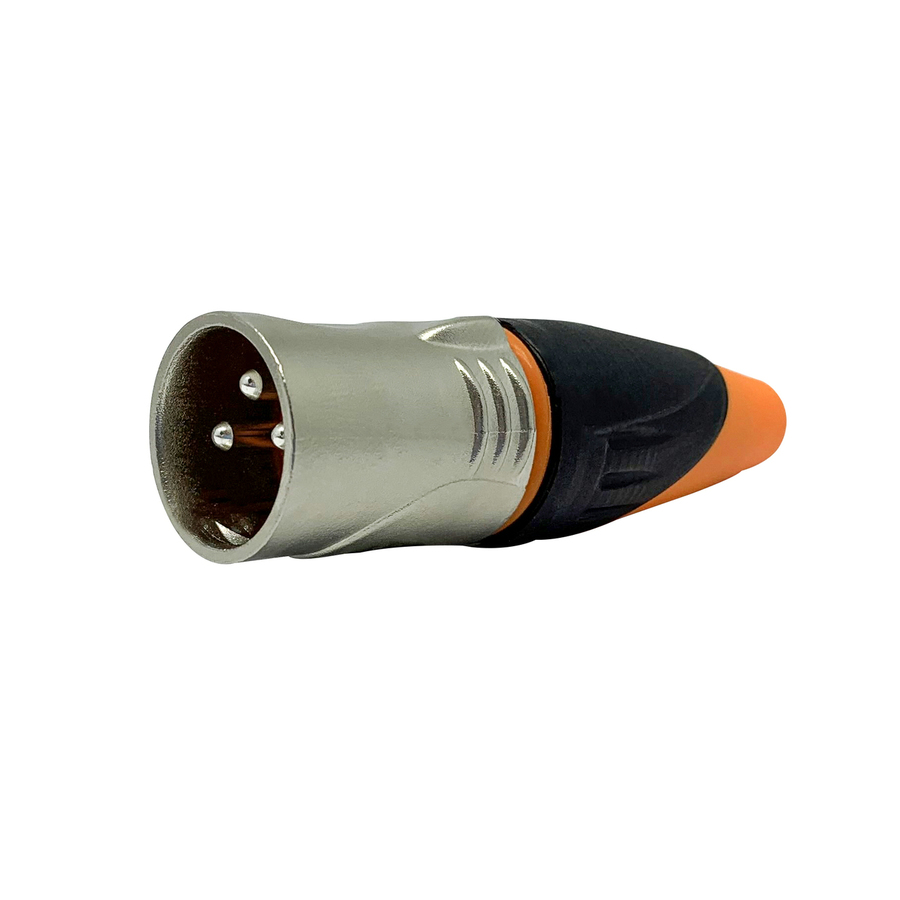

Waterproof IP67 XLR Line Plug
product image thumb

Waterproof IP67 XLR Line Plug

$12.95
From our range of audio, data and telecommunication terminating connectors.

Please call (02) 4782 6943

Description

An IP67 waterproof plug suitable for harsh environments. Great for use with PA gear and cabling that are used in outdoor conditions.

For matching Waterproof IP67 XLR Line Socket use PS1017


Handy Tip XLR Wiring

The Standard is defined by the Audio Engineering Society inAES14-1992(r1998)
Pin 1: Shield/Ground
Pin 2: Hot/in Phase / +
Pin 3: Cold / Out of Phase / -
To create an unbalanced connection, pin 1 & pin 3 are connected to ground & pin 2 carries the signal. Note that there is a lot of equipment (particularly in the US) that has pin 2 & pin 3designations reversed (i.e. 3 hot, 2 cold).Manufacturers are adopting the Standard on all new equipment.

    Specifications

    Plug or Socket

    Contacts / Pins
    		 3pc
    Device
    		 Plug
    Pack Quantity
    		 1pc
    Plug or Socket Type
    		 XLR
    Attachment Method
    		 Solder Tag
    Case Material
    		 Metal
    Colour Coded
    		 Orange

    Ingress Protection Rating

    IP Rating
    		 IP67
    IP Rating certificate

    Packaged Dimensions

    Packaged Length
    		 9.7cm
    Packaged Width
    		 7.9cm
    Packaged Weight
    		 0.034kg
    Packaged Volume
    		 0.176249l
    Packaged Height
    		 2.3cm

    Product Availability

    Availability
    		 Stocked item
