3 Pin Line Male Cannon Type Connector - Right angle
3 Pin Line Male Cannon Type Connector - Right angle

CAT. No. PP1020

3 Pin Line Male Cannon Type Connector - Right angle
product image thumb

3 Pin Line Male Cannon Type Connector - Right angle

$14.95
From our range of power, audio, data and telecommunication adapters and terminating connectors.

Please call (02) 4782 6943

Description

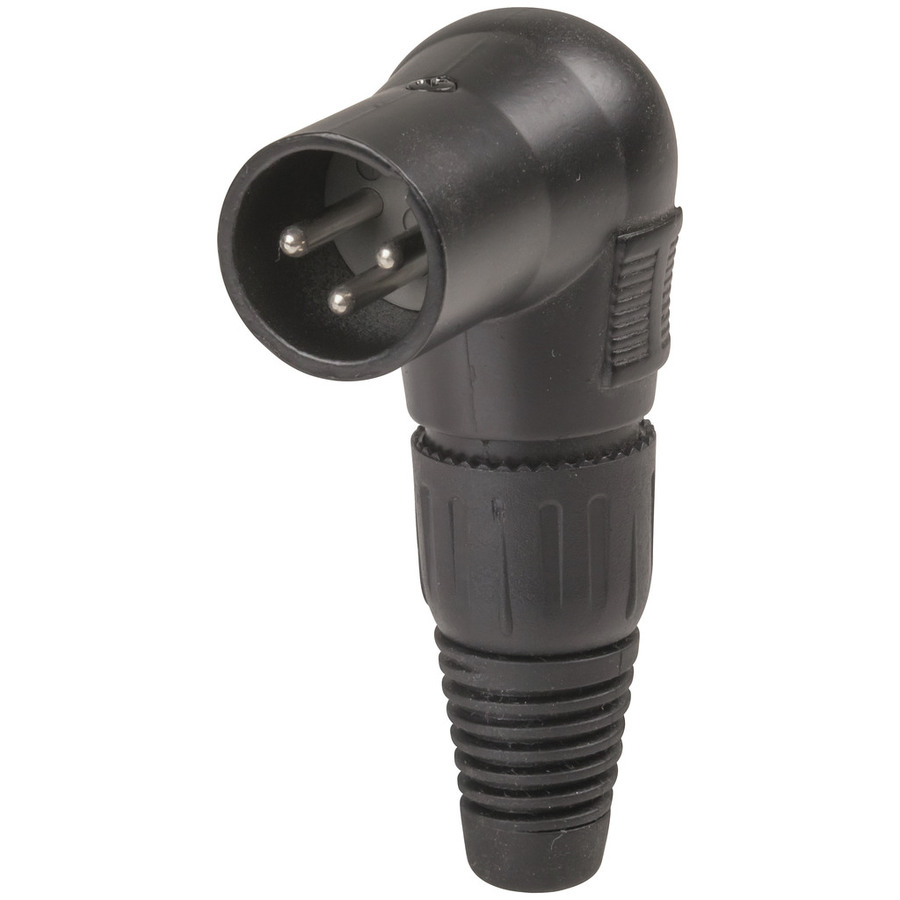

Right-angle XLR plug line.

Handy Tip XLR Wiring

The Standard is defined by the Audio Engineering Society inAES14-1992(r1998)
Pin 1: Shield/Ground
Pin 2: Hot/in Phase / +
Pin 3: Cold / Out of Phase / -
To create an unbalanced connection, pin 1 & pin 3 are connected to ground & pin 2 carries the signal. Note that there is a lot of equipment (particularly in the US) that has pin 2 & pin 3designations reversed (i.e. 3 hot, 2 cold).Manufacturers are adopting the Standard on all new equipment.

    Specifications

    Plug or Socket

    Contacts / Pins
    		 3pc
    Device
    		 Plug
    Pack Quantity
    		 1pc
    Plug or Socket Type
    		 XLR
    Attachment Method
    		 Solder Tag
    Case Material
    		 Plastic
    Colour Coded
    		 Black

    Packaged Dimensions

    Packaged Length
    		 14cm
    Packaged Width
    		 9cm
    Packaged Weight
    		 0.068kg
    Packaged Volume
    		 0.378l
    Packaged Height
    		 3cm

    Product Availability

    Availability
    		 Stocked item
