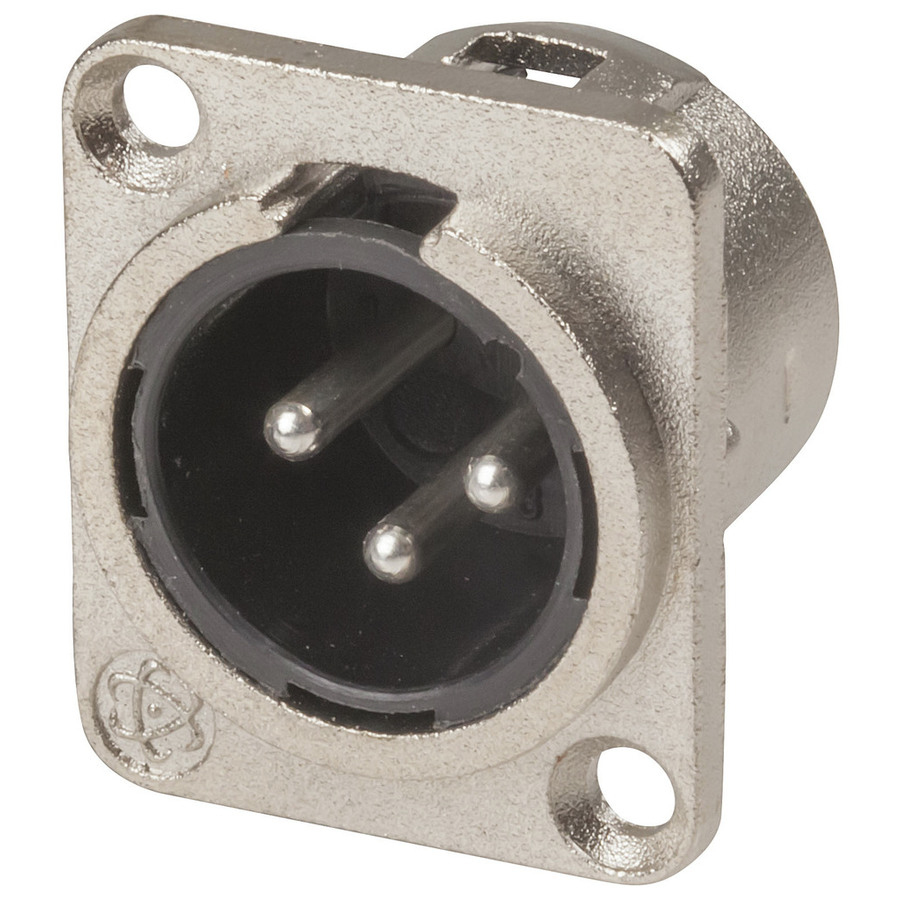

3 Pin Small Size Chassis Male Cannon Type Connector
3 Pin Small Size Chassis Male Cannon Type Connector

CAT. No. PP1023

3 Pin Small Size Chassis Male Cannon Type Connector
product image thumb

3 Pin Small Size Chassis Male Cannon Type Connector

$8.95
3 Pin Small Size Chassis Male Cannon Type Connector

Please call (02) 4782 6943

Description

3 PIN CHASSIS XLR MALE.
Hole cutout 24mm.


Handy Tip XLR Wiring

The Standard is defined by the Audio Engineering Society inAES14-1992(r1998)
Pin 1: Shield/Ground
Pin 2: Hot/in Phase / +
Pin 3: Cold / Out of Phase / -
To create an unbalanced connection, pin 1 & pin 3 are connected to ground & pin 2 carries the signal. Note that there is a lot of equipment (particularly in the US) that has pin 2 & pin 3designations reversed (i.e. 3 hot, 2 cold).Manufacturers are adopting the Standard on all new equipment.

    Specifications

    Plug or Socket

    Contacts / Pins
    		 3pc
    Device
    		 Plug
    Pack Quantity
    		 1pc
    Plug or Socket Type
    		 XLR
    Attachment Method
    		 Solder Tag
    Case Material
    		 Metal

    Product Mounting

    Mounting Method
    		 Chassis

    Packaged Dimensions

    Packaged Length
    		 6.8cm
    Packaged Width
    		 5cm
    Packaged Weight
    		 0.02kg
    Packaged Volume
    		 0.1088l
    Packaged Height
    		 3.2cm

    Product Availability

    Availability
    		 Stocked item
