4 Pin Line Male XLR Stype Connector
4 Pin Line Male XLR Stype Connector

CAT. No. PP1040

4 Pin Line Male XLR Stype Connector
product image thumb

4 Pin Line Male XLR Stype Connector

$13.95
From our range of power, audio, data and telecommunication adapters and terminating connectors.

Please call (02) 4782 6943

Description

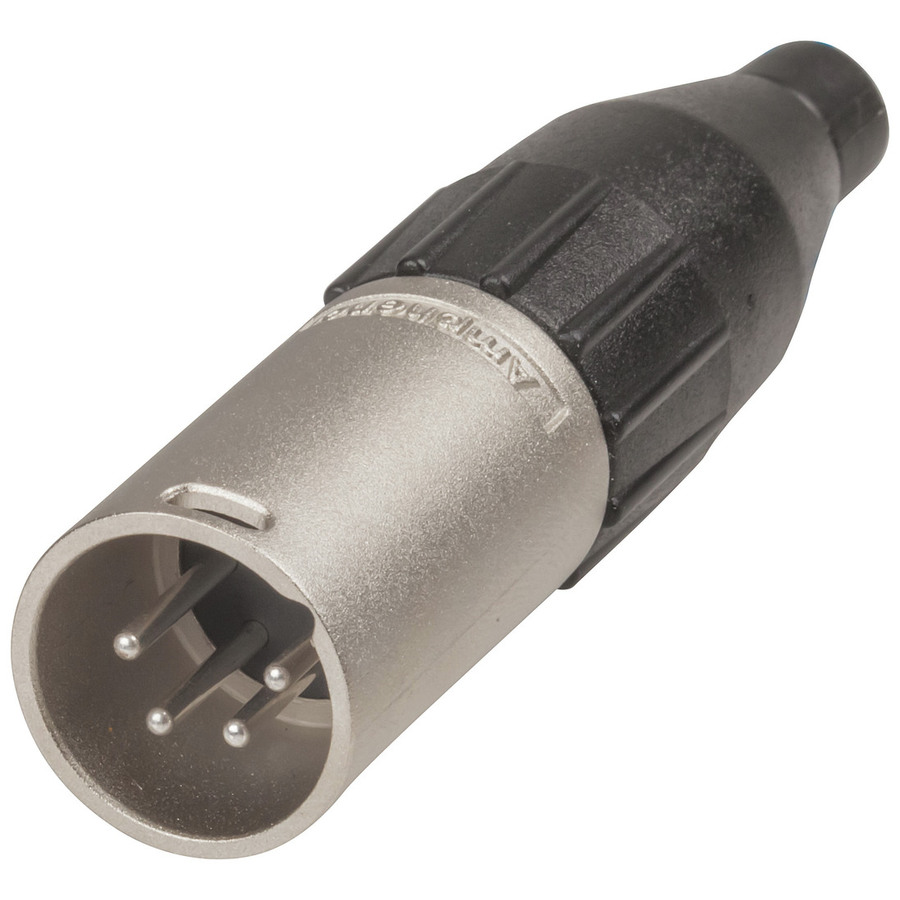

 XLR/4P SLV/BLK AMPHENOL LINE
- Diecast metal shell


Handy Tip XLR Wiring

The Standard is defined by the Audio Engineering Society inAES14-1992(r1998)
Pin 1: Shield/Ground
Pin 2: Hot/in Phase / +
Pin 3: Cold / Out of Phase / -
To create an unbalanced connection, pin 1 & pin 3 are connected to ground & pin 2 carries the signal. Note that there is a lot of equipment (particularly in the US) that has pin 2 & pin 3designations reversed (i.e. 3 hot, 2 cold).Manufacturers are adopting the Standard on all new equipment.

    Specifications

    Plug or Socket

    Device
    		 Plug
    Contact Material
    		 Nickel Plated Copper
    Plug or Socket Type
    		 XLR
    Attachment Method
    		 Solder Tag
    Case Material
    		 Metal
    Colour Coded
    		 Black

    Product Mounting

    Mounting Method
    		 Line

    Packaged Dimensions

    Packaged Length
    		 12.6cm
    Packaged Width
    		 10.6cm
    Packaged Weight
    		 0.036kg
    Packaged Volume
    		 0.29383l
    Packaged Height
    		 2.2cm

    Product Availability

    Availability
    		 Stocked item
