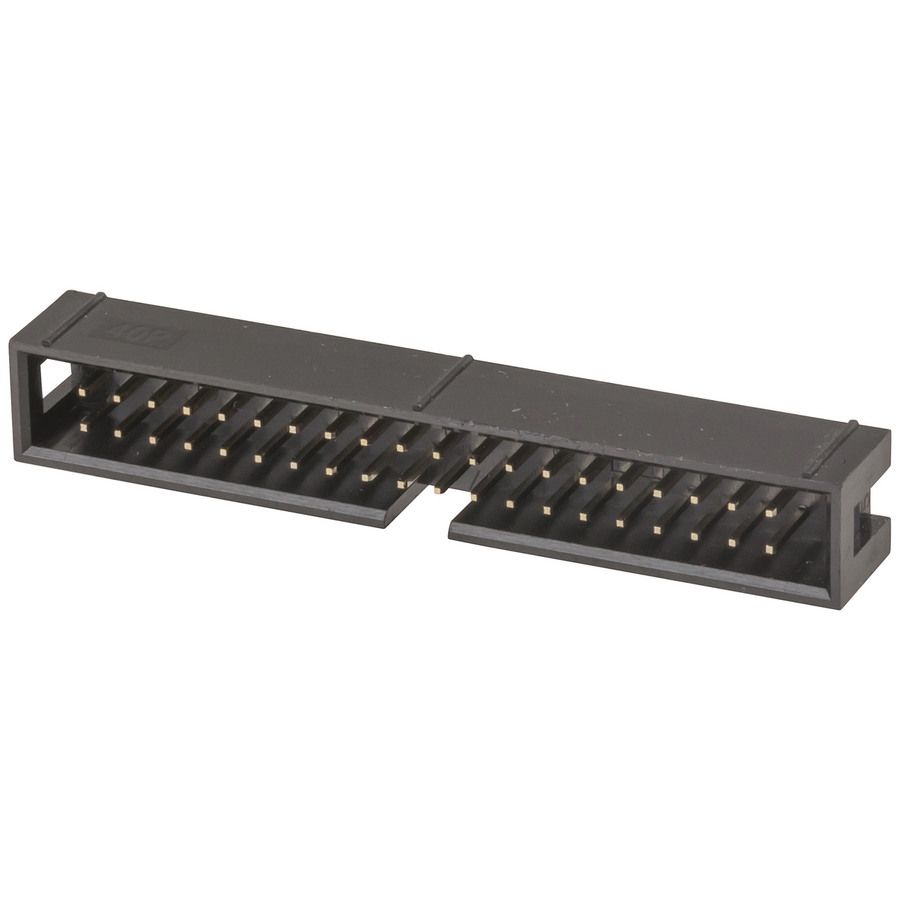

40 Pin IDC Vertical Header
40 Pin IDC Vertical Header

CAT. No. PP1114

40 Pin IDC Vertical Header
product image thumb

40 Pin IDC Vertical Header

$2.95
From our range of audio, data and telecommunication terminating connectors.

Please call (02) 4782 6943

Description

Vertical facing 40 pin IDC plug, suitable for PCB mounting.

Dimentions (mm)  PINS    A     B     C

         PP-1114       40     58.5  56   48


    Specifications

    Header Connections

    Type
    		 Double Row Header
    Device
    		 Plug
    Pin Spacing
    		 2.54mm (0.1")
    Number of Pins
    		 40pc
    Pin Material
    		 Gold Plated
    Attachment Method
    		 IDC

    Product Mounting

    Mounting Method
    		 PCB

    Packaged Dimensions

    Packaged Length
    		 5.8cm
    Packaged Width
    		 1cm
    Packaged Weight
    		 0.005kg
    Packaged Volume
    		 0.00464l
    Packaged Height
    		 0.8cm

    Product Availability

    Availability
    		 Stocked item
