16 Pin IDC Right Angle Header
16 Pin IDC Right Angle Header

CAT. No. PP1122

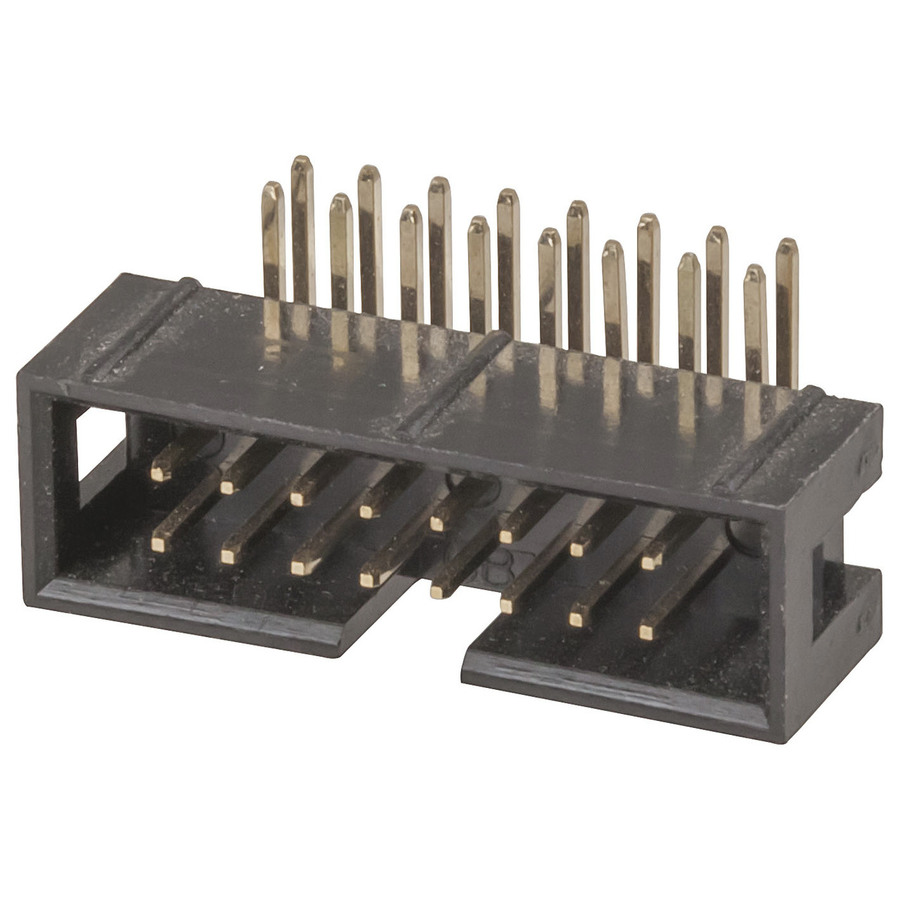

16 Pin IDC Right Angle Header
product image thumb

16 Pin IDC Right Angle Header

$1.2
From our range of power, audio, data and telecommunication adapters and terminating connectors.

Please call (02) 4782 6943

Description

Horizontal facing 16 pin IDC plug, suitable for PCB mounting.

Dimentions (mm)  PINS    A     B     C

         PP-1122       16      28    26   18


    Specifications

    Header Connections

    Type
    		 Double Row Header
    Right Angle Mount
    Device
    		 Plug
    Pin Spacing
    		 2.54mm (0.1")
    Number of Pins
    		 16pc
    Attachment Method
    		 IDC

    Packaged Dimensions

    Packaged Length
    		 1.5cm
    Packaged Width
    		 1.3cm
    Packaged Weight
    		 0.003kg
    Packaged Volume
    		 0.00566l
    Packaged Height
    		 2.9cm
