26 Pin IDC Right Angle Header
26 Pin IDC Right Angle Header

CAT. No. PP1126

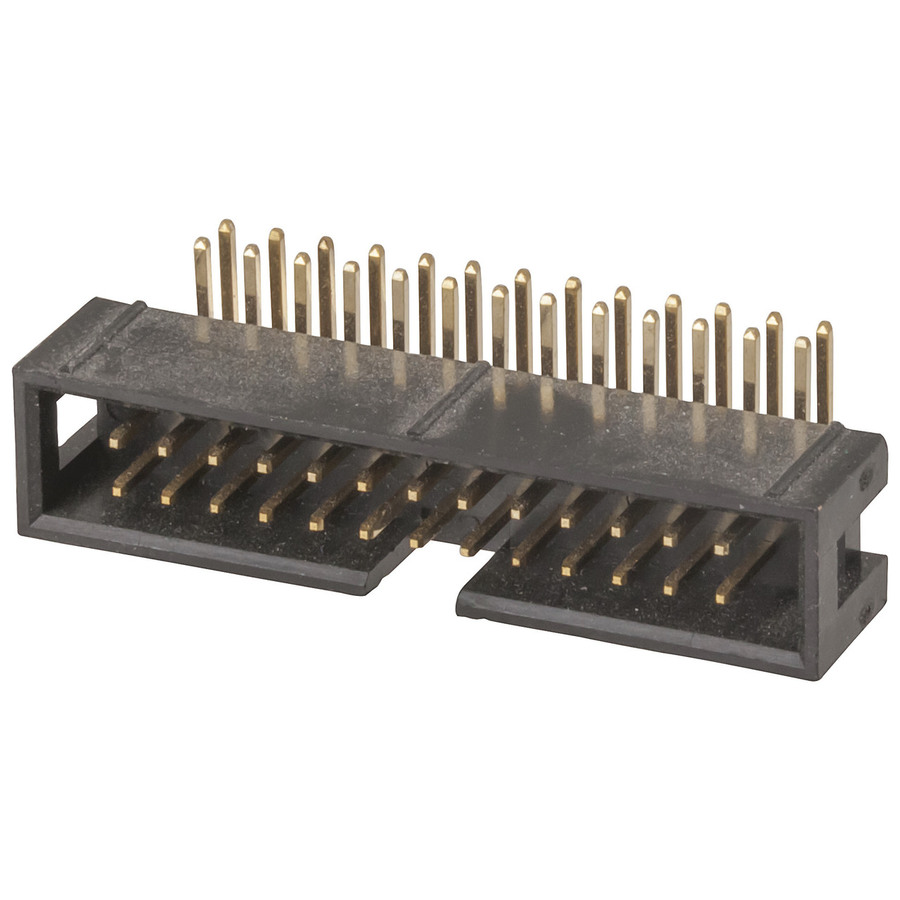

26 Pin IDC Right Angle Header
product image thumb

26 Pin IDC Right Angle Header

$3.99
From our range of power, audio, data and telecommunication adapters and terminating connectors.

Please call (02) 4782 6943

Description

Horizontal facing 26 pin IDC plug, suitable for PCB mounting.

Dimensions (mm)

PINS    A     B     C

26      41  38.5 30.5


    Specifications

    Header Connections

    Type
    		 Double Row Header
    Right Angle Mount
    Device
    		 Plug
    Pin Spacing
    		 2.54mm (0.1")
    Number of Pins
    		 26pc
    Pin Material
    		 Gold Plated
    Attachment Method
    		 IDC

    Product Mounting

    Mounting Method
    		 PCB

    Packaged Dimensions

    Packaged Length
    		 4cm
    Packaged Width
    		 1.3cm
    Packaged Weight
    		 0.004kg
    Packaged Volume
    		 0.00676l
    Packaged Height
    		 1.3cm

    Product Availability

    Availability
    		 Stocked item
