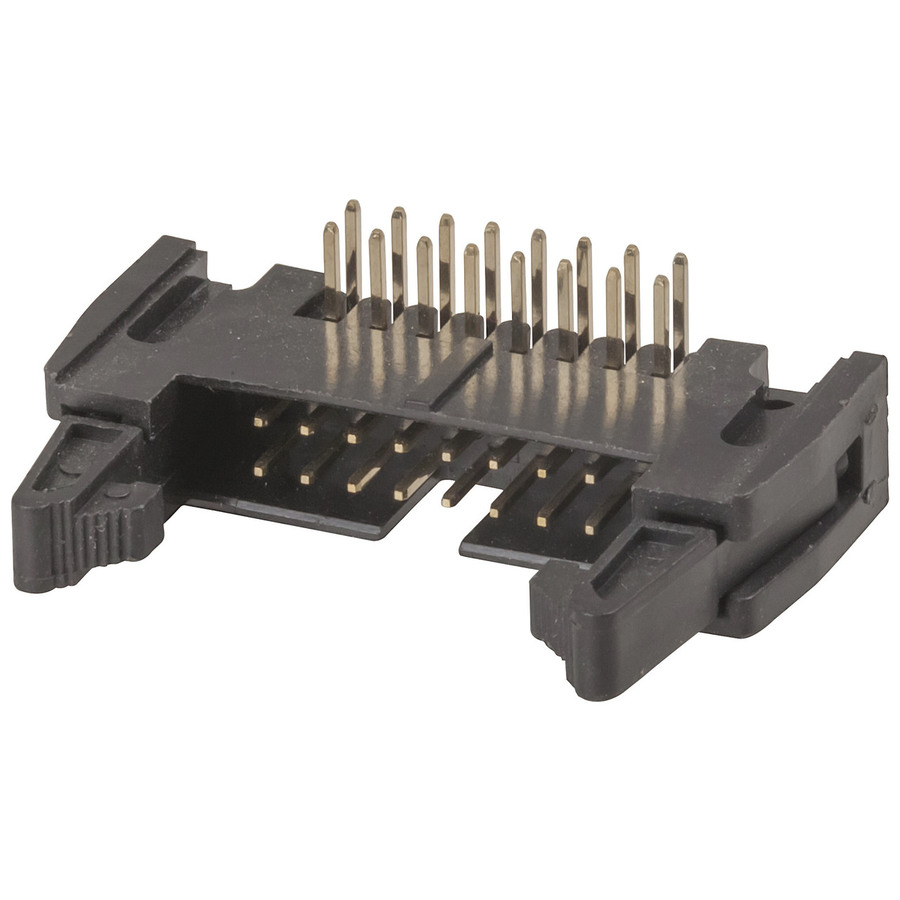

16 Pin IDC Locking Right Angle Header
16 Pin IDC Locking Right Angle Header

CAT. No. PP1154

16 Pin IDC Locking Right Angle Header
product image thumb

16 Pin IDC Locking Right Angle Header

$1.75
Locking right angle 16 pin IDC plug

Please call (02) 4782 6943

Description

Horizontal facing 16 pin IDC plug, suitable for PCB mounting. Includes locking mechanism.

Dimensions (mm)

PINS    A     B     C     D

16    39.5  18   29.5   25.5


    Specifications

    Header Connections

    Type
    		 Double Row Header
    Right Angle Mount
    Device
    		 Plug
    Pin Spacing
    		 2.54mm (0.1")
    Number of Pins
    		 16pc
    Pin Material
    		 Gold Plated
    Attachment Method
    		 IDC
    header locking

    Product Mounting

    Mounting Method
    		 PCB

    Packaged Dimensions

    Packaged Length
    		 4cm
    Packaged Width
    		 1.2cm
    Packaged Weight
    		 0.005kg
    Packaged Volume
    		 0.01296l
    Packaged Height
    		 2.7cm

    Product Availability

    Availability
    		 Stocked item
