6 Pin MULTI Pin Plug Socket
6 Pin MULTI Pin Plug Socket

CAT. No. PP2024

6 Pin MULTI Pin Plug Socket
product image thumb

6 Pin MULTI Pin Plug Socket

$6.95
Nylon Line Plug and Socket Assembly. Included in the assembly along with pins of both gender.- 6 PIN... These connectors are similar to the Molex 250 series

Please call (02) 4782 6943

Description

These connectors are suitable for high current/high density, wire-to-wire or wire-to-board applications. They are suitable for both power and signal connections.

Features:
• Fully isolated terminals
• Positive housing locks
• Four point of contact for reliability
• Low engagement force terminals

Applications:
• Security and alarms
• Vending and gaming machines
• White goods
• Production equipment
• Broadcast equipment
• Telecom infrastructure

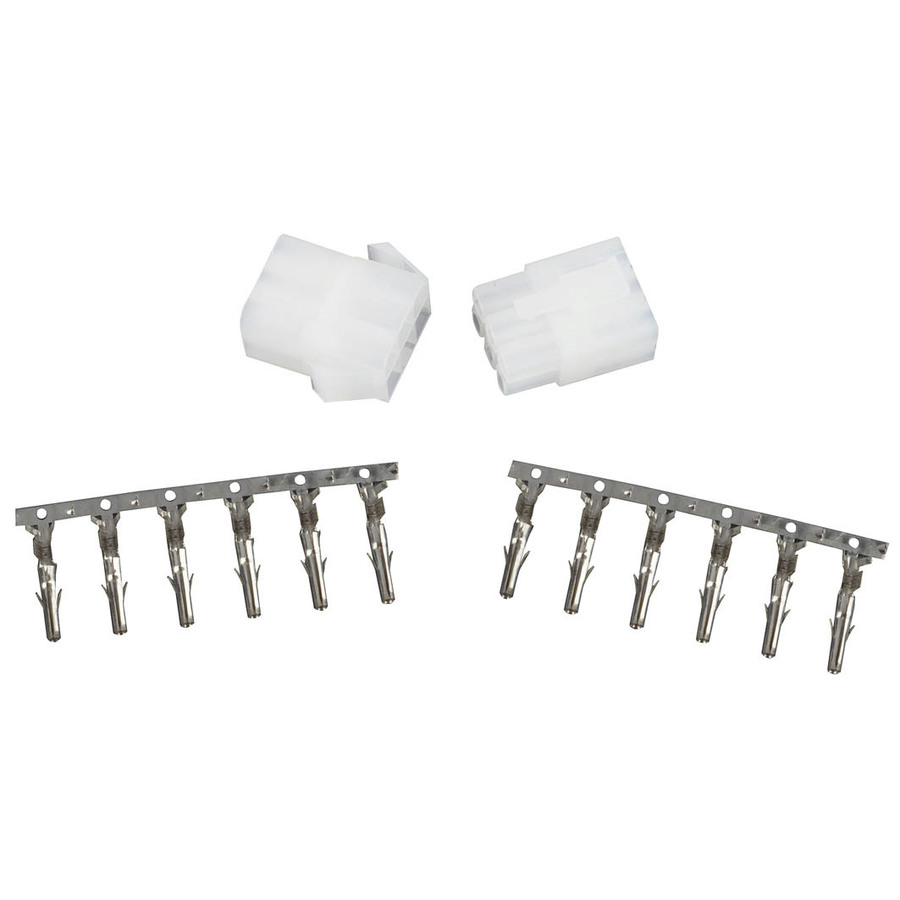

PP2024 - 6 Pin Nylon MOLEX-Type Connector
* 6 x male and 6 x female pins supplied

    Specifications

    Plug or Socket

    Contacts / Pins
    		 6pc
    Device
    		 Plug and Socket Set
    Pack Quantity
    		 1pc
    Contact Material
    		 Nickel Plated Copper
    Plug or Socket Type
    		 Molex
    Attachment Method
    		 Crimp
    Case Material
    		 Nylon
    Colour Coded
    		 White
    Locking Function
    		 Clip

    Product Mounting

    Mounting Method
    		 Line

    Packaged Dimensions

    Packaged Length
    		 8.5cm
    Packaged Width
    		 7.5cm
    Packaged Weight
    		 0.016kg
    Packaged Volume
    		 0.1275l
    Packaged Height
    		 2cm

    AC Voltage Rating

    AC Voltage rating
    		 300V

    AC Current Rating

    AC current rating
    		 15A

    DC Voltage Rating

    DC Voltage
    		 300V

    DC Current Rating

    DC current rating
    		 15A

    Product Availability

    Availability
    		 Stocked item
