8 Pin DIN Chassis Socket
8 Pin DIN Chassis Socket
8 Pin DIN Chassis Socket

CAT. No. PS0359

8 Pin DIN Chassis Socket
product image thumb
product image thumb

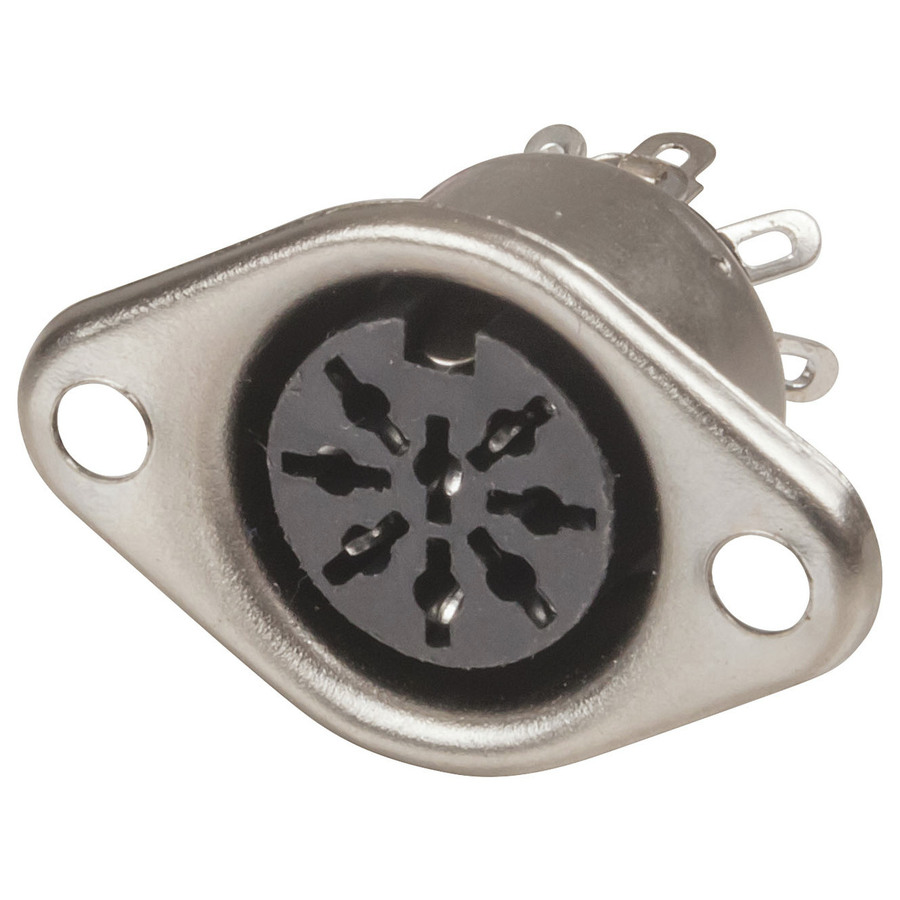

8 Pin DIN Chassis Socket

$3.25
From our range of audio, data and telecommunication terminating connectors.

Please call (02) 4782 6943

Description

8 PIN CHASSIS SOCKET

Handy Tip DIN Plugs and Sockets

Originally a German standard, these connectors are available in versions from 2 to 13 pins. Once widely used, these are now seen less on AV equipment. The 2 pin version is used for some loudspeakers and 5 pin version is still used for connecting MIDI electronic musical instruments &older PC keyboards.

    Specifications

    Plug or Socket

    Contacts / Pins
    		 8pc
    Device
    		 Socket
    Pack Quantity
    		 1pc
    Plug or Socket Type
    		 DIN 8 Pin
    Attachment Method
    		 Solder Tag
    Case Material
    		 Nickel Plated Copper

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 2cm
    Packaged Weight
    		 0.006kg
    Packaged Volume
    		 0.015l
    Packaged Height
    		 2.5cm

    Product Availability

    Availability
    		 Stocked item
