3 Pin Line Female Cannon Type Connector
3 Pin Line Female Cannon Type Connector
3 Pin Line Female Cannon Type Connector

CAT. No. PS1015

3 Pin Line Female Cannon Type Connector
product image thumb
product image thumb

3 Pin Line Female Cannon Type Connector

$7.95
From our range of power, audio, data and telecommunication adapters and terminating connectors.

Please call (02) 4782 6943

Description

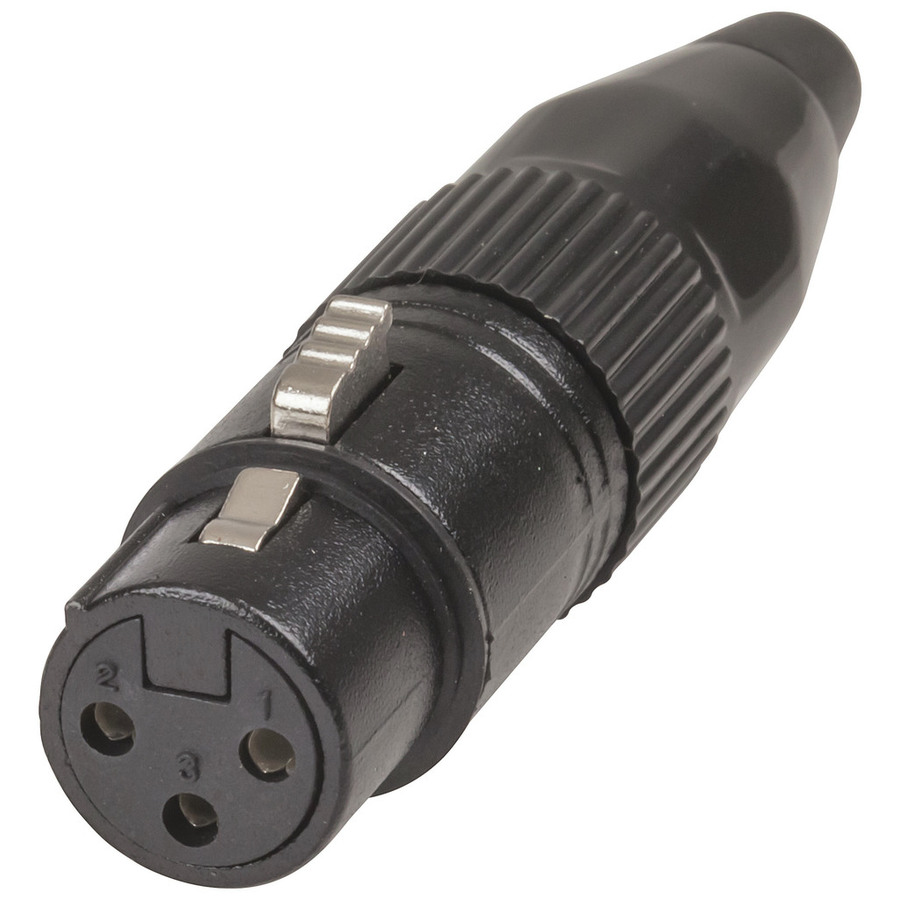

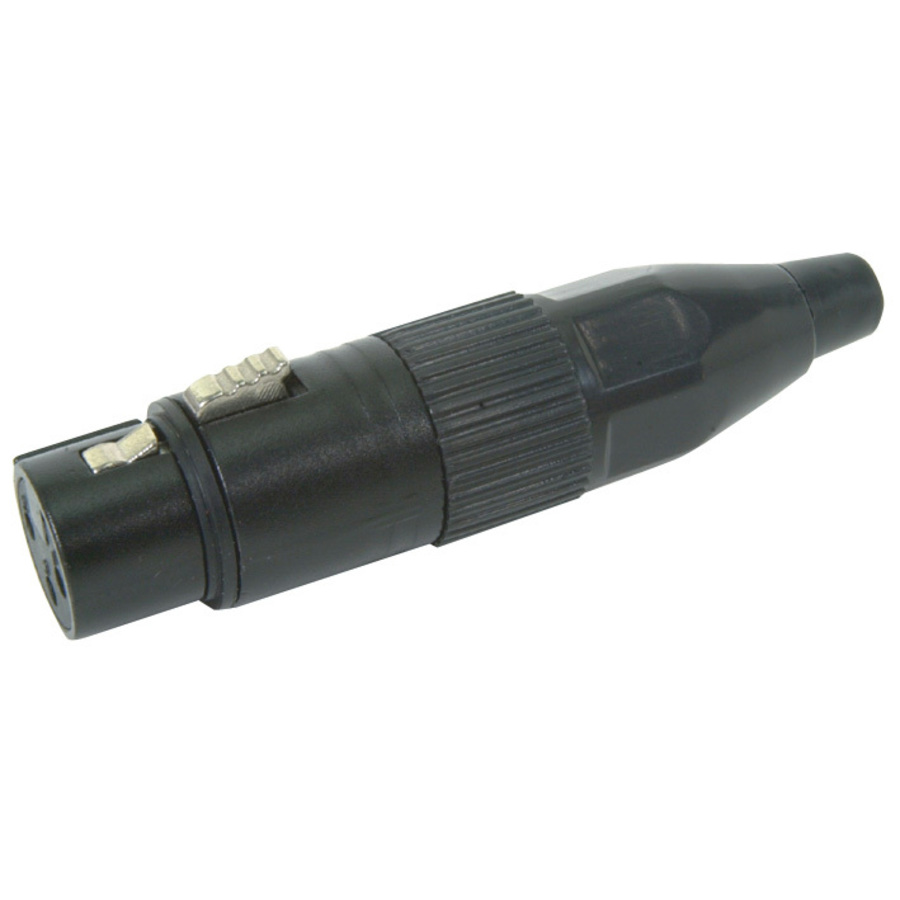

3 PIN LINE FEMALE

Handy Tip XLR Wiring

The Standard is defined by the Audio Engineering Society inAES14-1992(r1998)
Pin 1: Shield/Ground
Pin 2: Hot/in Phase / +
Pin 3: Cold / Out of Phase / -
To create an unbalanced connection, pin 1 & pin 3 are connected to ground & pin 2 carries the signal. Note that there is a lot of equipment (particularly in the US) that has pin 2 & pin 3designations reversed (i.e. 3 hot, 2 cold).Manufacturers are adopting the Standard on all new equipment.

    Specifications

    Plug or Socket

    Contacts / Pins
    		 3pc
    Device
    		 Socket
    Pack Quantity
    		 1pc
    Plug or Socket Type
    		 XLR
    Attachment Method
    		 Solder Tag
    Case Material
    		 Plastic
    Colour Coded
    		 Black

    Product Mounting

    Mounting Method
    		 Line

    Packaged Dimensions

    Packaged Length
    		 10.9cm
    Packaged Width
    		 3.4cm
    Packaged Weight
    		 0.03kg
    Packaged Volume
    		 0.077826l
    Packaged Height
    		 2.1cm

    Product Availability

    Availability
    		 Stocked item
