Waterproof IP67 XLR Line Socket
Waterproof IP67 XLR Line Socket

CAT. No. PS1017

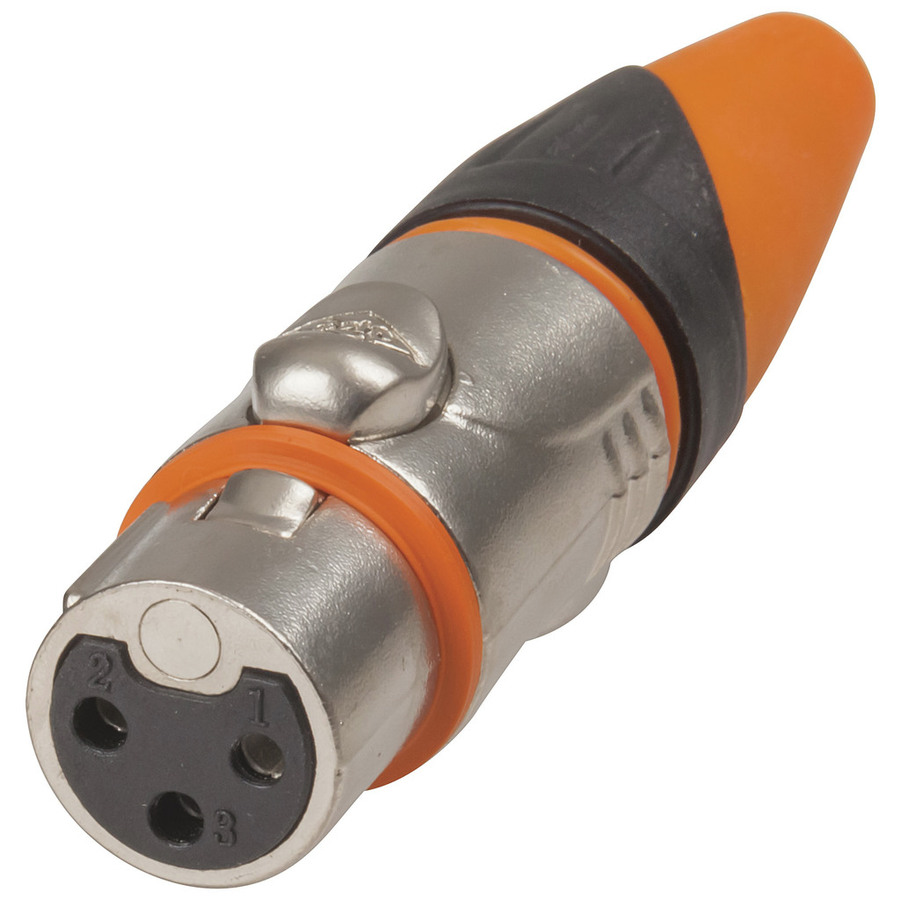

Waterproof IP67 XLR Line Socket
product image thumb

Waterproof IP67 XLR Line Socket

$13.5
IP67 waterproof socket in the style of a Cannon type connector.

Please call (02) 4782 6943

Description

A matching IP67 waterproof socket suitable for harsh environments. Great for use with PA gear and cabling that are used in outdoor conditions.



Also Available:

PP-1013

Waterproof IP67 XLR Line Plug


Handy Tip XLR Wiring

The Standard is defined by the Audio Engineering Society inAES14-1992(r1998)
Pin 1: Shield/Ground
Pin 2: Hot/in Phase / +
Pin 3: Cold / Out of Phase / -
To create an unbalanced connection, pin 1 & pin 3 are connected to ground & pin 2 carries the signal. Note that there is a lot of equipment (particularly in the US) that has pin 2 & pin 3designations reversed (i.e. 3 hot, 2 cold).Manufacturers are adopting the Standard on all new equipment.

    Specifications

    Plug or Socket

    Contacts / Pins
    		 3pc
    Device
    		 Socket
    Pack Quantity
    		 1pc
    Plug or Socket Type
    		 XLR
    Attachment Method
    		 Solder Tag
    Case Material
    		 Metal

    Product Mounting

    Mounting Method
    		 Line

    Ingress Protection Rating

    IP Rating certificate

    Packaged Dimensions

    Packaged Length
    		 11.2cm
    Packaged Width
    		 8cm
    Packaged Weight
    		 0.04kg
    Packaged Volume
    		 0.018l
    Packaged Height
    		 2.3cm

    Product Availability

    Availability
    		 Stocked item
