3 Pin Right Angle Cannon Type Connector
3 Pin Right Angle Cannon Type Connector

CAT. No. PS1022

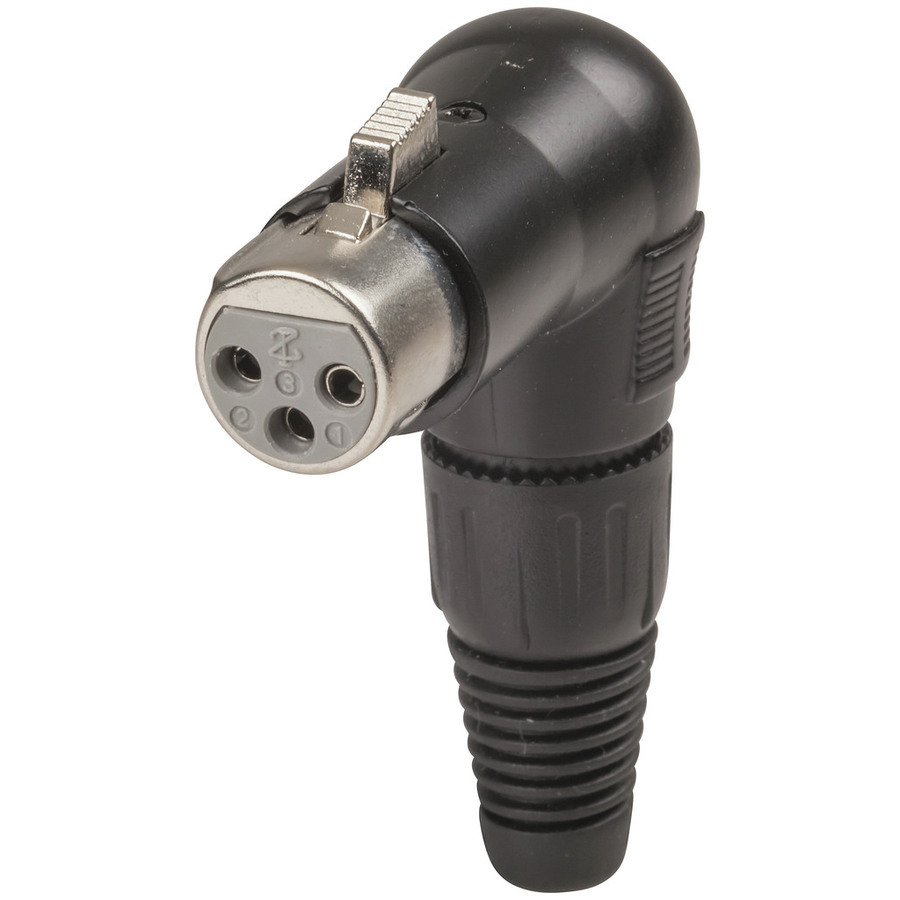

3 Pin Right Angle Cannon Type Connector
product image thumb

3 Pin Right Angle Cannon Type Connector

$14.95
From our range of data, audio and telecommunication terminating connectors.

Please call (02) 4782 6943

Description

Line Female.

Handy Tip XLR Wiring

The Standard is defined by the Audio Engineering Society inAES14-1992(r1998)
Pin 1: Shield/Ground
Pin 2: Hot/in Phase / +
Pin 3: Cold / Out of Phase / -
To create an unbalanced connection, pin 1 & pin 3 are connected to ground & pin 2 carries the signal. Note that there is a lot of equipment (particularly in the US) that has pin 2 & pin 3designations reversed (i.e. 3 hot, 2 cold).Manufacturers are adopting the Standard on all new equipment.

    Specifications

    Plug or Socket

    Contacts / Pins
    		 3pc
    Right Angled
    Device
    		 Socket
    Pack Quantity
    		 1pc
    Contact Material
    		 Metal
    Plug or Socket Type
    		 XLR
    Attachment Method
    		 Solder Tag
    Case Material
    		 Plastic
    Colour Coded
    		 Black

    Product Mounting

    Mounting Method
    		 Line

    Packaged Dimensions

    Packaged Length
    		 14cm
    Packaged Width
    		 9.5cm
    Packaged Weight
    		 0.075kg
    Packaged Volume
    		 0.266l
    Packaged Height
    		 2cm

    Product Availability

    Availability
    		 Stocked item
