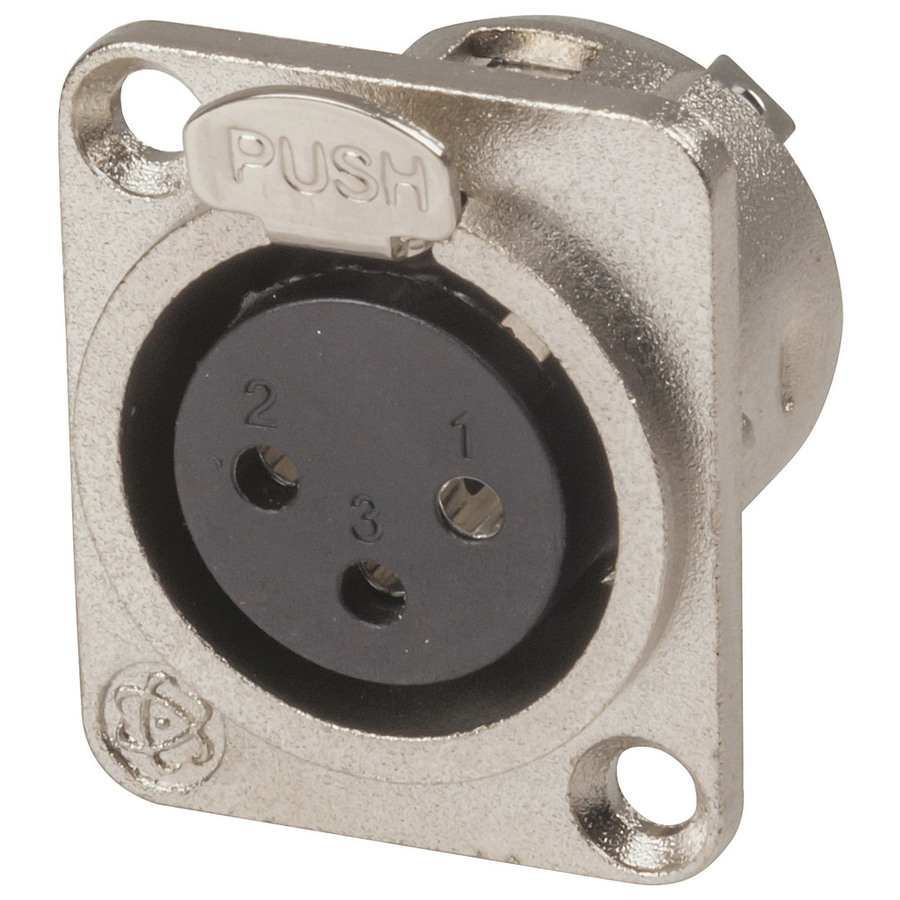

3 Pin Small Size Chassis Female Cannon Type Connector
3 Pin Small Size Chassis Female Cannon Type Connector

CAT. No. PS1024

3 Pin Small Size Chassis Female Cannon Type Connector
product image thumb

3 Pin Small Size Chassis Female Cannon Type Connector

$9.95
- Hole cutout 24mm.- Width 26mm- Height 31mm...

Please call (02) 4782 6943

Description

Hole cutout 24mm

Handy Tip XLR Wiring

The Standard is defined by the Audio Engineering Society inAES14-1992(r1998)
Pin 1: Shield/Ground
Pin 2: Hot/in Phase / +
Pin 3: Cold / Out of Phase / -
To create an unbalanced connection, pin 1 & pin 3 are connected to ground & pin 2 carries the signal. Note that there is a lot of equipment (particularly in the US) that has pin 2 & pin 3designations reversed (i.e. 3 hot, 2 cold).Manufacturers are adopting the Standard on all new equipment.

    Specifications

    Plug or Socket

    Contacts / Pins
    		 3pc
    Device
    		 Socket
    Pack Quantity
    		 1pc
    Plug or Socket Type
    		 XLR
    Attachment Method
    		 Solder Tag
    Case Material
    		 Metal

    Product Mounting

    Mounting Method
    		 Panel

    Packaged Dimensions

    Packaged Length
    		 7.8cm
    Packaged Width
    		 5.6cm
    Packaged Weight
    		 0.022kg
    Packaged Volume
    		 0.179088l
    Packaged Height
    		 4.1cm

    Product Availability

    Availability
    		 Stocked item
