CAT. No. PS4048

10A Double GPO Power Point with In-built RCD
product image thumb
product image thumb
product image thumb

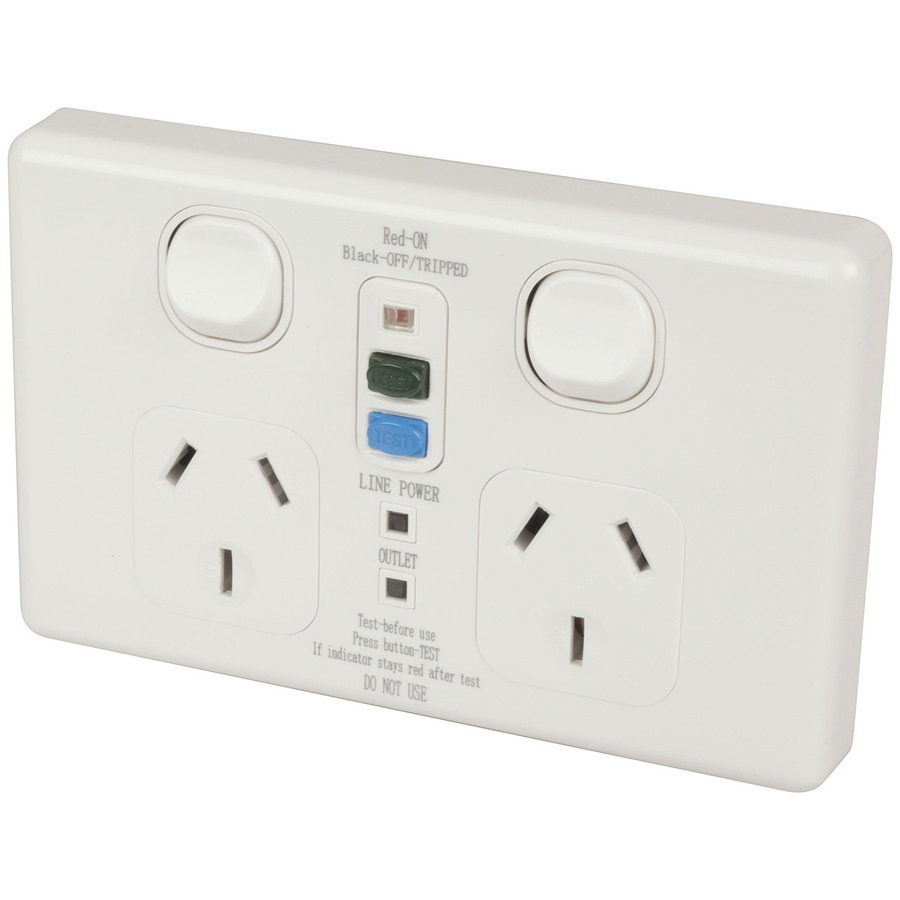

10A Double GPO Power Point with In-built RCD

$60.95
Double GPO with built-in RCD will deactivate the outlets when connected equipment fault occurs. Ideal for protecting local equipment in workshops or garages. - 30mA rated trip current - Meets AU/NZ safety standards

Please call (02) 4782 6943

Description

1 Year Warranty
240V Mains Power

Designed to be a direct replacement for your standard GPO fittings, combining two standard 240AC 10A mains (GPO) outlets with a built-in RCD to provide protection against electrical shock. In the event of a fault with the connected appliance or accident, such as cutting through the mains lead, the unit will provide complete isolation from mains. A test button, status indicator, and reset button allows you to check the RCD, which we recommend should be done each time before use.

Meets Australian and New Zealand safety standards.

Please Note: This item should be installed by a licenced electrician.

Features:
- Electric shock protection
- LED status indicator
- Reset and test buttons
- Line power indicator

Specifications:
CD Classified: Type II
Rated Tripping Current: 30mA
Operating Speed: <40mS Max.
L/Nin-L/Nout: 2KV
Endurance: 2000 Cycles Minute
Contact Break:  Double Pole
Standards: RCD Module-AS NZS 3190, Socket-AS NZS 3112
Minimum Back Box Depth: 35mm
Fixing Screws: M3.0 x 25mm
Cable Capacity: 4x2.5mm2,2x4mm2,1X6mm2

    Specifications

    Plug or Socket

    Device
    		 Socket
    Plug or Socket Type
    		 Mains AU/NZ 3 Pin
    Dielectric Withstanding Voltage
    		 6kV

    AC Voltage Rating

    AC Frequency
    		 50Hz
    AC Voltage rating
    		 240V

    AC Current Rating

    AC current rating
    		 20A

    Ingress Protection Rating

    IP Rating
    		 30
    Dust/Particle Ingress Protection
    		 3 - Objects > 2.5mm, Tools, thick wires etc
    Liquid/Moisture Ingress Protection
    		 0 - Not protected

    Product Dimensions

    Height
    		 76mm
    Width
    		 120mm
    Depth
    		 50mm
    Weight
    		 144g

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 14.7cm
    Packaged Width
    		 8.1cm
    Packaged Weight
    		 0.182kg
    Packaged Volume
    		 0.66679l
    Packaged Height
    		 5.6cm
    Warranty: 12 Months

    Downloads

    PS4048-manualMain.pdf
