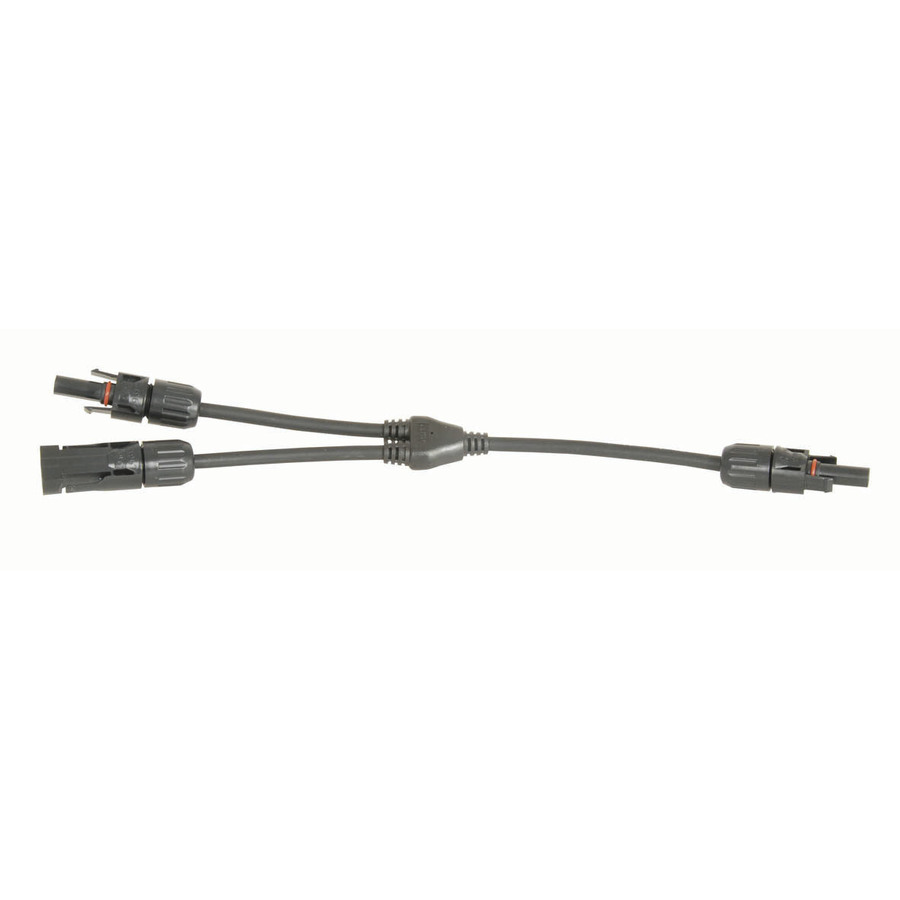

Solar Panel Y-Cable 2 Plug to 1 Socket 300mm
Solar Panel Y-Cable 2 Plug to 1 Socket 300mm

CAT. No. PS5112

Solar Panel Y-Cable 2 Plug to 1 Socket 300mm
product image thumb

Solar Panel Y-Cable 2 Plug to 1 Socket 300mm

$22.95
Used for connecting the output of two solar panels in parallel or connecting multiple panels in an array. Waterproof and UV resistant. Generally used ...

Please call (02) 4782 6943

Description

Used for connecting the output of two solar panels in parallel or connecting multiple panels in an array. Waterproof and UV resistant. Generally used on the negative pole of the panel.

Features:
• Tin plated copper contacts
• Contact resistance <5m ohm
• Housing material PPO
• TUV certified






    Specifications

    Product Dimensions

    Length
    		 30mm

    Packaged Dimensions

    Packaged Length
    		 36cm
    Packaged Width
    		 5.6cm
    Packaged Weight
    		 0.072kg
    Packaged Volume
    		 0.52416l
    Packaged Height
    		 2.6cm

    Plug or Socket

    Pin Length
    		 4mm
    Right Angled
    Device
    		 Plug and Socket Set
    Contact Material
    		 Plated Metal
    Case Material
    		 Plastic

    Ingress Protection Rating

    IP Rating
    		 IP67
    Dust/Particle Ingress Protection
    		 6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    		 7 - Immersion up to 1m

    Operating Temperature

    Operating Temperature
    		 -40°C-90°C

    Product Availability

    Availability
    		 Stocked item
