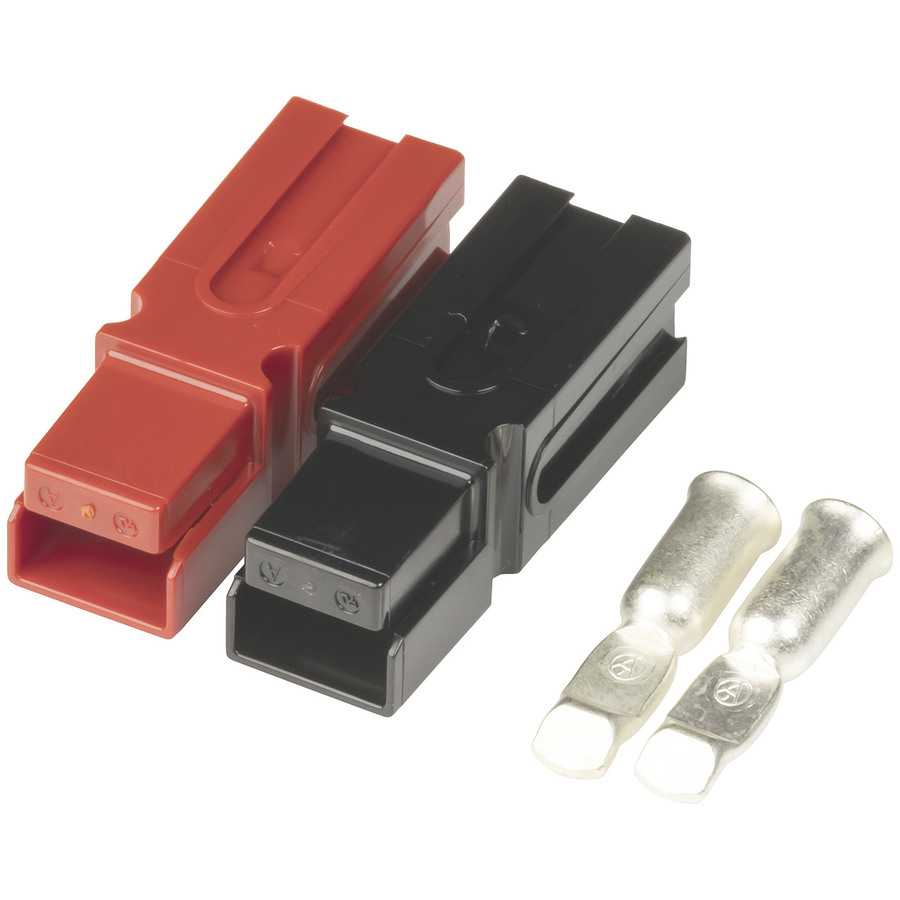

These industry standard connectors are used in automotive, marine, aviation and mining applications and are used widely in industry. They are genderless which means that there is no separate plug and socket and can be easily stacked to make custom configurations. UL rated to 75A DC,The contact can be crimped with suitable dies but we recommend sweat soldering for non-production applications.

Specifications:
• Contact Wire Size:13.3mm² (6AWG)
• Max Wire Insulation Diameter: 1.3 - 13.3mm
• Contact Retention Force: 9kgs (20lbs)
• Operating Temperature: -40 to +125°C
• Insertion Life (Cycles): 10,000 no load / 250 hot load (35A @ 12VDC)
• Flammability: UL94 V-O
