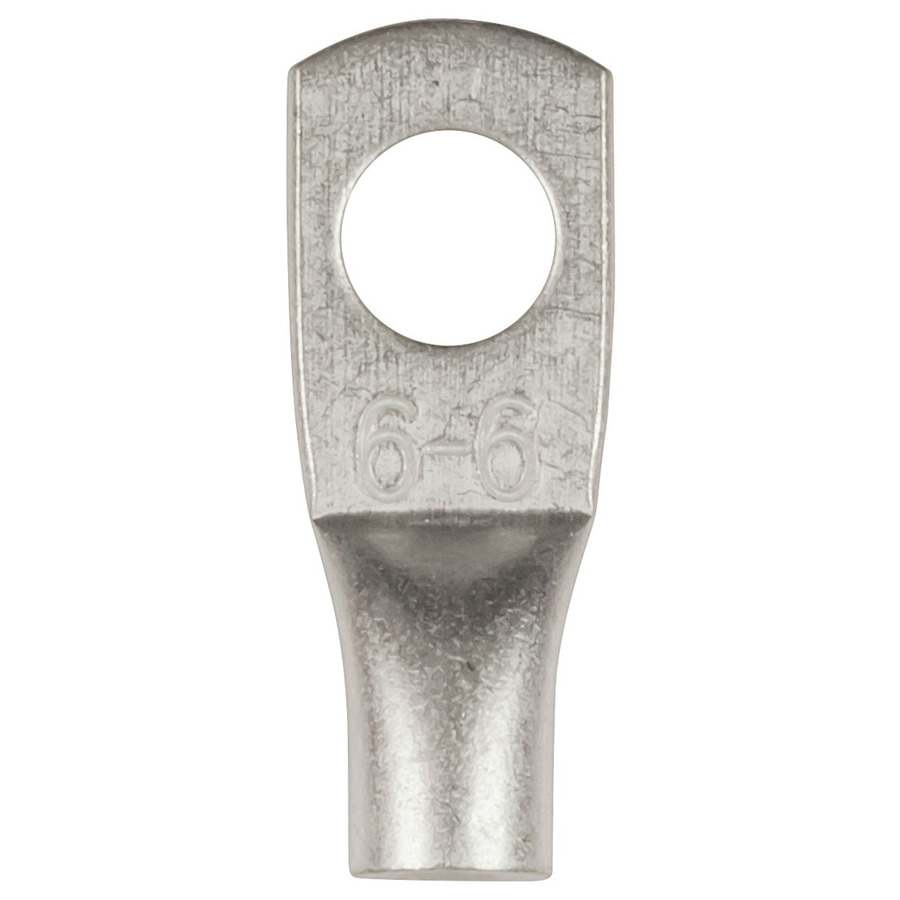

6mm Non-Insulated Eye Terminal 6mm2 - Pk 8
6mm Non-Insulated Eye Terminal 6mm2 - Pk 8

CAT. No. PT4934

6mm Non-Insulated Eye Terminal 6mm2 - Pk 8
product image thumb

6mm Non-Insulated Eye Terminal 6mm2 - Pk 8

$6.95
Non-insulated eye terminals for a variety of battery, solar or automotive applications. Hex crimp fitting for connection to cable.

Please call (02) 4782 6943

Description

Non-insulated eye terminals for a variety of electronic or automotive applications. Hex crimp fitting for connection to cable. Current rating: 35A


    Specifications

    Quick Connect (QC) Lugs

    Insulation
    		 Non Insulated
    Terminal Size
    		 6mm
    Wire Size (Cross Section)
    		 6mm²
    Device
    		 Terminal
    Internal Terminal Size (Eye / Fork)
    		 6mm
    Pack Quantity
    		 8pc
    Cable Entry Diameter
    		 6mm
    Contact Material
    		 Tin Plated Copper
    Type of quick connector
    		 Eye
    Wire Gauge
    		 12AWG-10AWG

    Product Dimensions

    Length
    		 26mm
    Height
    		 6mm
    Width
    		 10mm

    Packaged Dimensions

    Packaged Length
    		 11.9cm
    Packaged Width
    		 6.5cm
    Packaged Weight
    		 0.028kg
    Packaged Volume
    		 0.12376l
    Packaged Height
    		 1.6cm

    Product Availability

    Availability
    		 Stocked item
