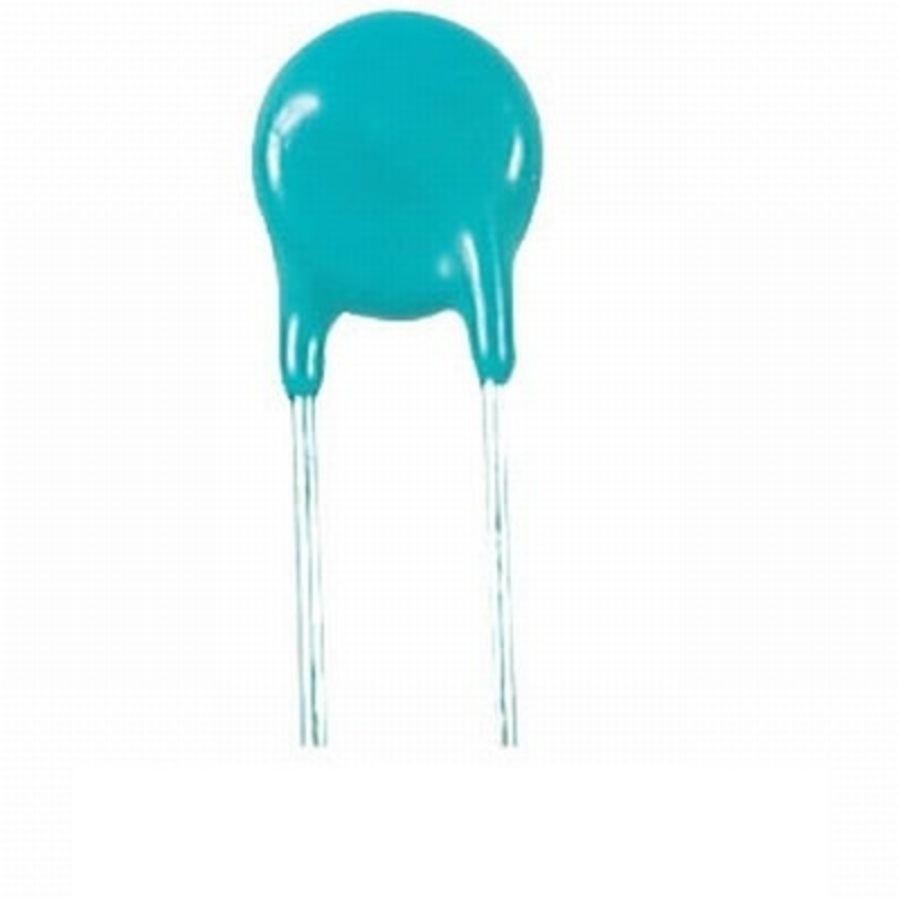

100Ω Epoxy Dip NTC Thermistor
100Ω Epoxy Dip NTC Thermistor

CAT. No. RN3432

100Ω Epoxy Dip NTC Thermistor
product image thumb

100Ω Epoxy Dip NTC Thermistor

$2.4
These devices are made of a special ceramic material which changes resistance value rapidly with temperature change.

Please call (02) 4782 6943

Description

These devices are made of a special ceramic material which changes resistance value rapidly with temperature change. They are commonly used to check thermal runaway with bipolar transistor amplifiers etc, but really have dozens of other uses. They are rugged and very reliable.

Features:
- Radial type, dipped epoxy
- Type-NTC Ceramic material with tinned copper lead

    Specifications

    Product Dimensions

    Diameter
    		 5mm

    Packaged Dimensions

    Packaged Length
    		 0.5cm
    Packaged Width
    		 0.2cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 3.7E-4l
    Packaged Height
    		 3.7cm

    Thermistor

    Resistance at 25°C ±10%
    		 100?
    Thermistor Temperature Range
    		 -20°C-125°C
    Temperature Coefficient
    		 Negative (NTC)
    Thermal Dissipation Constant
    		 6mW/°C

    Passive Component

    Component package
    		 Radial
    Passive mount type
    		 Through Hole
    Component Type
    		 Thermistor
    Passive connector type
    		 Solder Legs
    Pack Quantity
    		 1pc
    Passive number of legs
    		 2 count
    Pitch
    		 5mm

    Power Rating

    Maximum Power
    		 500mW

    DC Current Rating

    DC current rating
    		 200mA

    Product Availability

    Availability
    		 Stocked item
