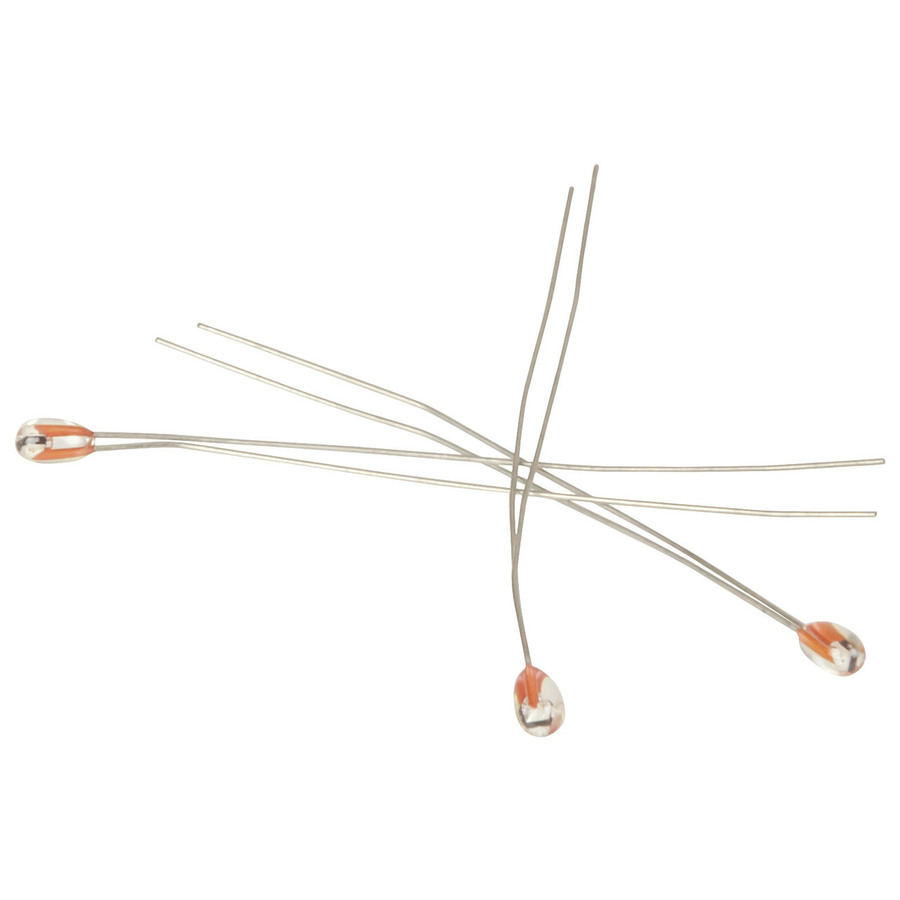

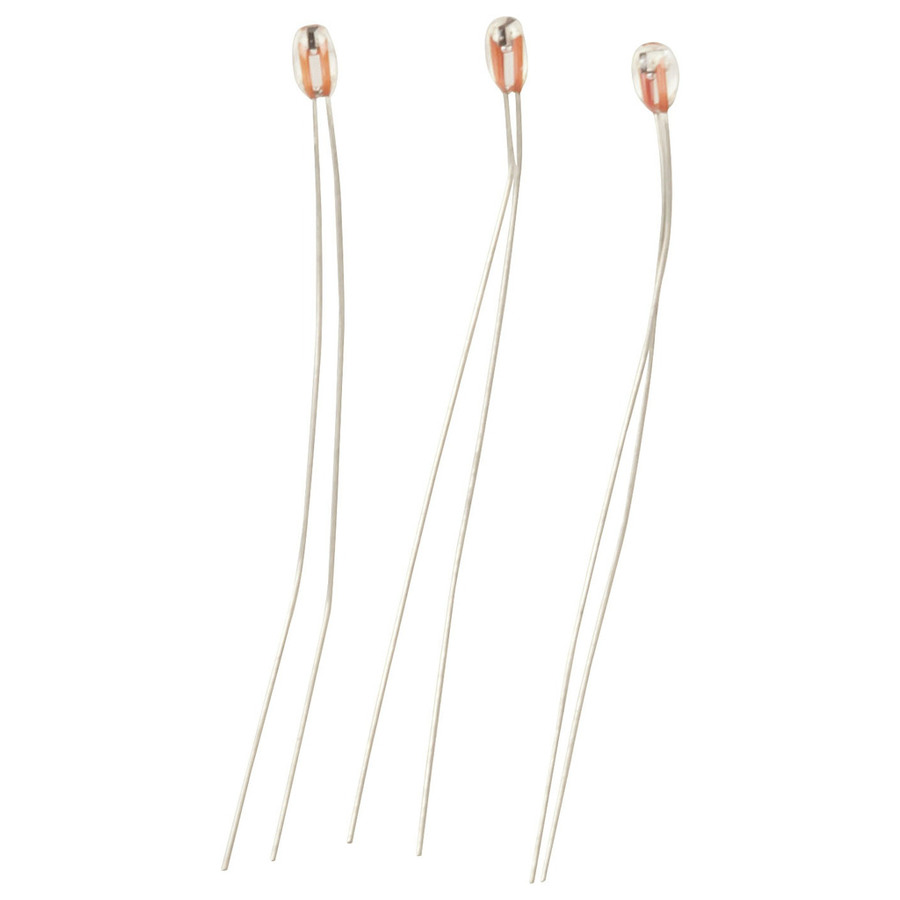

100kΩ Glass NTC Thermistor
100kΩ Glass NTC Thermistor
100kΩ Glass NTC Thermistor

CAT. No. RN3446

100kΩ Glass NTC Thermistor
product image thumb
product image thumb

100kΩ Glass NTC Thermistor

$5.95
Compatible with the hot-end thermistors used in many 3D printers.

Please call (02) 4782 6943

Description

This high temperature NTC thermistor is suitable for operation up to 250 degrees, and is compatible with the hot-end thermistors used in many 3D printers.

Features:
Sealed glass body with small bead for fast response

    Specifications

    Thermistor

    Resistance at 25°C ±10%
    		 100k?
    Thermistor Temperature Range
    		 -40°C-250°C
    Temperature Coefficient
    		 Negative (NTC)
    Thermal Dissipation Constant
    		 1mW/°C

    Passive Component

    Passive mount type
    		 Through Hole
    Component Type
    		 Thermistor
    Passive connector type
    		 Solder Legs
    Nominal Leg Length
    		 30mm
    Pack Quantity
    		 1pc
    Passive number of legs
    		 2 count

    Product Dimensions

    Height
    		 4.1mm
    Diameter
    		 1.7mm

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 0.1cm
    Packaged Weight
    		 4.0E-4kg
    Packaged Volume
    		 3.0E-5l
    Packaged Height
    		 0.1cm

    Downloads

      Articles
      Articles

    RN3446-dataSheetMain.pdf
