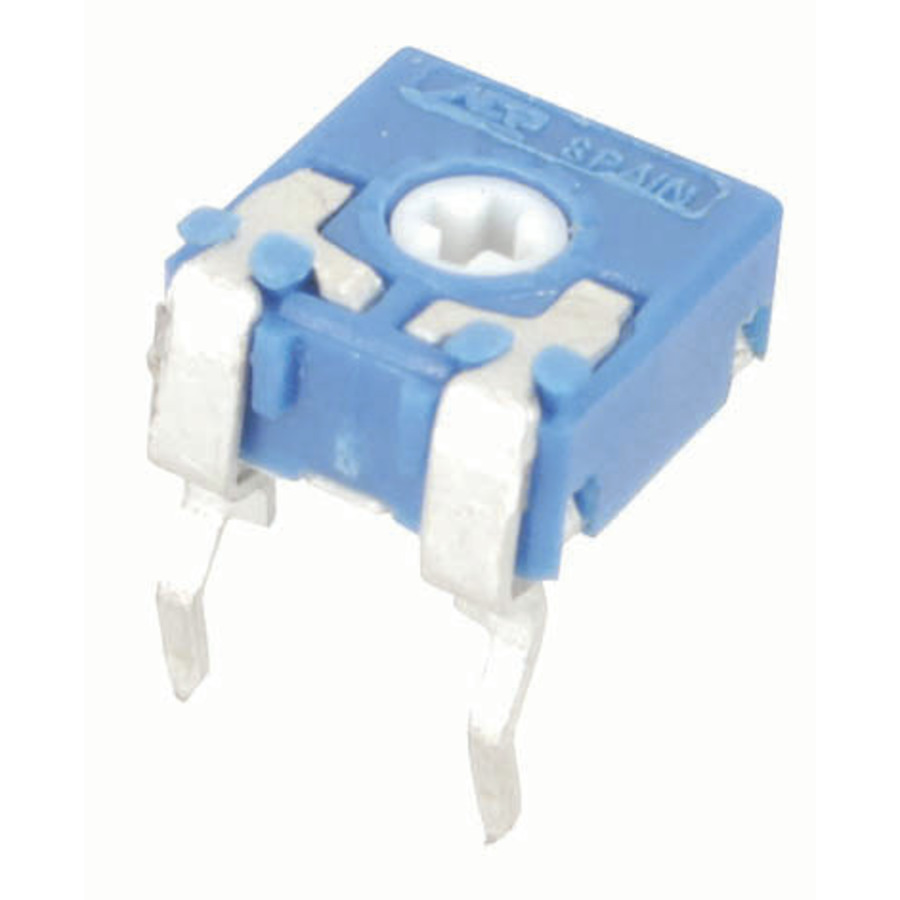

200 ohm Piher Horizontal Trimpot
200 ohm Piher Horizontal Trimpot
200 ohm Piher Horizontal Trimpot

CAT. No. RT4350

200 ohm Piher Horizontal Trimpot
product image thumb
product image thumb

200 ohm Piher Horizontal Trimpot

$1.45
At last, a range of top quality sealed mini, standard sized trimpots.- Dust proof enclosure - Polyester substrate - Wiper positioned at 50% - Accident...

Please call (02) 4782 6943

Description

At last, a range of top quality sealed mini, standard sized trimpots.- Dust proof enclosure - Polyester substrate - Wiper positioned at 50% - Accidental rotor movement protected.Specifications: - Max voltage 100V - Nom power 0.1W - Linear curve - Tolerance +/- 30% - End resistance 10.Value200

    Specifications

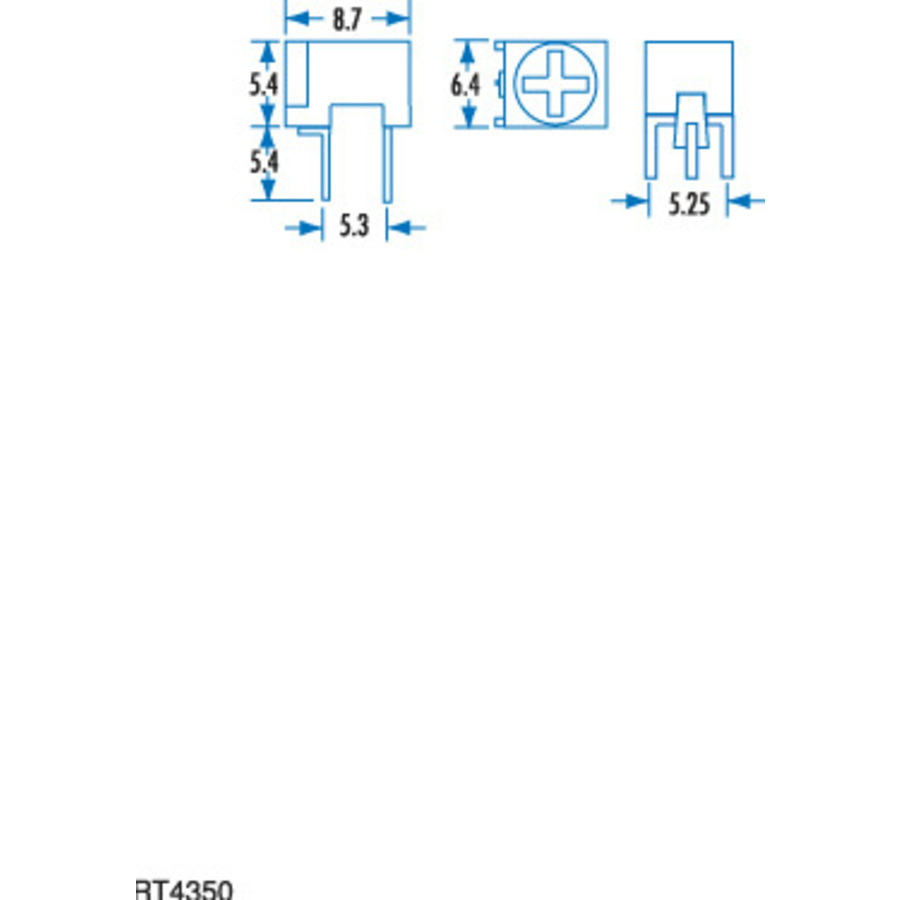

    Packaged Dimensions

    Packaged Length
    		 0.7cm
    Packaged Width
    		 0.7cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 3.92E-4l
    Packaged Height
    		 0.8cm

    Trimmer Potentiometer

    Trimpot Scredriver Slot
    		 Philips
    Trimpot Turns
    		 1 units
    Trim Pot Type
    		 Horizontal

    Passive Component

    Component package
    		 Square pack
    Passive mount type
    		 Through Hole
    Passive connector type
    		 Solder Legs
    Pack Quantity
    		 1pc
    Passive number of legs
    		 3 count
    Passive marking code
    		 Number code

    Resistance Rating

    Resistance level
    		 200?

    Power Rating

    Continuous Power
    		 0.1W

    AC Voltage Rating

    AC Voltage rating
    		 100V

    Product Availability

    Availability
    		 Stocked item
