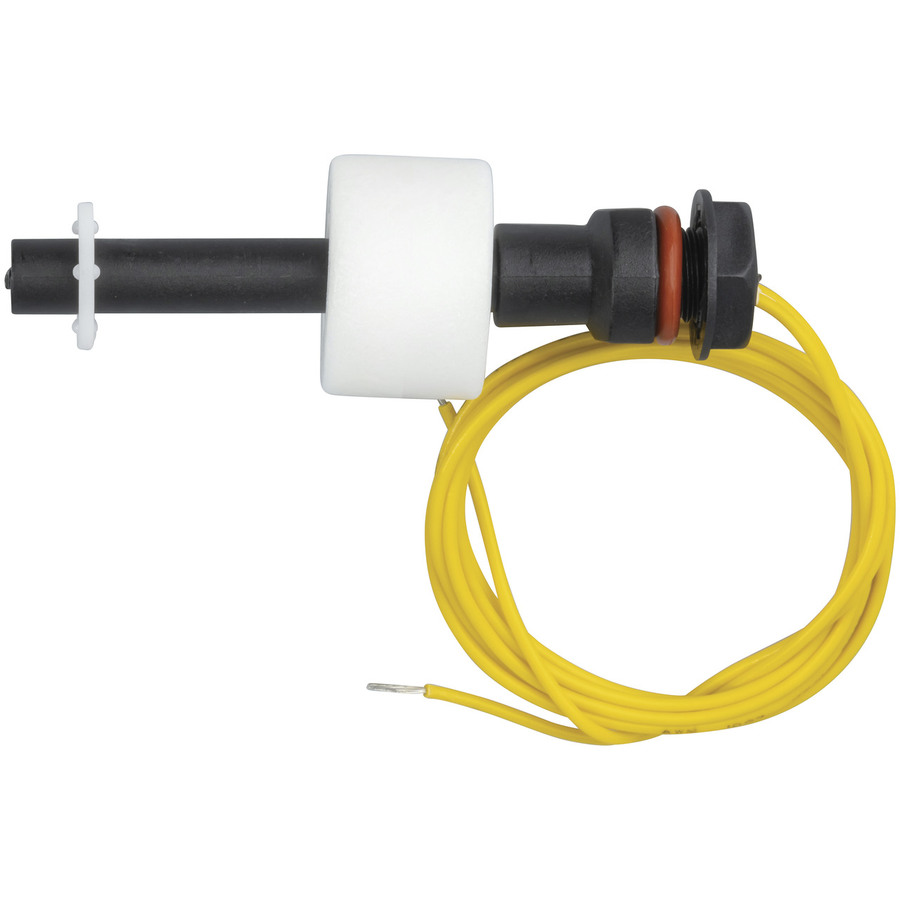

Float Switch Top Mounting (Level Detector)
Float Switch Top Mounting (Level Detector)

CAT. No. SF0922

Float Switch Top Mounting (Level Detector)
product image thumb

Float Switch Top Mounting (Level Detector)

$20.95
Fit this sensor to the lid or top cover of a tank. Mounting is via 8mm hole with a plastic locking nut and O-ring supplied. Float movement is about 20mm

Please call (02) 4782 6943

Description

1 Year Warranty

Ideal to control tank filling systems this vertical movement float switch fits quickly to the lid or top cover of a tank or other container. A mere 20mm travel distance for the float will trigger the switch ensuring you leave an air gap and don't overfill the vessel. Contacts are closed when the float is out of liquid and open when the float is elevated.

- Contact Rating: 200V 500mA
- Mounting Diameter: 8mm

    Specifications

    Electromechanical Switch

    Switch Type
    		 Float
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 1pos

    Product Mounting

    Attachment / Securing Method
    		 Collar / Nut
    Max Mount Panel Thickness
    		 4mm
    Round Mount Hole Diameter
    		 8mm
    Mounting Method
    		 Panel

    AC Voltage Rating

    AC Voltage rating
    		 200V

    AC Current Rating

    AC current rating
    		 500mA

    Product Dimensions

    Length
    		 70mm
    Diameter
    		 23mm

    Linear travel details

    Linear travel direction
    		 Bi-Direction
    Linear travel distance
    		 40mm

    Product Availability

    Availability
    		 Stocked item

    Packaged Dimensions

    Packaged Length
    		 12cm
    Packaged Width
    		 9.6cm
    Packaged Weight
    		 0.014kg
    Packaged Volume
    		 0.32256l
    Packaged Height
    		 2.8cm
    Warranty: 12 Months

    Downloads

    SF0922-dataSheetMain.pdf
