3A PCB Mount Thermal Circuit Breaker (SPST)
3A PCB Mount Thermal Circuit Breaker (SPST)
3A PCB Mount Thermal Circuit Breaker (SPST)
3A PCB Mount Thermal Circuit Breaker (SPST)

CAT. No. SF2283

3A PCB Mount Thermal Circuit Breaker (SPST)
product image thumb
product image thumb
product image thumb

3A PCB Mount Thermal Circuit Breaker (SPST)

$7.95

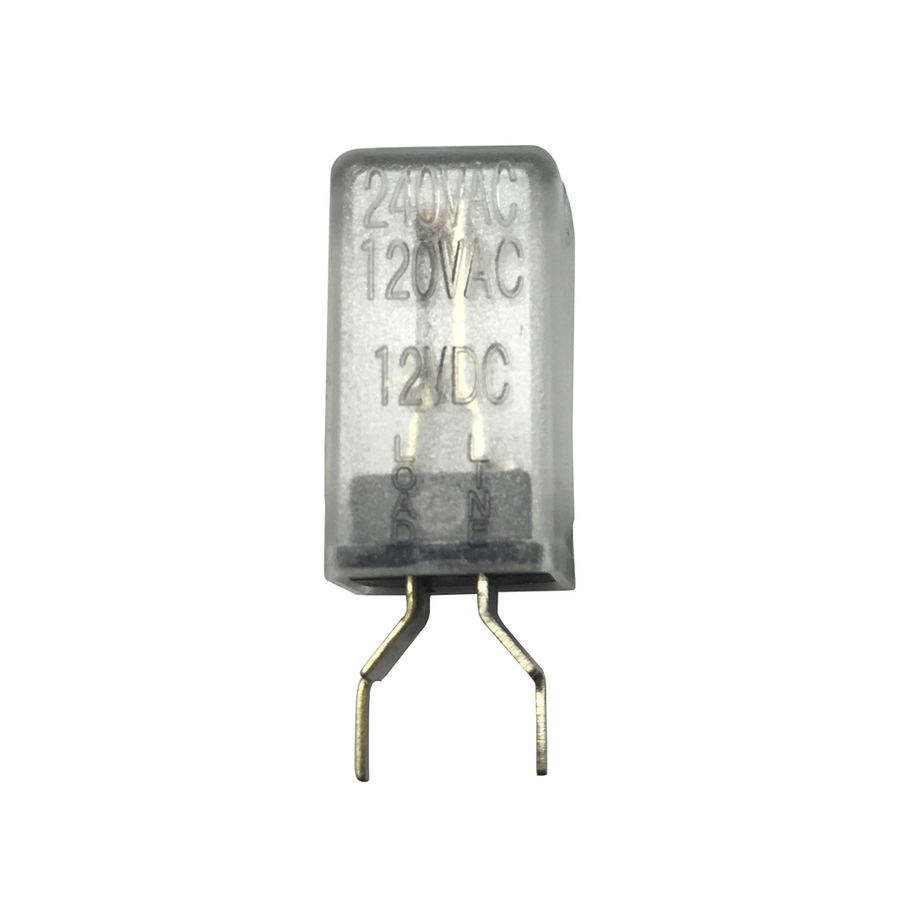

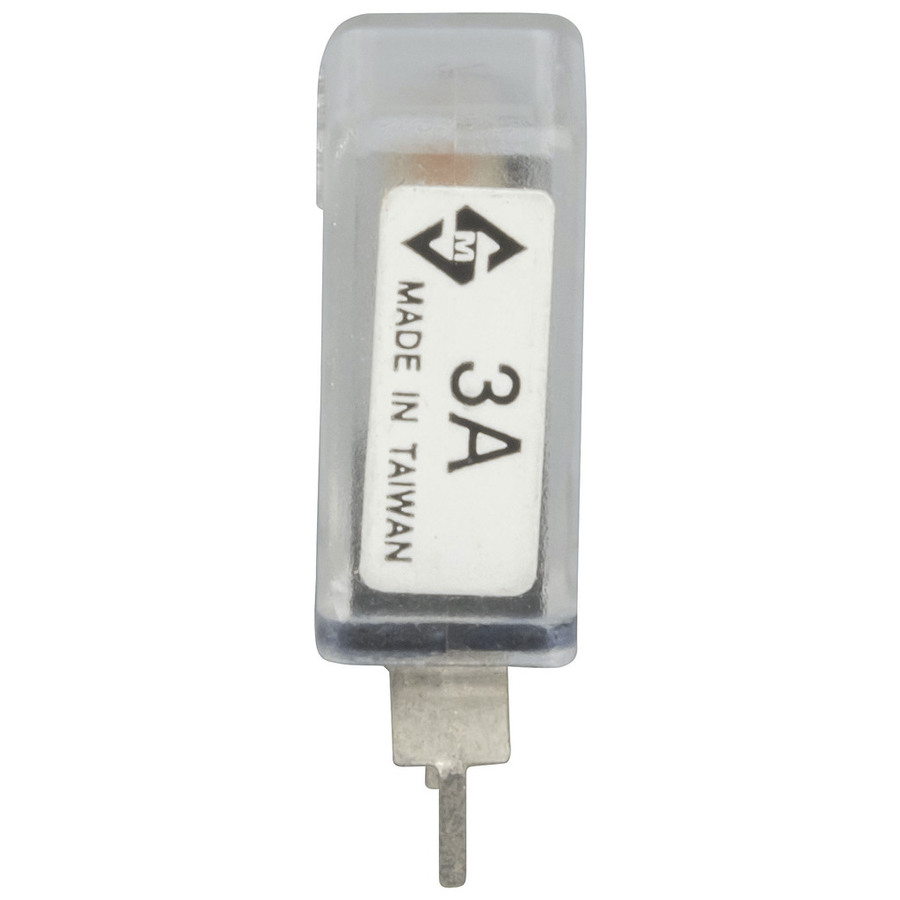

Miniature automatic resetting thermal type breaker that solders directly into a PCB rated at 3 amps.

Please call (02) 4782 6943

Description

Miniature auto-resetting thermal type units that solder directly into a PCB.
- Ideal for protecting power supplies, amplifier output transistors, appliances etc.
- Slow response time is ideal when capricious tripping would be a nuisance.

Features:
Calibration(at 25°C):
100% of current rating; will not trip.
101- 170% of current rating increasing likelihood of trip.
175- 199% of current rating trip within 1 hour.
200% of current rating within 1 minute.
+200% of current rating from 1 minute to seconds.

Contact Resistance: 0.075ohms

    Specifications

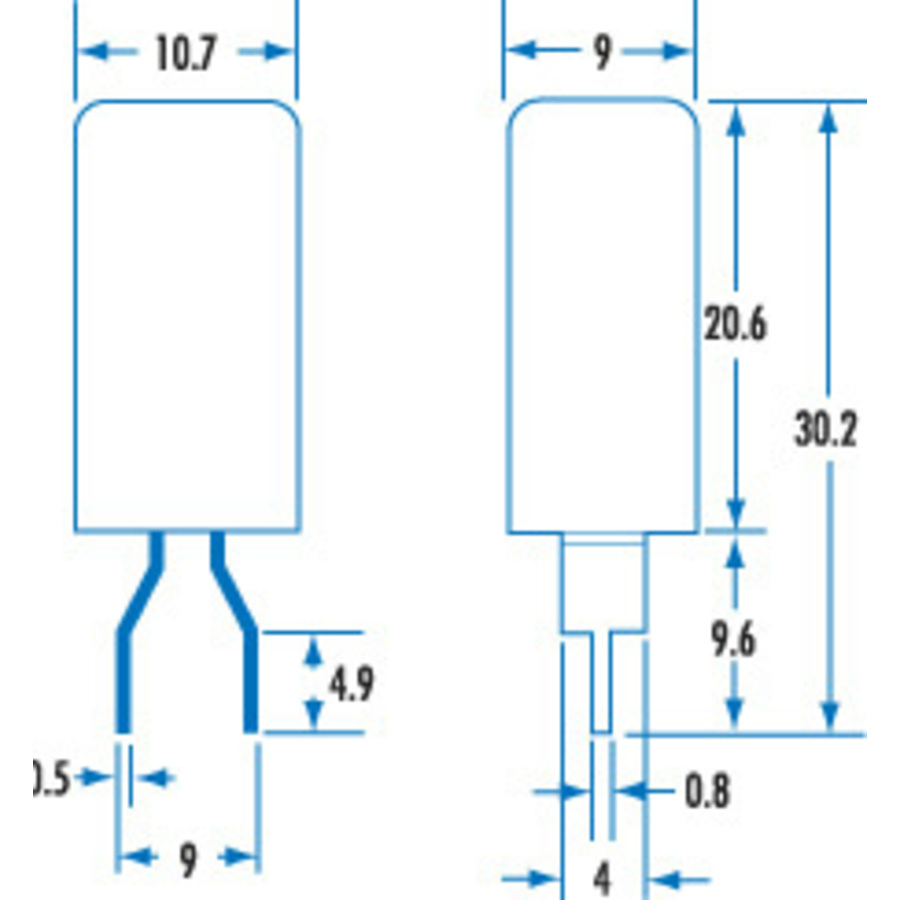

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 0.7cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0.00189l
    Packaged Height
    		 0.9cm

    Circuit Breakers

    Circuit Breaker Di-electric Strength
    		 1500VAC 1 Minute
    Circuit Breaker Contact Endurance
    		 >1000 cycles, @ 150% of contact rating
    Circuit Breaker Current
    		 3A
    Circuit Breaker Type
    		 PCB Mount
    Circuit Breaker Pole Count
    		 1 pole
    Circuit Breaker DC Voltage
    		 12V
    Circuit Breaker AC Voltage
    		 125V
    Circuit Breaker Resistance
    		 0.075?
