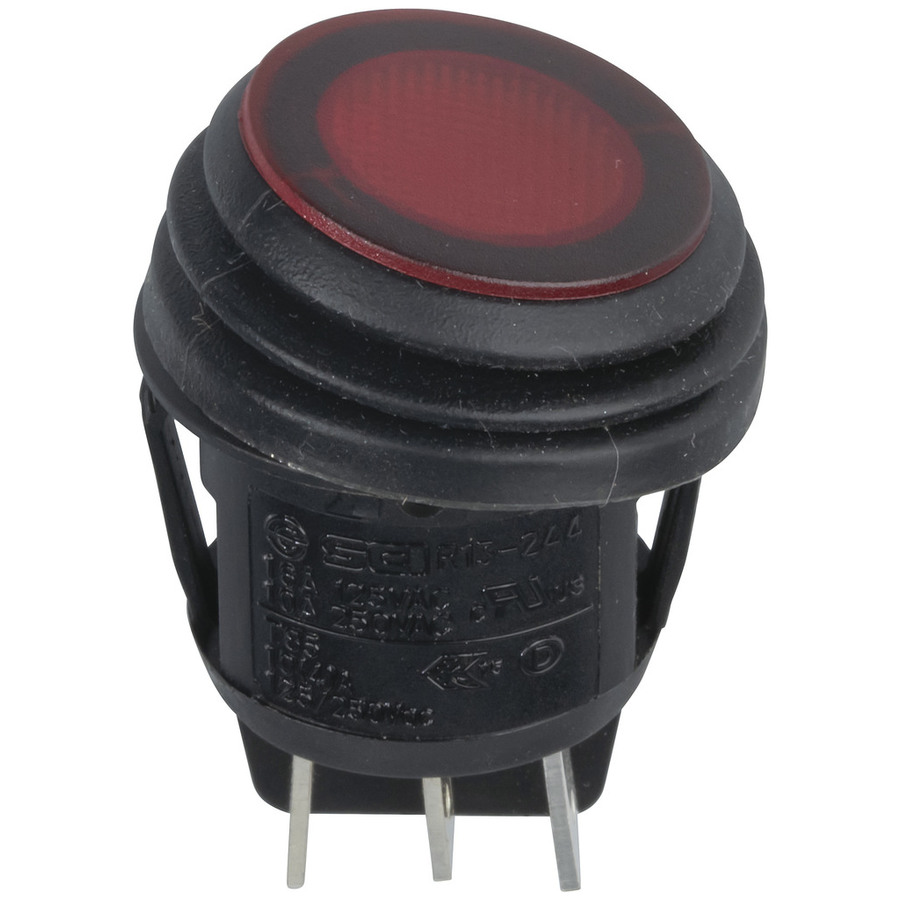

Round IP65 Rated Rocker Switch DPDT 250VAC 10A
Round IP65 Rated Rocker Switch DPDT 250VAC 10A

CAT. No. SK0967

Round IP65 Rated Rocker Switch DPDT 250VAC 10A
product image thumb

Round IP65 Rated Rocker Switch DPDT 250VAC 10A

$11.25
DPDT round rocker switches with mini spade QC lugs. Sealed with a rubber boot and IP65 rated.Two types available:Black: SK-0966Red (illuminated): SK-0...

Please call (02) 4782 6943

Description

DPDT round rocker switches with mini spade QC lugs. Sealed with a rubber boot and IP65 rated.

Two types available:
Black: SK-0966
Red (illuminated): SK-0967


    Specifications

    Electromechanical Switch

    Switch Function
    		 Locking On/Off
    Pole Throw Type
    		 DPDT
    Dielectric Strength
    		 1500V
    Switch Connection
    		 Spade Terminals
    Switch Type
    		 Rocker
    Poles / Contacts
    		 2 pole
    Throws / Positions
    		 2pos
    Switch Colour Coded
    		 Black
    Contact Resistance
    		 50m?
    Mechanism Material
    		 Plastic

    Product Mounting

    Attachment / Securing Method
    		 Snap-in
    Round Mount Hole Diameter
    		 20mm
    Mounting Method
    		 Panel

    AC Voltage Rating

    AC Voltage rating
    		 250V

    AC Current Rating

    AC current rating
    		 10A

    In-built Illumination

    Illumination Colour
    		 Red

    Ingress Protection Rating

    Dust/Particle Ingress Protection
    		 6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    		 5 - Water jets

    Product Dimensions

    Height
    		 35.2mm
    Diameter
    		 25mm

    Packaged Dimensions

    Packaged Length
    		 5cm
    Packaged Width
    		 7cm
    Packaged Weight
    		 0.01kg
    Packaged Volume
    		 0.0875l
    Packaged Height
    		 2.5cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SK0967-dataSheetMain.pdf
