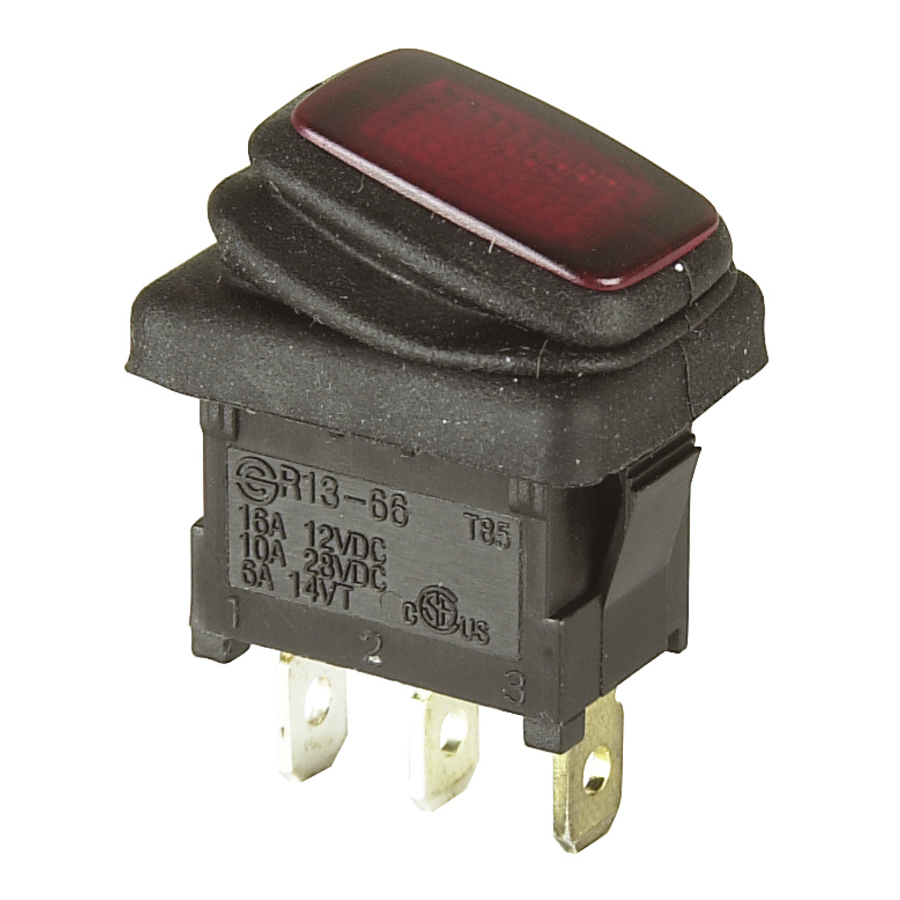

IP65 Rated Mini Illuminated Rocker Switch SPST 16A 12VDC
IP65 Rated Mini Illuminated Rocker Switch SPST 16A 12VDC

CAT. No. SK0969

IP65 Rated Mini Illuminated Rocker Switch SPST 16A 12VDC
product image thumb

IP65 Rated Mini Illuminated Rocker Switch SPST 16A 12VDC

$12.95
SPST mini rocker switches with spade QC lugs. Sealed with a rubber boot and IP65 rated.Two types available:Black: SK-0968Red (illuminated): SK-0969Cut...

Please call (02) 4782 6943

Description

SPST mini rocker switches with spade QC lugs. Sealed with a rubber boot and IP65 rated.

Two types available:
Black: SK-0968
Red (illuminated): SK-0969


    Specifications

    Electromechanical Switch

    Switch Function
    		 Locking On/Off
    Pole Throw Type
    		 SPST
    Dielectric Strength
    		 1000V
    Switch Connection
    		 Spade Terminals
    Switch Type
    		 Rocker
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 1pos
    Switch Colour Coded
    		 Black
    Contact Resistance
    		 50?
    Insulation Resistance
    		 100M?
    Mechanism Material
    		 Plastic

    Product Mounting

    Square Mount Hole Width
    		 12mm
    Attachment / Securing Method
    		 Snap-in
    Mounting Method
    		 Panel
    Square Mount Hole Height
    		 19mm

    DC Voltage Rating

    DC Voltage
    		 12V

    DC Current Rating

    DC current rating
    		 16A

    Ingress Protection Rating

    Dust/Particle Ingress Protection
    		 5 - Dust protected, protected but some dust may enter
    Liquid/Moisture Ingress Protection
    		 6 - Powerful water jets

    In-built Illumination

    Type
    		 5mm Standard LED
    Illumination Colour
    		 Red
    Connection
    		 Spade Terminals
    Nominal Voltage
    		 12V

    Product Dimensions

    Length
    		 21mm
    Height
    		 24.6mm
    Width
    		 14.8mm

    Packaged Dimensions

    Packaged Length
    		 11.9cm
    Packaged Width
    		 4.3cm
    Packaged Weight
    		 0.006kg
    Packaged Volume
    		 0.097223l
    Packaged Height
    		 1.9cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SK0969-dataSheetMain.pdf
