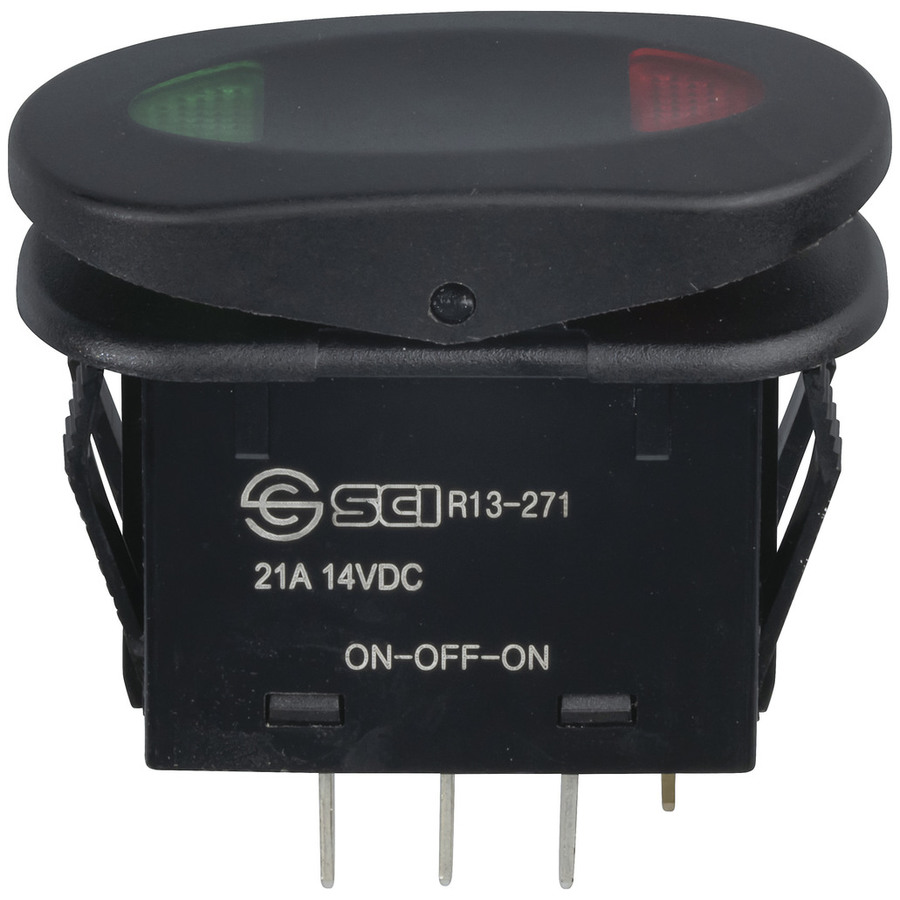

IP65 SPDT Centre Off Rocker Switch Illuminated
IP65 SPDT Centre Off Rocker Switch Illuminated

CAT. No. SK0999

IP65 SPDT Centre Off Rocker Switch Illuminated
product image thumb

IP65 SPDT Centre Off Rocker Switch Illuminated

$19.95
IP65 rated, illuminated switch for automotive and marine applications. Illuminates one side red and one side green.

Please call (02) 4782 6943

Description

IP65 rated, illuminated switch for automotive and marine applications. Illuminates one side red and one side green.

    Specifications

    Electromechanical Switch

    Switch Function
    		 Locking On/Off
    Pole Throw Type
    		 SPDT
    Switch Connection
    		 Spade Terminals
    Switch Type
    		 Rocker
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 2pos
    Switch Colour Coded
    		 Red
    Centre Off
    Mechanism Material
    		 Plastic

    Product Mounting

    Square Mount Hole Width
    		 21mm
    Mounting Method
    		 Panel, Front of Panel
    Square Mount Hole Height
    		 38mm

    DC Voltage Rating

    DC Voltage
    		 14V

    DC Current Rating

    DC current rating
    		 21A

    In-built Illumination

    Type
    		 5mm Standard LED
    Illumination Colour
    		 Green
    Connection
    		 Spade Terminals
    Nominal Voltage
    		 12V

    Ingress Protection Rating

    Dust/Particle Ingress Protection
    		 6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    		 5 - Water jets

    Product Dimensions

    Length
    		 48mm
    Height
    		 27mm
    Width
    		 24mm

    Packaged Dimensions

    Packaged Length
    		 5cm
    Packaged Width
    		 4.5cm
    Packaged Weight
    		 0.023kg
    Packaged Volume
    		 0.05625l
    Packaged Height
    		 2.5cm

    Product Availability

    Availability
    		 Stocked item
