Chrome Bezel with 5mm Green LED
Chrome Bezel with 5mm Green LED

CAT. No. SL2612

Chrome Bezel with 5mm Green LED

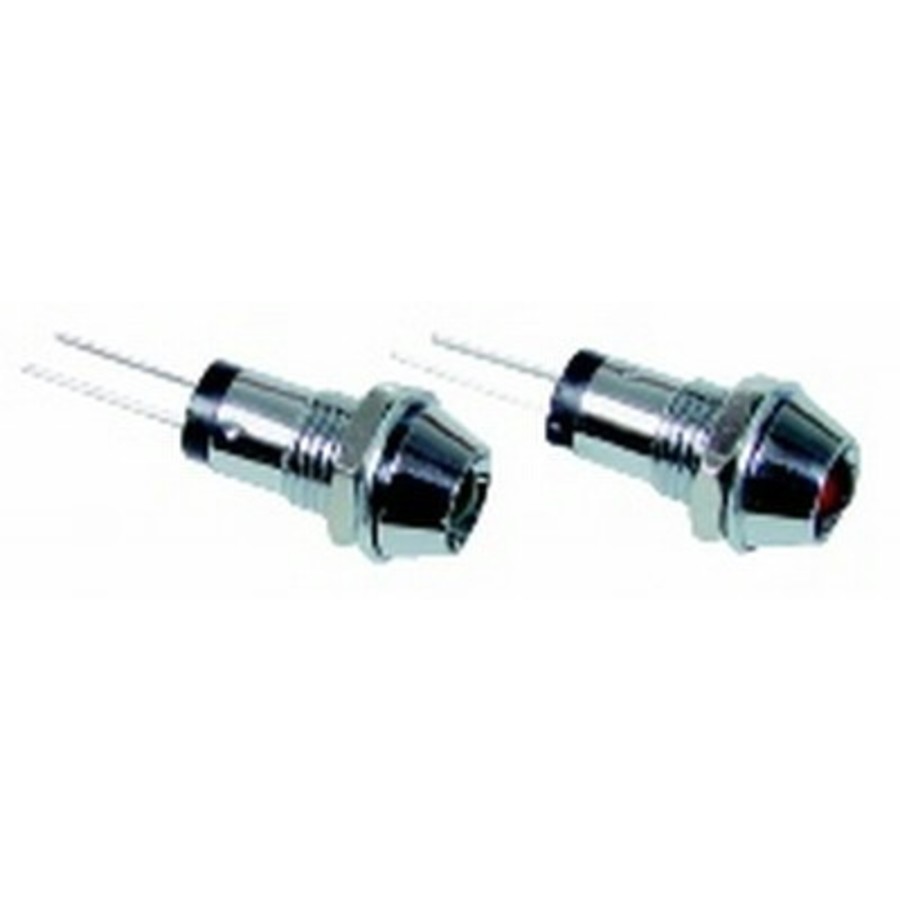

product image thumb

Chrome Bezel with 5mm Green LED

$3.5
- Chrome Housing- Green 5mm LED- 2 volts- 15-30mA- 8mm Panel hole...

Please call (02) 4782 6943

Description

LED

Chrome casing low voltage panel mount LED.

Features:
- Chrome Housing
- 8mm Panel hole

    Specifications

    Product Dimensions

    Diameter
    		 11mm
    Depth
    		 18mm

    Packaged Dimensions

    Packaged Length
    		 3cm
    Packaged Width
    		 1.1cm
    Packaged Weight
    		 0.004kg
    Packaged Volume
    		 0.00363l
    Packaged Height
    		 1.1cm

    LED Components

    Light Colour
    		 Green
    Lens Type
    		 Diffused
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 30mA
    LED Type
    		 5mm Standard LED
    I<sub>f (typ)</sub> - Typical Forward Current
    		 15mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 2V
    P<sub>(max)</sub> - Maximum Operating Power
    		 0.06W

    Active Component

    Active mount type
    		 Panel
    Active case colour
    		 Chrome
    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item

N/A
