Chrome Bezel with 3mm Red LED
Chrome Bezel with 3mm Red LED

CAT. No. SL2615

Chrome Bezel with 3mm Red LED
product image thumb

Chrome Bezel with 3mm Red LED

$3.75

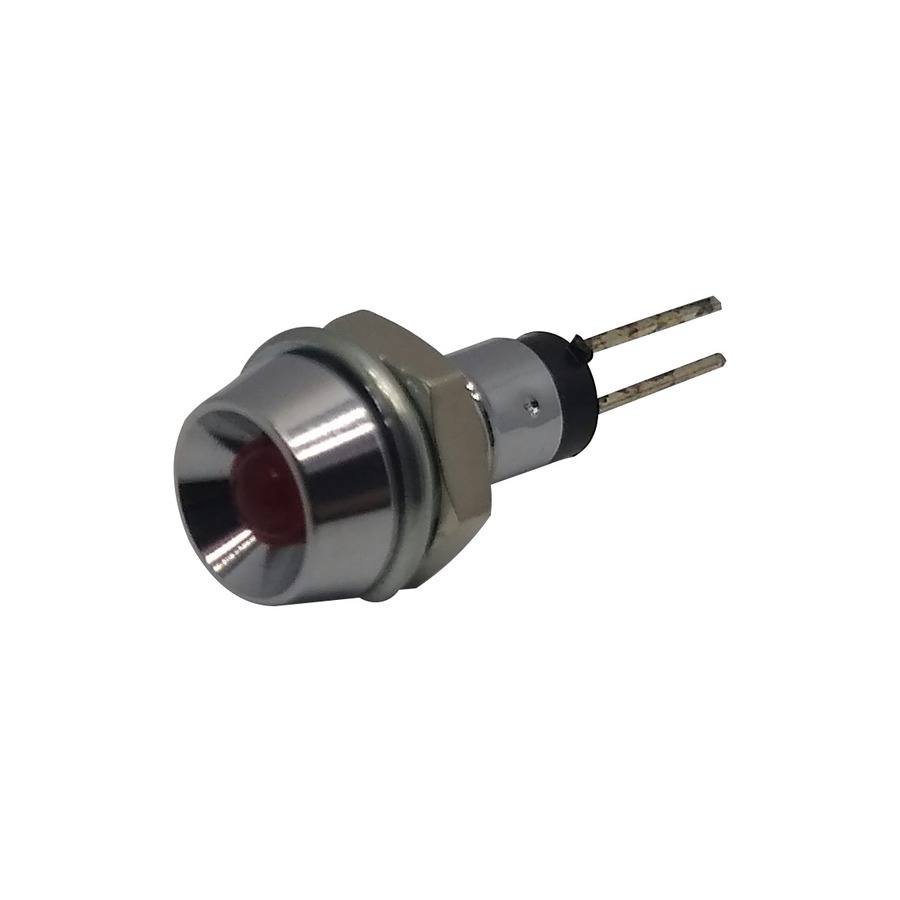

Chrome Bezel with 3mm Red light emitting diode.

Please call (02) 4782 6943

Description

LED

Very classy low voltage panel mount LED with chrome bezel.

Features:
- Chrome Housing
- 5.8mm Panel hole

    Specifications

    Product Dimensions

    Diameter
    		 9mm
    Depth
    		 14mm

    Packaged Dimensions

    Packaged Length
    		 0.5cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 5.75E-4l
    Packaged Height
    		 2.3cm

    LED Components

    Light Colour
    		 Red
    Lens Type
    		 Diffused
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 30mA
    LED Type
    		 3mm Standard LED
    I<sub>f (typ)</sub> - Typical Forward Current
    		 15mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 2V
    P<sub>(max)</sub> - Maximum Operating Power
    		 0.06W

    Active Component

    Active mount type
    		 Panel
    Active case colour
    		 Chrome
    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item
