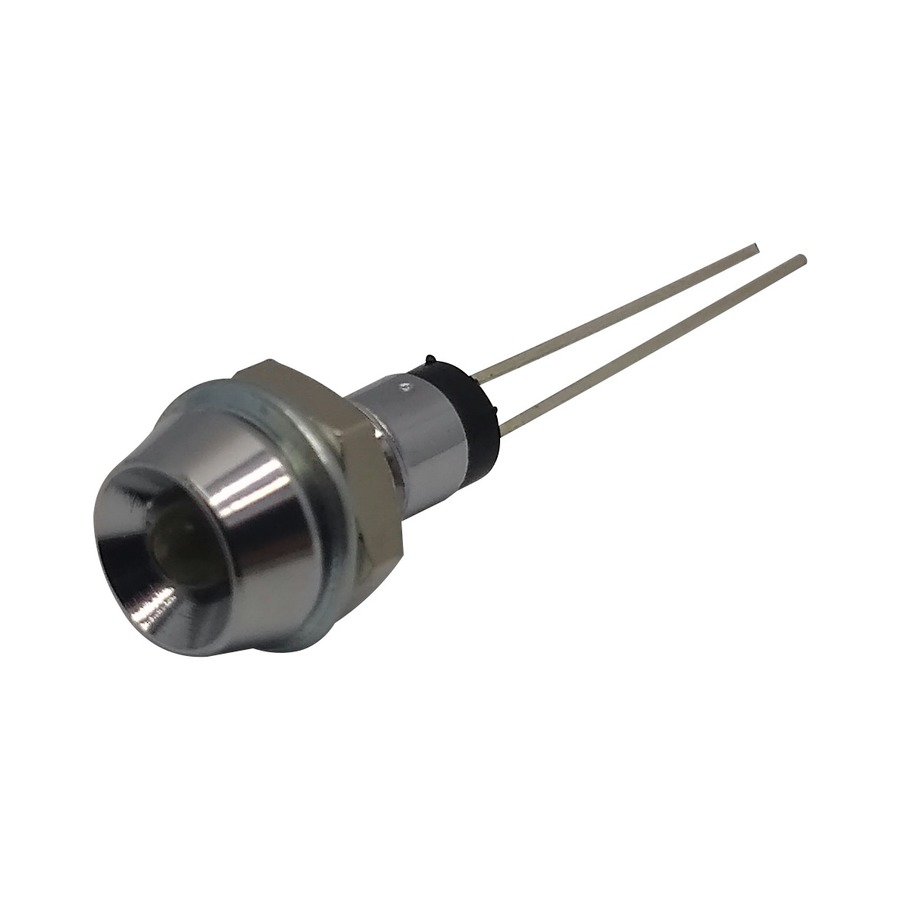

Chrome Bezel with 3mm Blue LED
Chrome Bezel with 3mm Blue LED

CAT. No. SL2617

Chrome Bezel with 3mm Blue LED
product image thumb

Chrome Bezel with 3mm Blue LED

$4.95
Chrome Bezel with 3mm Blue light emitting diode.

Please call (02) 4782 6943

Description

LED

Very classy low voltage panel mount LED with chrome bezel.

Features:
- Chrome Housing
- 5.8mm Panel hole





    Specifications

    Product Dimensions

    Diameter
    		 9mm
    Depth
    		 14mm

    Packaged Dimensions

    Packaged Length
    		 1.3cm
    Packaged Width
    		 0.8cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.00936l
    Packaged Height
    		 0.9cm

    LED Components

    Light Colour
    		 Blue
    Lens Type
    		 waterclear
    Illumination Type
    		 Single Colour
    I<sub>f (max)</sub> - Maximum Forward Current
    		 30mA
    LED Type
    		 3mm Standard LED
    I<sub>f (typ)</sub> - Typical Forward Current
    		 15mA
    V<sub>f (typ)</sub> - Typical Forward Voltage
    		 2V
    P<sub>(max)</sub> - Maximum Operating Power
    		 0.06W

    Active Component

    Active mount type
    		 Panel
    Active case colour
    		 Chrome
    Active connector type
    		 Solder Legs

    Product Availability

    Availability
    		 Stocked item
