CAT. No. SL4020

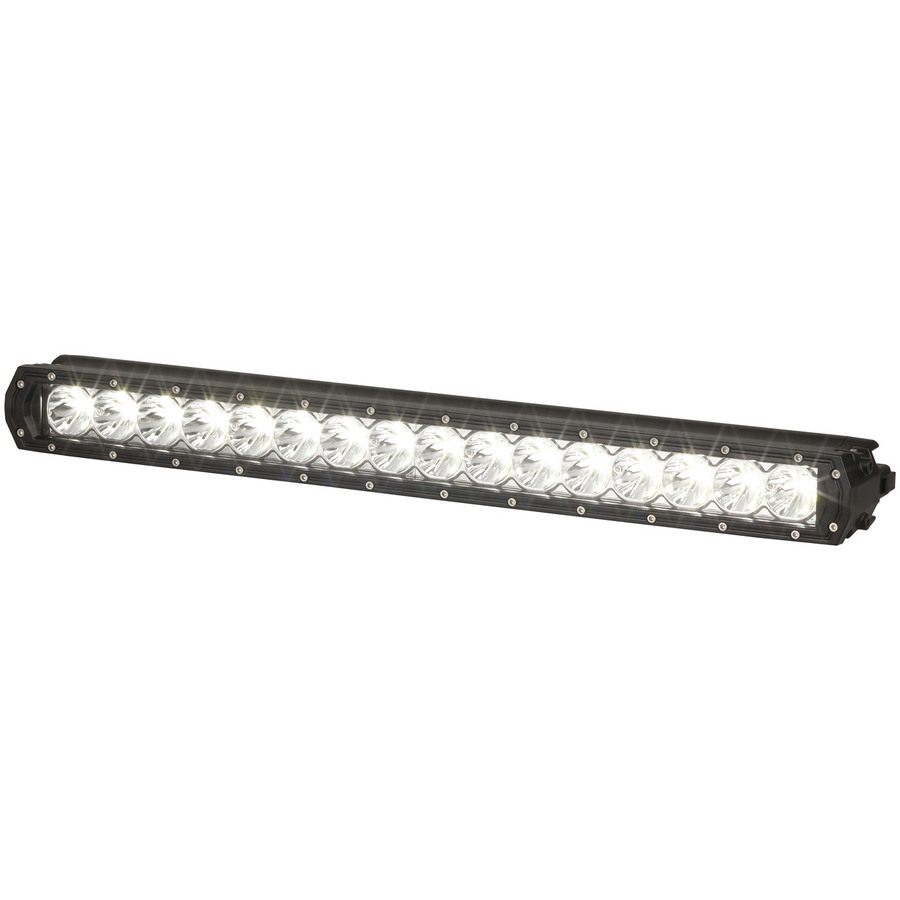

6500 Lumen 21.5 Inch Single Row Solid LED Light Bar
product image thumb
product image thumb
product image thumb

6500 Lumen 21.5 Inch Single Row Solid LED Light Bar

$109
Illuminate the road ahead with this impressive 21.5 inch single row solid LED light bar. - 16 x 5W OSRAM LEDs - 6,500 lumens - Combination Spot and Flood Lens

Please call (02) 4782 6943

Description

LED

6500 Lumen 21.5 Inch Single Row Solid LED Light Bar
Features 16 x 5W OSRAM LEDs, IP68 water and dustproof rating, and suits 12V and 24V systems. Supplied with a steel bracket and mounting hardware. For off-road use only.

• 6000K Colour Temperature
• 70W LED Output Power
• 547(L) x 54(H) x 74(D)mm
• 1.3kg Weight

Also Available:
SL4022 - Wiring Harness to Suit SL4020 Light Bar


Handy Tip How to wire up driving lights

Fitting spotlights or driving lights to your 4WD, ute or other vehicle is generally pretty simple when you use a relay wiring kit like ourSY4081, but it pays to wire it correctly to avoid any hassles with the law. Most states follow the requirements of the Australian Design Rules (ADRs), which requires that they be wired so that they only operate in conjunction with the head light circuit and are fitted with an independent ON/OFF switch – however some states require them to only operate in conjunction with the HIGH beam circuit and with an independent switch. Check with your local transport authorities for rules in your area.

    Specifications

    Product colour


    Colour
    Black

    Operating Temperature


    Operating Temperature
    -40°C-115°C

    Environmental Protection


    Anti-Static

    Outer Material


    Make of outer material
    Aluminimum

    Outdoor Portable Lighting


    Run Time Conditions
    certain things

    Lighting Details


    LED Power
    70W
    Illuminated Colour
    White
    LED Quantity
    16pc
    Colour Temperature
    6000K
    LED Lifespan
    50000hr

    Light Output


    Light Rating Lumens
    6500lm-72lm

    Power from disposable battery


    Battery used for
    Remote Control, Transmitter, Receiver

    Vehicle Lighting


    Light cover material
    Premium PMMA (Poly Methyl Methacrylate)
    Equivalent Halogen Power
    20W
    Light Layout
    Single Row Array
    Beam Pattern
    Combo Flood/Spot

    Vehicle or Vessel Powered


    Required Voltage
    11V-32V

    Ingress Protection Rating


    IP Rating
    IP68
    Dust/Particle Ingress Protection
    6 - Dust tight, no ingress of dust
    Liquid/Moisture Ingress Protection
    8 - Immersion beyond 1m

    Product Dimensions


    Length
    547mm
    Cable length
    130mm
    Height
    54mm
    Depth
    74mm
    Weight
    1.3kg

    Product Availability


    Availability
    Stocked item

    Packaged Dimensions


    Packaged Length
    65.4cm
    Packaged Width
    10cm
    Packaged Weight
    1.704kg
    Packaged Volume
    5.9514l
    Packaged Height
    9.1cm
