Barrel Key Switch - Key Type A
Barrel Key Switch - Key Type A

CAT. No. SM1029

Barrel Key Switch - Key Type A
product image thumb

Barrel Key Switch - Key Type A

$17.95

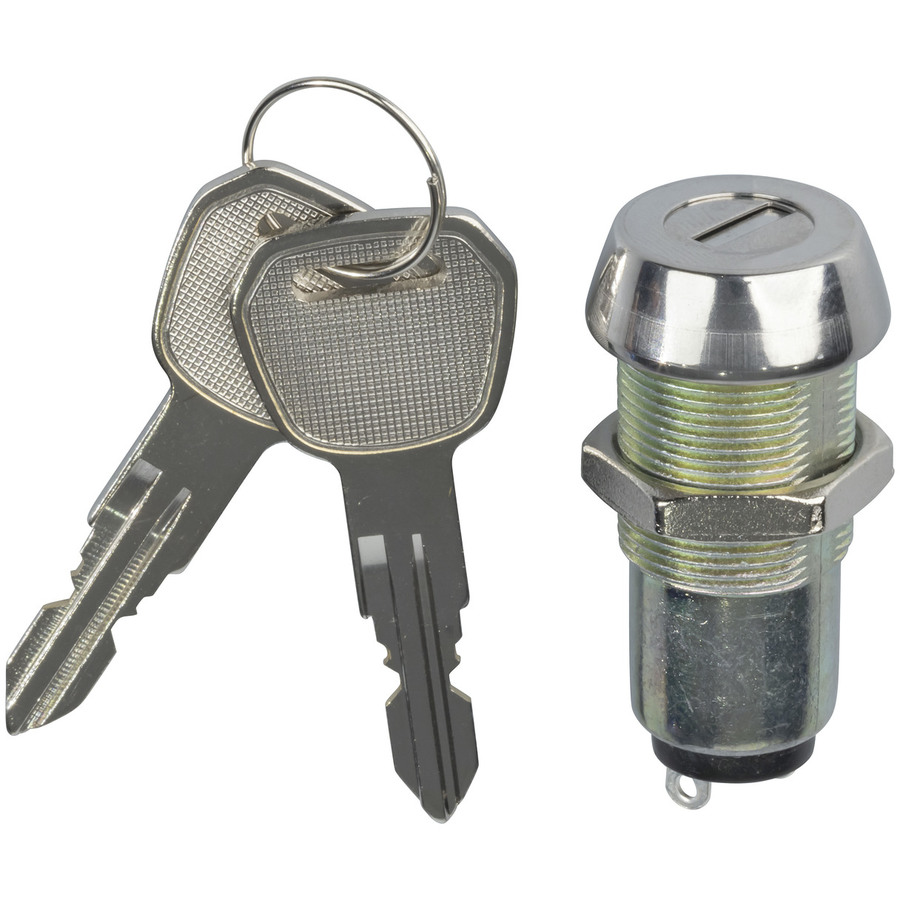

Solid barrel type. 10.5mm mounting hole.SPST actionSupplied with 2 (two) keys.Rated @ 250V 2A...

Please call (02) 4782 6943

Description

Supplied with two keys.

    Specifications

    Electromechanical Switch

    Pole Throw Type
    		 SPST
    Switch Connection
    		 Solder Tags
    Switch Type
    		 Key
    Mechanism Material
    		 Metal

    Product Mounting

    Attachment / Securing Method
    		 Collar / Nut
    Mounting Method
    		 Panel

    AC Voltage Rating

    AC Voltage rating
    		 250V

    AC Current Rating

    AC current rating
    		 2A

    Product Dimensions

    Length
    		 51.6mm
    Height
    		 17.5mm
    Width
    		 25.4mm

    Packaged Dimensions

    Packaged Length
    		 9cm
    Packaged Width
    		 6cm
    Packaged Weight
    		 0.069kg
    Packaged Volume
    		 0.0918l
    Packaged Height
    		 1.7cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SM1029-dataSheetMain.pdf
