CAT. No. SM1030

SPST Keyswitch Standard Type
product image thumb
product image thumb

SPST Keyswitch Standard Type

$17.5

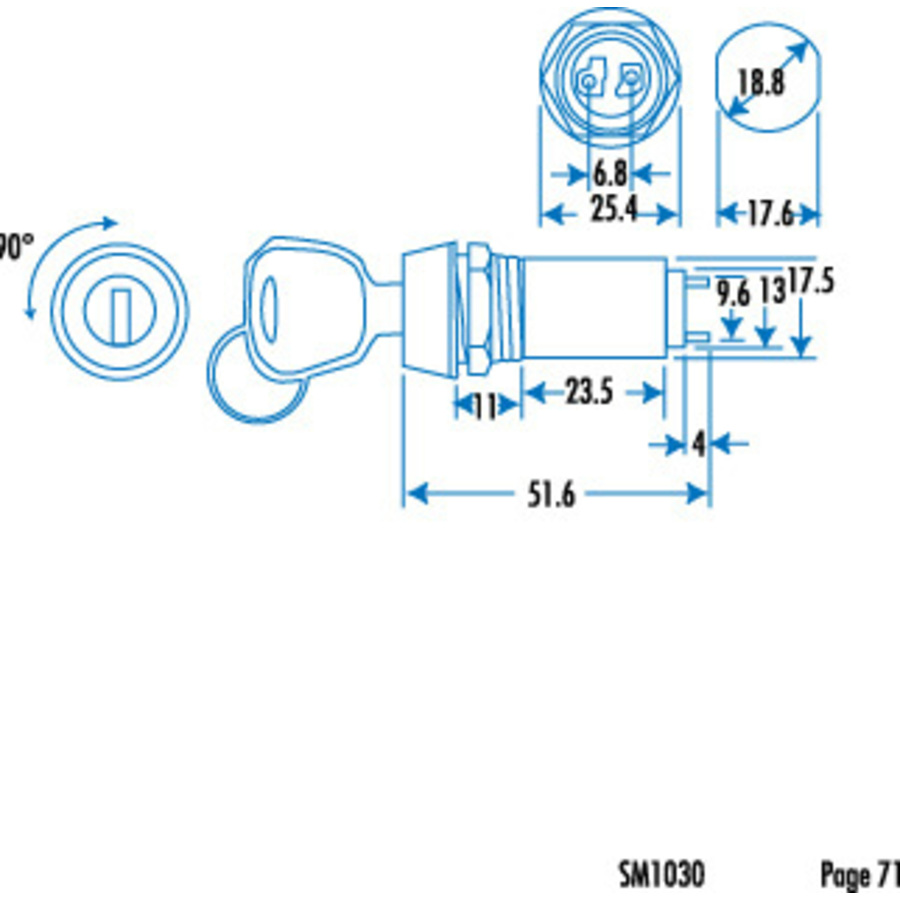

Solid barrel type. 19.5mm mounting hole. SPST action.Supplied with 2 (two) keys.Rated @ 250V 2A...

Please call (02) 4782 6943

Description

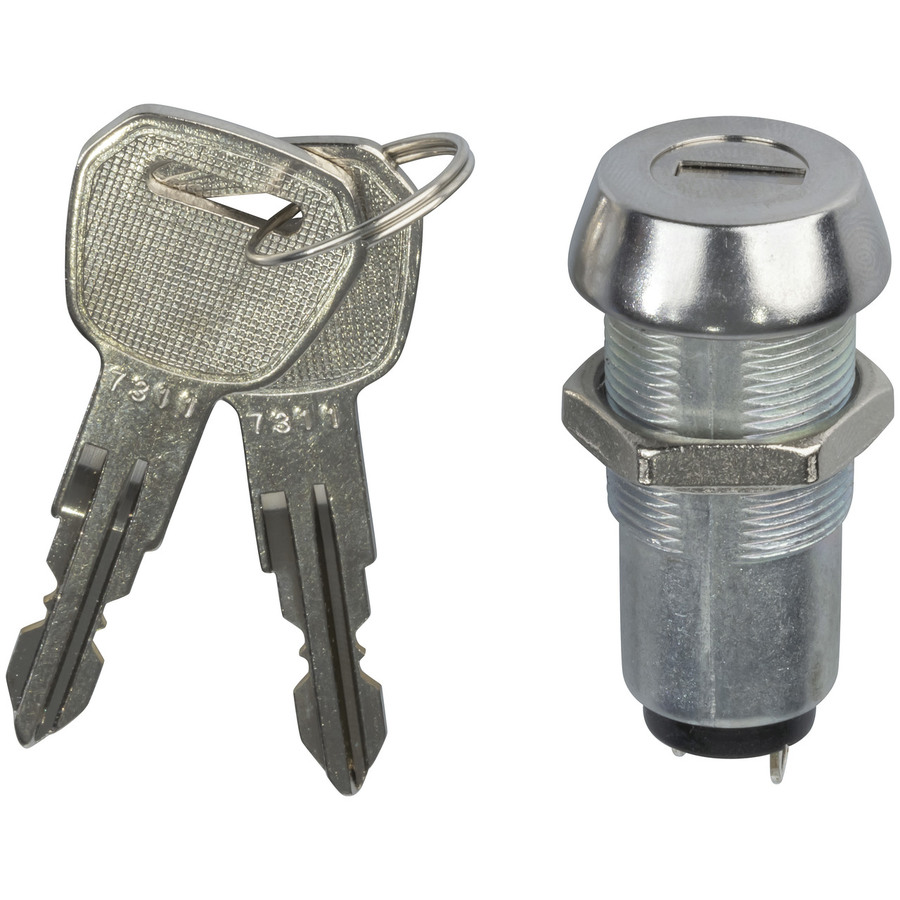

Solid barrel type. Supplied with 2 (two) keys.

    Specifications

    Electromechanical Switch

    Switch Function
    		 Locking On/Off
    Pole Throw Type
    		 SPST
    Switch Connection
    		 Solder Tags
    Switch Type
    		 Key
    Switch Colour Coded
    		 Light Grey
    Mechanism Material
    		 Metal

    Product Mounting

    Attachment / Securing Method
    		 Collar / Nut
    Mounting Method
    		 Panel

    AC Voltage Rating

    AC Voltage rating
    		 250V

    AC Current Rating

    AC current rating
    		 2A

    Packaged Dimensions

    Packaged Length
    		 8cm
    Packaged Width
    		 2.5cm
    Packaged Weight
    		 0.069kg
    Packaged Volume
    		 0.05l
    Packaged Height
    		 2.5cm

    Product Availability

    Availability
    		 Stocked item
