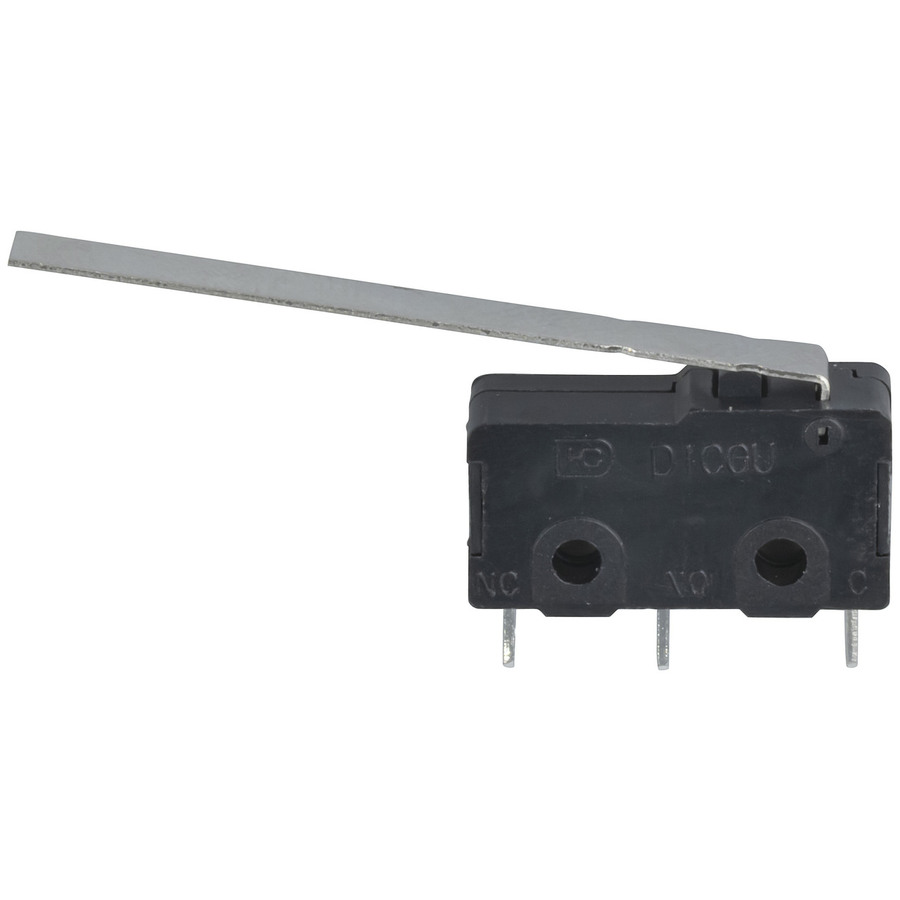

SPDT 250V 3A Miniature Micro Switch with Lever
SPDT 250V 3A Miniature Micro Switch with Lever
SPDT 250V 3A Miniature Micro Switch with Lever

CAT. No. SM1038

SPDT 250V 3A Miniature Micro Switch with Lever
product image thumb
product image thumb

SPDT 250V 3A Miniature Micro Switch with Lever

$5.95
Standard sized 250V 3A micro switch with lever - Solder tag connection - Lever arm for easy triggering from actuating mechanism

Please call (02) 4782 6943

Description

SPDT ON-ON. Actuator length 37.5mm.

    Specifications

    Electromechanical Switch

    Switch Function
    		 Single Action Momentary
    Switch Connection
    		 Solder Tags
    Switch Type
    		 Micro
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 2pos
    Switch Colour Coded
    		 Black
    Actuator Width
    		 9.8mm
    Actuator Length
    		 20mm

    AC Voltage Rating

    AC Voltage rating
    		 250V, 125V

    AC Current Rating

    AC current rating
    		 3A, 5A

    Packaged Dimensions

    Packaged Length
    		 1.5cm
    Packaged Width
    		 0.7cm
    Packaged Weight
    		 0.002kg
    Packaged Volume
    		 0.004515l
    Packaged Height
    		 4.3cm

    Product Availability

    Availability
    		 Stocked item

    Downloads

    SM1038-dataSheetMain.pdf
