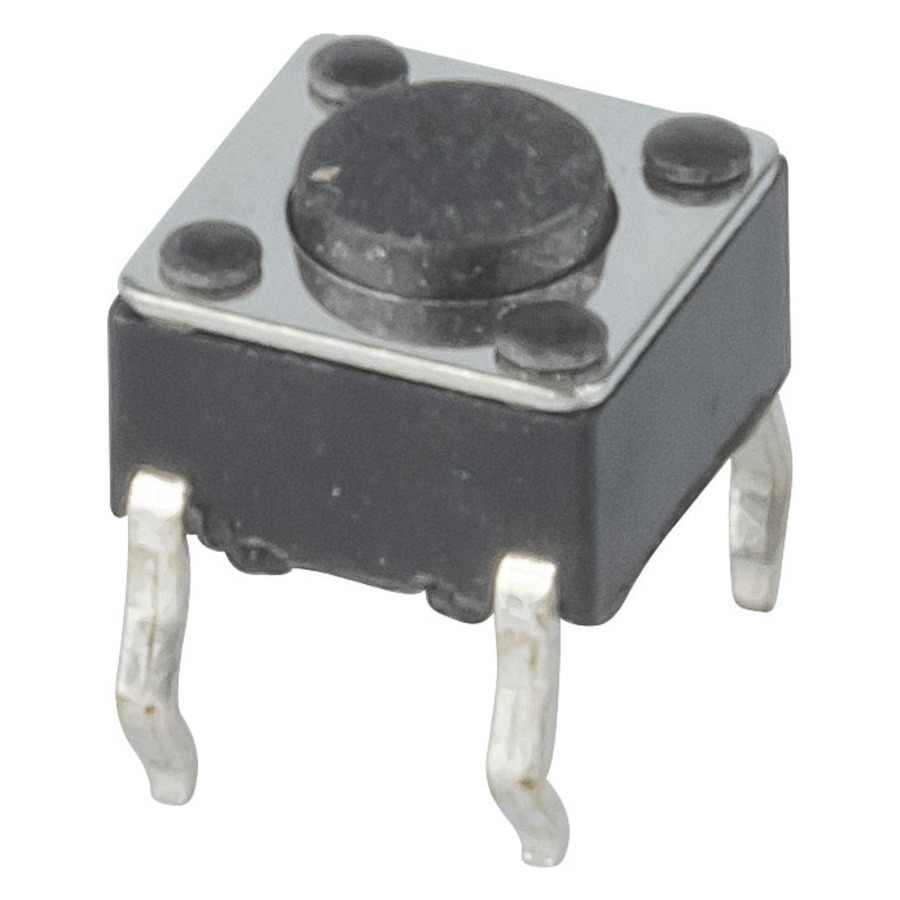

0.7mm SPST Micro Tactile Switch
0.7mm SPST Micro Tactile Switch

CAT. No. SP0600

0.7mm SPST Micro Tactile Switch
product image thumb

0.7mm SPST Micro Tactile Switch

$1.2
- Rating: 12VDC 50mA- Operating Temp: -20~70°C- Contact Resistance: 100mOhm Max.- Insulation Resistance: 100mOhm Min. at 100VDC- Withstand Voltage: 25...

Please call (02) 4782 6943

Description

Normally open SPST micro tactile switch.

    Specifications

    Electromechanical Switch

    Actuator Diameter
    		 3.4mm
    Dielectric Strength
    		 100V
    Switch Connection
    		 PCB Pins
    Switch Type
    		 Tactile Pushbutton
    Switch Colour Coded
    		 Black
    Mechanism Material
    		 Plastic
    Switch Function
    		 Single Action Momentary
    Pole Throw Type
    		 SPST
    Poles / Contacts
    		 1 pole
    Throws / Positions
    		 1pos
    Contact Resistance
    		 100m?
    Insulation Resistance
    		 100m?
    Actuator Height
    		 0.7mm

    Product Mounting

    Pin Spacing Depth
    		 6mm
    Pin Spacing Width
    		 6mm
    Mounting Method
    		 PCB

    DC Voltage Rating

    DC Voltage
    		 12V

    DC Current Rating

    DC current rating
    		 50mA

    Product Dimensions

    Length
    		 6mm
    Height
    		 3.2mm
    Width
    		 6mm

    Packaged Dimensions

    Packaged Length
    		 0.5cm
    Packaged Width
    		 0.5cm
    Packaged Weight
    		 0.001kg
    Packaged Volume
    		 0l
    Packaged Height
    		 0.6cm

    Product Availability

    Availability
    		 Stocked item
